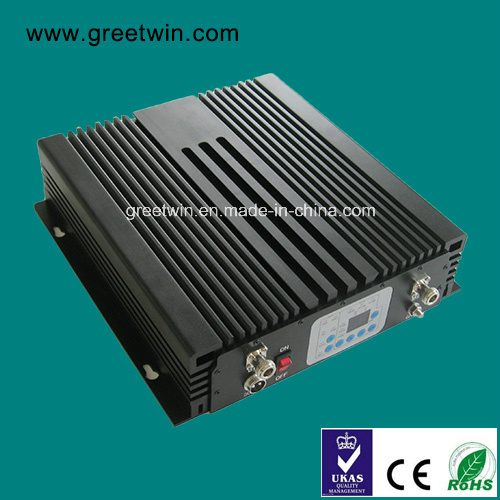

15dBm 1800MHz Digital Repeater/Signal Repeater/Signal Booster (GW-15DRD)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
GW-15DRD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gain:80db: |
Digital RF Repeater |
| Type: |
Signal Repeater |
| Transmission Medium: |
Cable |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
CE |
| Condition: |
New |
Product Description
15dBm 1800MHz Digital Repeater/Signal Repeater/Signal Booster (GW-15DRD)Model:
GW-15DRD
Features:
· High gain linear power amplifier technique with reliable performance
· In-built AGC & ALC function be able to ensure easy installation without setting.
· Compact size and light weight, easy to install on wall or pole
· Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
· Support SNMP and Web-based GUI.
· RS232 or RJ45 ports provide links to laptop for local setting and monitoring by built-in web interface.
· Built-in wireless modem (Option) for remote monitoring by SMS, GPRS or TCP/IP.
· Details repeater parameters and status can be monitoring by built-in web interface, such as RSSI, temperature, output power level, gain, ATT, return loss, VSWR etc.
Digital Repeater is a new kind of RF Repeater that is adopting DSP (Digital Signal Processing) technology basis on FPGA platform, highly linear components and unparalleled innovative DSP filtering provide top level performance. Digital Repeater can be selected as Band Selective or Channel Selective operation mode, which supports up to 12 channels both on uplink and downlink. Using an advanced ALC mechanism, each one of the channels has an individual gain and ALC setting.
Application:
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
· Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots.
| Item | 1800 MHz |
| Pico |
| DL | |
| Repeater type | Digital Filter Repeater (DFR), minimum 3 sub slot band |
| Frequency Work | 1805 - 1880 MHz (20 MHz freq window) |
| Input port repeater max | -65 dBm |
| Output port repeater max | 15 dBm |
| Gain max | 80 dB |
| Power Adjustment | 31 step / 1 dB |
| Isolation Min (dB) | 83 |
| | |
| UL | |
| Repeater type | Digital Filter Repeater (DFR), minimum 3 sub slot band |
| Frequency Work | 1710 - 1785 MHz (20 MHz freq window) |
| Input port repeater max | -75 dBm |
| Output port repeater max | 5 dBm |
| Gain max | 80 dB |
| Power Adjustment | 31 step / 1 dB |
| Isolation Min (dB) | 83 |
| | |
| VSWR | 1.1<=x<1.4 |
| Inter-modulation | Max -37dbm or -80dbc |
| Spurious Emission | Max -37dBm at +/- 750 kHz |
| I/O Impedance | 50 ohm |
| Noise Figure | Max 5dB |
| Group Time Delay | Max 4µS |
| Temperature Range | -25 degree Celsius to +55 degree Celsius |
| Relative Humidity | Max 95% |
| MTBF | Min. 100000 hrs |
| | |
| Connector Type | SMA-female w/ additonal adaptor SMA-male to N-female |
| ICS | No |
| ALC | Yes |
| AGC | Yes |
| AGC Control Range | Min 40dB (+/-1dB) |
| Gain Control Range | 31 step (1dB Step) |
| | |
| NMS based on Data service (include modem (2G/3G or 2G only (GSM/DCS or GSM only)*)) | No |
| GUI | Yes |
| | |
| Power Consumption | 25 W |
| Power Supply Type | Switching Regulator |
| UPS with casing (IP 65, repeater inside) | No Need |
| UPS Capacity | - |
| | |
| Antenna system (include accessories) | |
| Donor | |
| Type | Yagi (pig tailed N-female 30 cm) |
| Gain | > 10 dBi |
| Pole antenna (Ø 2" aluminium include bracket) | |
| Serving | |
| Type | Mounted/Spliting |
| Gain | > 3 dBi |
| Pole antenna (Ø 5" aluminium include bracket) | - |
| | |
| Installation part | |
| Cable RG8 length | 80 m |
| Connector N-male RG8 | 10 pcs |
| MCB with box | No need |
| Power cable 3wire w/ stop contact | 10 meter |
| Installation local material (ties cable, rubber, isolatif 3M, sticker Isat, cable clamp etc) | 1 package |
Shenzhen Greetwin Technology Co., Limited is one of the leading suppliers which specializes in designing and manufacturing RF Jamming Equipment and Wireless Coverage Products.
Wireless Coverage Products include RF Repeater.
The RF Repeater solutions will bring smooth and clear calls, support all bandwidths and mobile standards including TETRA, iDEN, GSM850, EGSM, GSM900, DCS1800, PCS1900, CDMA800, CDMA450, LTE 4G, CDMA2000, 3G(WCDMA) as well as TD-SCDMA series.
Such as, Wide band Repeater, Band selective Repeater, Channel selective Repeater, Frequency-shifting Repeater, Fiber Optic Repeater, Digital ICS Repeater, TMA, TMB, Micro Repeater, Consumer Signal Booster.
We are committed to providing the best solutions for mobile operators, offering OEM and ODM service. Products can be customized according to different operators in the world and the output power are available from 0.01W to 200W.
Comprehensive repeater will supply optimizing solutions for vehicle, office, commercial center, countryside, tunnel, Mountain. etc.
RF Jamming Equipment include Cell Phone Signal Jammer and RF Communication Jammer(20-6000MHz).
GREETWIN is the foremost innovator in the field of RF jamming, offering a comprehensive range of jamming equipment and systems which have a proven record of reliability and performance in all types of applications and environmental conditions.
In countering the ever-growing threat of remotely controlled improvised explosive devices (RCIEDs), we has invested heavily in the development of a range of multi-band, very-high-power jamming systems for the protection of troop transportation, military and police checkpoints, large governmental establishments, bomb disposal squads and VIP convoys.
Such as, High power bomb jamming devices, Military IED jammers, Digital programable jammer, VIP Convoy Bomb Jammers (RCIED Jammers), Mobile Phone Signal Jammers, Prison Jammers, Portable Jammers, Handheld Jammers, to suit all types counter terrorism activities.
Our clients are government agencies, military, SWAT team, prison, school, bank, law enforcement and VVIPs. We also serve corporations and private individuals who must take responsibility for protecting assets, proprietary information, executives and family members.
GREETWIN products have been exported to more than 60 countries and regions around the world. Such as Southeast Asia, Africa, Europe, South America and the Middle East.
