15kv -33kv Pin Porcelain Insulators (BS)

Name: 15kv -33kv Pin Porcelain Insulators (BS)
Brand: all-electronics-online.com
SKU: 826007615
Availability: InStock
Rating: 4.7 (73 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Pw-11-Y
Porcelain Insulators:	Strain Insulator
Application:	High-voltage
Material:	Porcelain
Structure:	Strain Insulator
Type:	B Type Insulator
Color:	Brown
Brand:	Haivol

Product Description

Specifications
15kv -33kv Pin Porcelain Insulators
1.Standards:BS
2.Certificates:ISO9001:2008
3.ceepage distance: 432/673/851mm
4.best use

Pin Porcelain Insulator
•Material: Porcelain
•standard: BS
•ANSI class: Pw-11-Y,Pw-22-Y ,Pw-33-Y
•characteristics is following table:

Cat NO				A1005	A1006	A1007
Fig				1	1	2
Class BS				Pw-11-Y	Pw-22-Y	Pw-33-Y
Main Dimensions (mm)	H			185	255	320
	h			52.63	52.63	52.63
	D			170	205	230
	d			76	76	76
	d 1			27.78	27.8	27.8
	R1			16	16	16
	R2			16	16	16
Nominal Voltage(kv)				15	22	22
Creepage Distance(mm)				432	673	851
Minimum Flashover Voltage		Power-frequency	Dry	100	125	140
		Power-frequency	Wet	65	95	110
		50% Impulse Positive(kv)		150	190	210
Withstand Voltage		One minute power-frequency	Dry(kv)	90	110	125
		One minute power-frequency	Wet(kv)	60	90	100
		Impulse		140	180	200
Radio-influence-voltage Data		Test Voltage to Ground(kv)		22	30	44
Radio-influence-voltage Data		Maximum RIV at1000Khz(uV)		12000	16000	25000
Cantilever Failing Load(kn)				11	11	11
Weight (kg)				5	10	13

Haivo Electrical Co., Ltd, is a provider of power equipment and services for the global electric utility industry. It mainly manufacture power transmission & distribution equipments, covering many product series as Fuse cutout, Surge arrester, Composite & Porcelain insulator, Disconnector switch & Load Break Switch, Hardware fitting for overhead line, Cable accessories and Cable kits (cold & heat shrinkable cable accessories).

HAIVO ELECTRICAL, As one of the international electrical companies in China, We not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, HAIVO conducts business in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. HAIVO′ S high standards have received due recognition from the local power customers.

HAIVO′ S worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

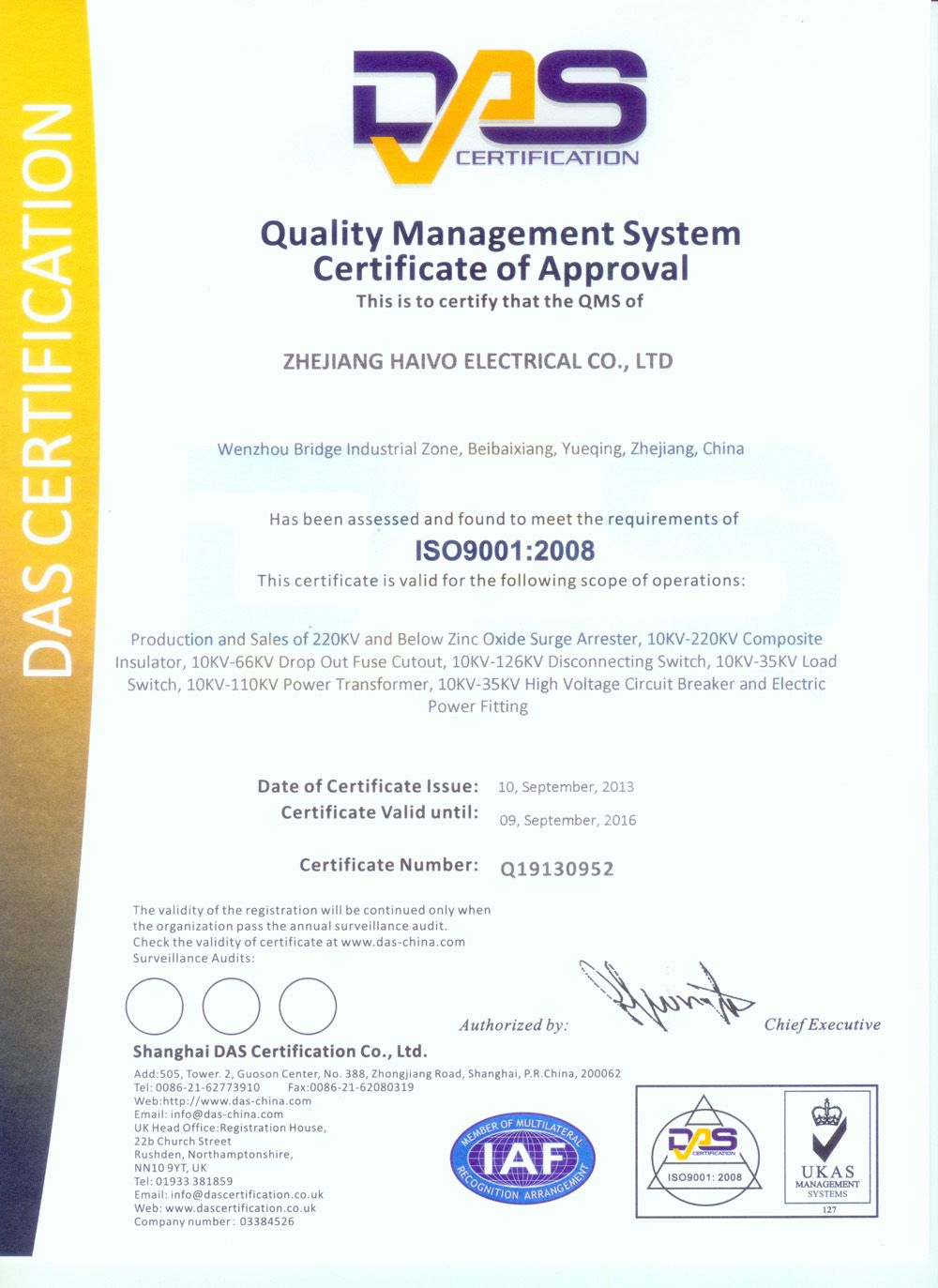

For the quality control system, HAIVO was successively awarded ISO 9001: 2008 by DAS CERTIFICATION Ltd & UKAS QUALITY MANAGEMENT, and TYPE TEST REPORT by China NATIONAL HIGH VOLTAGE APPARATUS QUALITY SUPERVISION TESTING CENTER(XIHARI) & QUALITY INSPECITION AND TEST CENTER FOR EQUIPMENT OF ELECTRIC POWER.

We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
