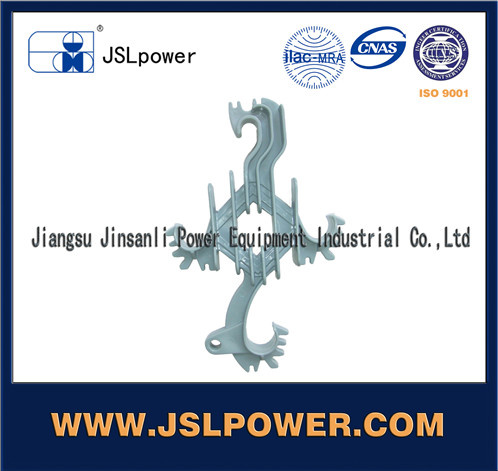

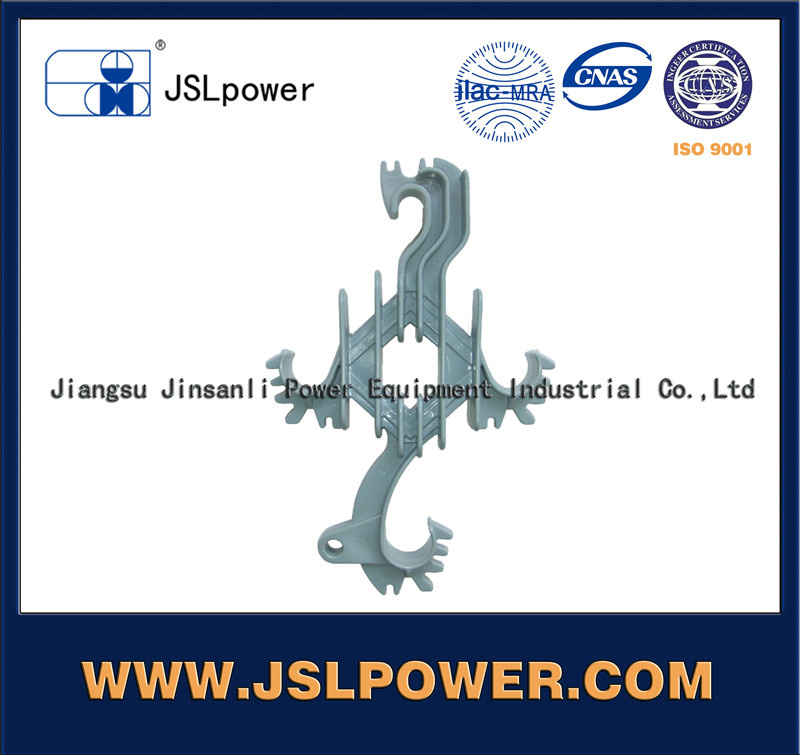

15kv HDPE Modified Polyethylene Cable Spacer

Prod Model:	JHW-15CS-02
Attribute:	Durable Quality
Application:	High-temperature
Type:	A Type Insulator
Material:	Modified Polyethylene
Structure:	Spacer
Connection Method:	Suspension
Size Of Bearing Capacity:	4kn
Color:	Gray
Brand:	Jslpower

Product Description

Specifications

About the HDPE cable spacer

It's Hard Materials different from the silicone insulator.

Also called:Modified polyethylene cable spacer or High-Density polyethylene cable spacer.It's a new material for transmission line cable spacer.It's suits for polluted area or salty coastal area in tropical zone.Mainly applied in electrical syetem of 15kV,22kV and 35kV.


Characteristics
1.Unbreakable and light weight
2.Easiest handing and transportation
3.Water repelling surface
4.Long service life
5.Non-toxic,non-standing and recyclable


15kV Modied Polyethylene Cable Spacer With Advanced Technology



Main Dimensions and Standard Particulars
Rated Voltage of system Line to Line up to		15kV
Electrical Characteristics	Under Rain Frequency	34kV
	Dry Atmosphere	110kV
Mechanical Characteristics	Ultimate mechanical strength	4500N

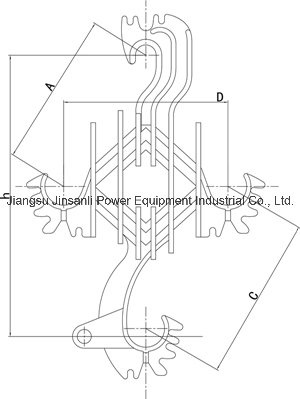

Main Dimensions(mm)	D	175
	A	165
	h	300
	C	175
Weight(kg)		0.55
Qty(pcs)/Ctn		11

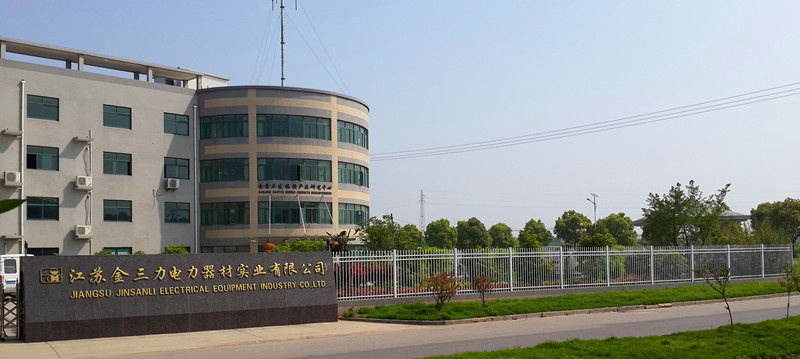

                                           Jiangsu Jinsanli Power Equipment Industrial Co., Ltd
Jiangsu Jinsanli Power Equipment Industrial Co., Ltd. is a scientific and technological enterprise of Jiangsu Province engaging in research, development, manufacture, and sale of rubber damping parts,rubber insulator,hdpe(modified polyethylene) insulator,hdpe cable spacer. Since its establishment, it has developed various rubber and plastic auxiliary products applicable to military, electrical engineering, smart power grids and hydraulic engineering fields. With excellent quality, products of the company are well received by various large and medium-sized enterprises. Technical personnel of the company has experience in taking refresher courses and learning manufacture and processing of rubber products in Japanese NOK company and has obtained technical grade certificates on rubber products manufacture and processing issued by Japan. The company mainly manufactures over 500KV super damping rubber spacer. Besides, through matching up with products of hardware fittings manufacturers of power industry, products of the company are widely applied to key electric power construction projects of China. Based on its existing production scale, the company expands rapidly through introducing lots of advanced equipment, which makes its production capacity can satisfy demand of various large-sized power enterprises on rubber dampers used for 500KV to 1000KV extra-high voltage transmission lines. With continuous improvement of technology, the company has manufactured insulator products used for 10KV to 220KV transmission lines and power transformation engineering and meeting ANSI standard by using advanced polymer(hdpe) technology. What's more, the company constantly improves product quality through technology innovation to standardize, refine, process and scientize the company, so that to further research, develop and manufacture more high-quality and rational-price products to meet demand of domestic and foreign enterprises.

We are manufacturer , welcome to visit, if you have any requriements for HDPE Cable spacer design or size, please contact us,If you want to know about the other electrical insulators please Copy:   http://jslpower.en.made-in-china.com/   and come to visit our company website.
