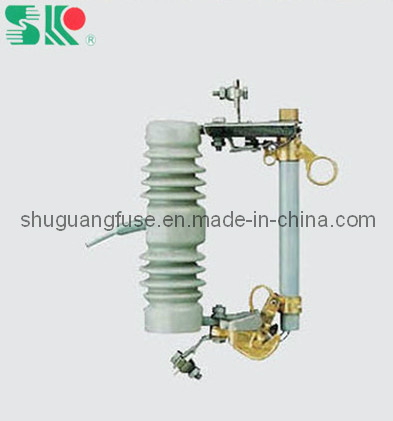

15kv High Voltage Cut out Fuse (RW12, XM-9)

Name: 15kv High Voltage Cut out Fuse (RW12, XM-9)
Brand: all-electronics-online.com
SKU: 701063865
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RW12, XM-9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain
Rated Voltage:	15kv
Rated Current:	100A, 200A
Breaking Current:	6300A, 12500A
Impulse Voltage:	125 Bil
Leakage Distance:	330mm
Operation:	Electric Type
Installation:	Insert
Speed:	High
Structure:	Automatic
Breaking Capacity:	High Voltage
Type:	Cutout Fuse
Usaga:	Electric Equipment Transformer Protection
Shape:	Tubular
Standard:	IEC282-1 GB15166.2

Product Description

15KV high voltage porcelain Drop out Fuse is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. XM-9 series mainly protect transformer or lines from short circuit and over load, and on/off loading current.

Type	Rated voltage (KV)	Rated current (A)	Breaking current (A)	Impulse voltage (BIL)	Power-frequency withstand voltage (KV)	Leakage distance (mm)	Weight (KG)	Dimensions
XM-9	15	100	6300	125	45	330	8.8	453513
XM-9	15	200	12500	125	45	330	9.3	453513

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
