| Prod Model: |
usb cable |
| Application: |
Computer |
| Interface Type: |
USB |
| Material: |
Copper |
| Pin: |
4Pin |
| Feature: |
Waterproof |
| Power Cable Type: |
Two-pin |
| Shape: |
Round |
| Computer Cable Type: |
Data Line |
| Printer Cable Type: |
USB |
| Color: |
Black |
Product Description

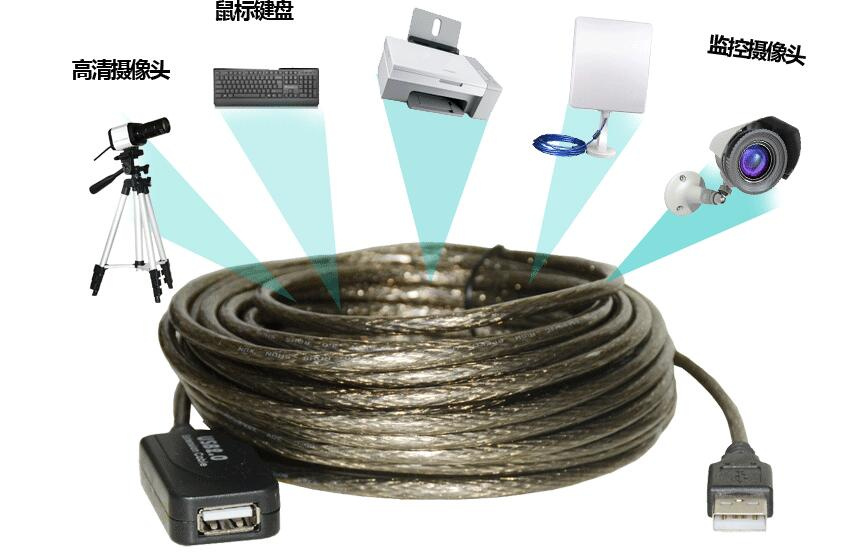

15m USB 2.0 Active Extension Cable With RepeaterLong USB Extension Cable
This long USB 2.0 extension cable allows you to extend any USB or USB 2.0 cable with ease! The universal fit makes it great to mate with any USB A Plug, guaranteed.
Tethered Shooting (Photography)
We've had several photographers come to us who want to shoot tethered, but a 15ft cable just isn't enough to shoot around their subject comfortably. These longer extensions are the perfect mix, combined with any of our cables works perfectly, especially with our angled mini-b cables (link), which take the stress off of the port in your camera, which means reducing expensive repair costs. We are recommended by support engineers at most major camera manufacturers.
Works great with interactive white boards
We've found that AV installers can easily fish it through conduit and install it into classrooms for AV equipment, including interactive white boards such as the Smart Board. You can also daisy chain them with up to 4 inline. At that distance, however, we do recommend our version with the powered hub (link) at the end to be sure you can power your whiteboard!
Works with all speeds
Some extenders using Cat 5 or Fiber can limit the speed of USB device that can be used (low speed 1.5Mbps such as keyboards, full speed such as cameras 12Mbps, and hi-speed such as hard drives and almost all newer items 480Mbps). This long USB 2.0 Extension works with all of them.
| USB Compliant | USB 1.1 and 2.0 Compatible |
| Connector Type | USB Type A Male, USB Type A Female,USB Type B Male,Can be optional |
| Connectors | The repeater cable features gold-plated connectors that resist corrosion for signal purity(nickel plated is optional) |
| Cable Spec | 28/24 AWG |
| Conductor | Oxygen free copper conductor, better signal transmission and long-time using |
| Triple shield | twisted pair conductor, Al foil and braid; better signal transmission |
| Cable Length | 5 meter/16ft,10 meter / 32ft,15meter/49ft,20meter/64ft,length can be optional |
| Transfer Rate | 100/200/480 Mbps |
| Usb Distance Limitation | ideal For Connecting Enclosures & Other Peripherals |
| Built-in repeater | helps maintain Hi-Speed USB signal quality, electrical and timing specifications |
| Compatibility | Windows 7, Vista, XP, 2000, ME, 98SE |
| Mac OS |
| Linux |
| No drivers required on any OS |
• Data Signal Specifications - USB 2.0
• Maximum Data Transfer Rate - 480Mbps
• USB Power Consumed - 100mA
Cable Specifications
Conductor (Qty 1 pair)
• Conductor Type - 28AWG (7/0.120), Tinned Copper
• Colors: (white, green)
Conductor (Qty 2 conductors)
• Conductor Type - 22AWG (7/0.254), Tinned Copper
• Colors - (1) red, (1) black
Physical Characteristics
Connector (Qty 2)
• Connector Type - USB Type A Male
• Contact Plating - 30Ωm Gold Plating
• Insulation - Black PBT
• Voltage Rating - 30V
• Temperature Rating - 80°C
• Hood Material - SR - Molded Black PVC
• Plastic Cover Material - Black ABS
• Plastic Cover Dimension - 78.0 x 28.0 x 18mm
• Weight - 0.346kg
Overall Cable
• Foil Shields - Aluminum Mylar, 100% coverage min.
• Braided Shield - 16/4/0.100, Tinned Copper, 65% coverage min.
• Jacket - PVC, black
• Outer Diameter - 5 ± 0.1mm
