15V 6W Brushless DC Motor with CE, RoHS, ISO 9001 Certification

Name: 15V 6W Brushless DC Motor with CE, RoHS, ISO 9001 Certification
Brand: all-electronics-online.com
SKU: 768468095
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 9-16/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JK28BLS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body Color:	Black & Silver
Rated Voltage:	15/24V
Rated Power:	6-16W
Rated Speed:	3700-10000rpm
Resistance:	4-8ohm
Inductance:	2-3.5mh
Body Length:	26-77mm
Motor Weight:	0.06-0.28kg
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Certification:	CE and RoHS
Brand:	Jk

Product Description

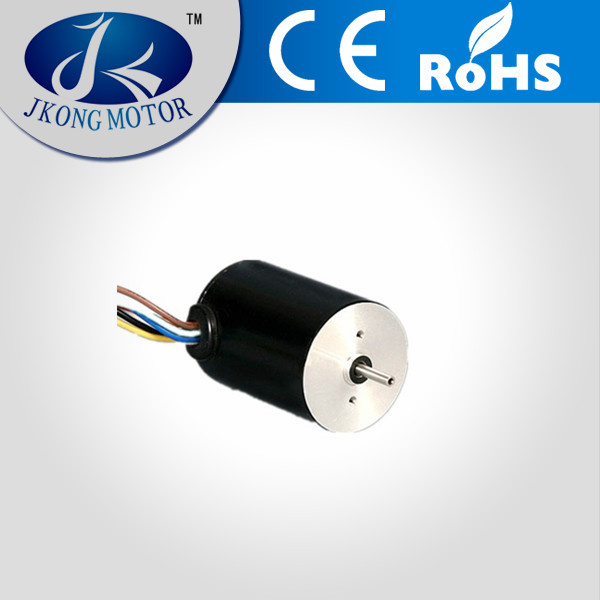

15v 6w Brushless dc Motor with CE,ROHS,ISO 9001 Certification

General Specificxations:

GENERAL SPECIFICATIONS	ELECTRIC CONNECTION
Winding type	Star
Hall effect angle	120 degree electrical angle
Shaft run out	0.025mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max. radial force	10N @ 10mm from the flange
Max. axial force	2N
Insulation class	Class B
Dielectric strength	500VDC for one minute
Insulation resistance	100MΩMin., 500VDC

Electric Specifications:

MODEL	JK28BL26	JK28BL38	JK28BL77
Number of poles	4	4	4
Number of phase	3	3	3
Rated voltage VDC	15	24	24
Rated speed RPM	8000	10000	3700
Continuous stall torque mN.m	8.4	17	60
Rated torque mN.m	7	14.12	50
Rated power W	6	14.78	16
Peak torque mN.m	21	42.4	150
Peak current A	2.5	2.8	3
Line to line resistance ohms	8	4.63	4.67
Line to line inductance mH	2	3	3.5
Torque constant mNm/A	13.7	16	50
Rotor inertia g.cm²	1.23	2.12	5.98
Body length mm	26	38	77
Mass Kg	0.06	0.082	0.28

Applications:

Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Company Show:

Depending on advanced technology and knight service,our JKONGMOTOR & Electric Appliance CO.,LTD has established a excellent team and maintain a good business relationship with a large amount of clients in global market.

Choosing JKONGMOTOR, we will have a win-win relationship.

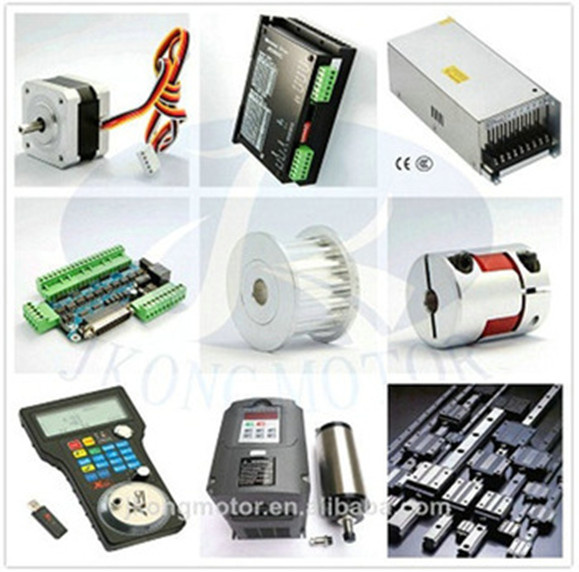

We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..

FAQ:

1.What's the delivery time?

For samples, 7-10 days For batch, 15-25days

2.How about modes of transportation?

Maritime Transport, Railway transport, Air transport

3.How are the quantities of your products?

Every product will be fully assembled and carefully tested before it's packed for shipment

4.Do you receive customization?

We accept customization. We will try our best to meet customer's requirements.

Contact Person: Alice

Tel: 0519-88372558

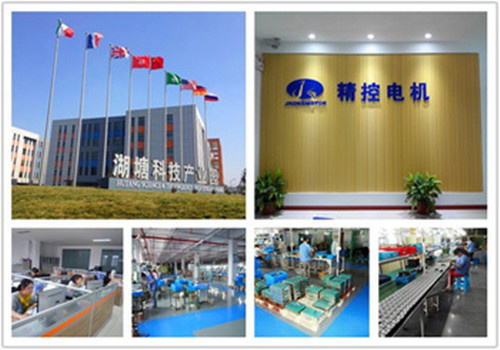

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
