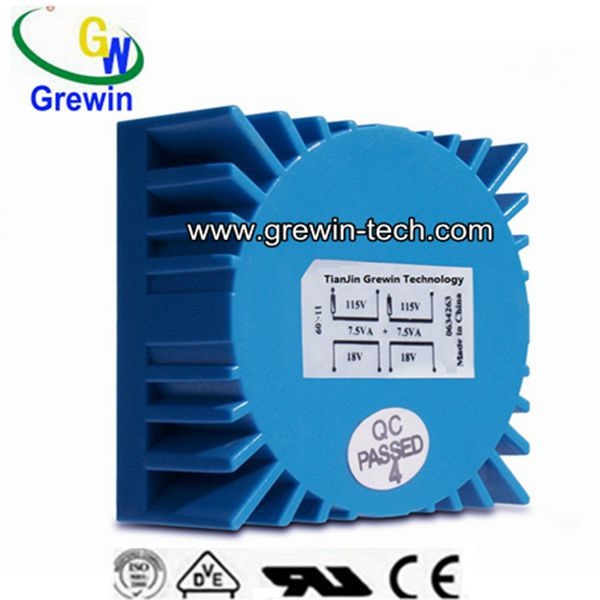

15va 10va PCB Toroidal Transformer

Prod Model:	GWETT021
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Transformer
Application:	Audio
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	Grewin Toroidal Transformer

Product Description

Core: Wound by high quality cold grain silicon
Annealed by advanced vacuum annealing furnaces to improve electronic data
Any dimension from customer available
Wire: Copper and aluminum available
Weld aluminum enamel wire well to save your cost 15 to 35%, based on our know-how technology
Thermal protector: Cutoff and switch both available
Application:
Electronic meter and apparatus
Cable TV and digital network
Electronic control
Medical equipment
New electric power supply
Decorative illumination system
Monitoring and control equipment
Installation:
Horizontal (non-conventional-type base plate), sunk, side type, and bridge
Label info:
Certificate logo, basic electronic data, manufacture's information also can be printed according to customer's advice
Bar code available based on customer's advice.

GW-ISeries: High Quality Encapsulated Toroidal Transformers with Pins

Model No.	Dimension a×b×c (±0.5mm)	Pins Distribution (mm)  (±0.5mm)		array pitch		Volume (VA)
		E (8 Pins)	F (8 Pins)		G (±0.5mm)
GW-1-D	66×66×40	5	9		59	25-30
GW-2-D	66×66×37	5	9		59	20-23
GW-3-D	62×62×40	5	9		55	18-22
GW-4-D	62×62×37	5	9		55	15-18
GW-5-D	62×62×35	5	9		55	12-15
GW-6-D	62×62×32	5	9		55	10-13
GW-7-D	58×58×35	5	9		51	10-12
GW-8-D	58×58×32	5	9		51	8-10
GW-9-D	58×58×29	5	9		51	6-8

3.Advantage:

1).100% copper wire made
2).Toroidal style
3).plastic cover :ABS fire Material of withstand high temperatures
4).Epoxy resin
5).high performance insulation
6).Anti-corrosion, waterproof performance



4.Application:

Pcb encapsulated toroial transformer Application:
* garden light
* LED underwater lamp
* LED Ground light
* Outdoor power Supply
* Swimming pool lighting
