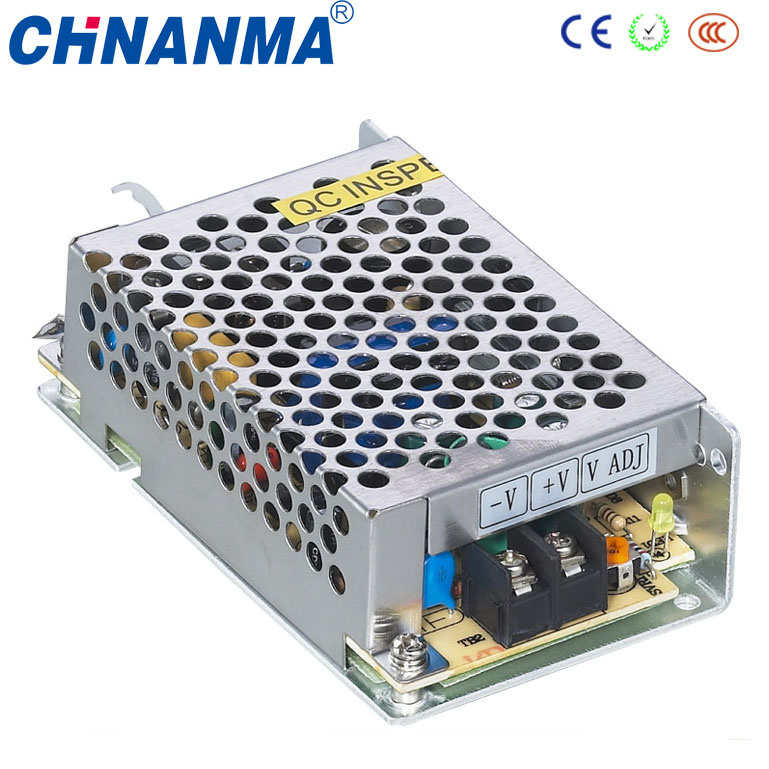

15W 12V DC Single Output Switching Power Supply

Name: 15W 12V DC Single Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 769870215
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	US $ 1-1/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BS-12-15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Material:	Aluminum
Size:	1107836mm
Oltage Regulating Mode:	Frequency Modula
Color:	Silver
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Chnanma

Product Description

100% full load burn-in test
Universal AC input: 85-264VAC
Small size, High power density
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Approvals: CE ROHS
Size: 100*58*32mm
3 years warranty

Specification	BS-15-12
DC output	12V 1.3A
Wave and noise	80mVp-p
Inlet stability	±0.5%
Load stability	±0.5%
Efficiency	71%
Adjustable range for DC voltage	±10%
AC input voltage range	85-264VAC 47-63Hz 120-370VDC
AC Inrush current	Cold-start current 30A/230V
OverLoad protection	105%-135% hiccup mode,auto-recovery
Over-Voltage protection
Setup,rise,hold up time	200ms,50ms,20ms at full load and 230VAC
Withstand voltage	I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistanc	I/P-O/P IP/FG OP-FG:500VDC/100M
Working temperature	-10ºC_+50ºC
Safety Standards	Design refer to GB4943,UL60950,EN60950
EMC Standards	Design refer to GB9254,EN55022 Class B
Weight	0.15Kg

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
