15W 12V IP20 Indoor Constant Voltage Ce LED Driver

Name: 15W 12V IP20 Indoor Constant Voltage Ce LED Driver
Brand: all-electronics-online.com
SKU: 747957735
Availability: InStock
Rating: 4.5 (127 reviews)

Price:	US $ 3-3.2/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E15B
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240V
Output Voltage:	12V
Output Current:	1.25A
Size:	855834mm
Efficiency:	75%
Installation:	Indoor
IP Rating:	IP 20
Weight(Kg):	0.2
Certificate:	Ce, RoHS
Material:	Aluminum + Metal
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC220-240V
Brand:	Neonpro

Product Description

15W 12V IP20 Indoor Constant Voltage CE LED Driver

Product Feature for LED Driver:
1. Mesh case (or electric fan) for ventilation, efficient heat dissipation.
2. Designed for indoor signage, decoration or lighting applications.
3. Constant Voltage type; No electric fan
4. Protections: Short circuit/ over load/ over voltage/ over temp
5. 100% full load burn-in test
6. Low cost, High reliability

7. 2 years warranty
8. CE approval.

Application for LED Driver:
*Applied for LED Signage.
*Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

Remark for LED Driver:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 ctn

Shipping for LED Driver:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

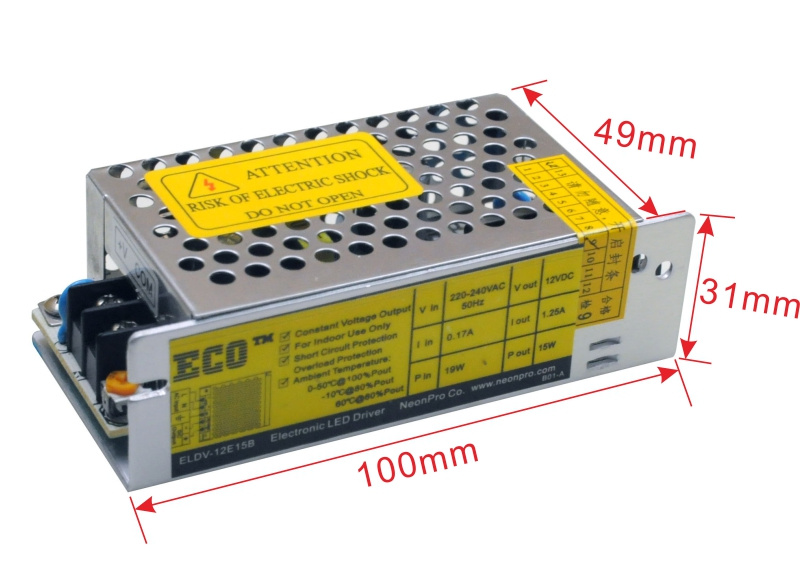

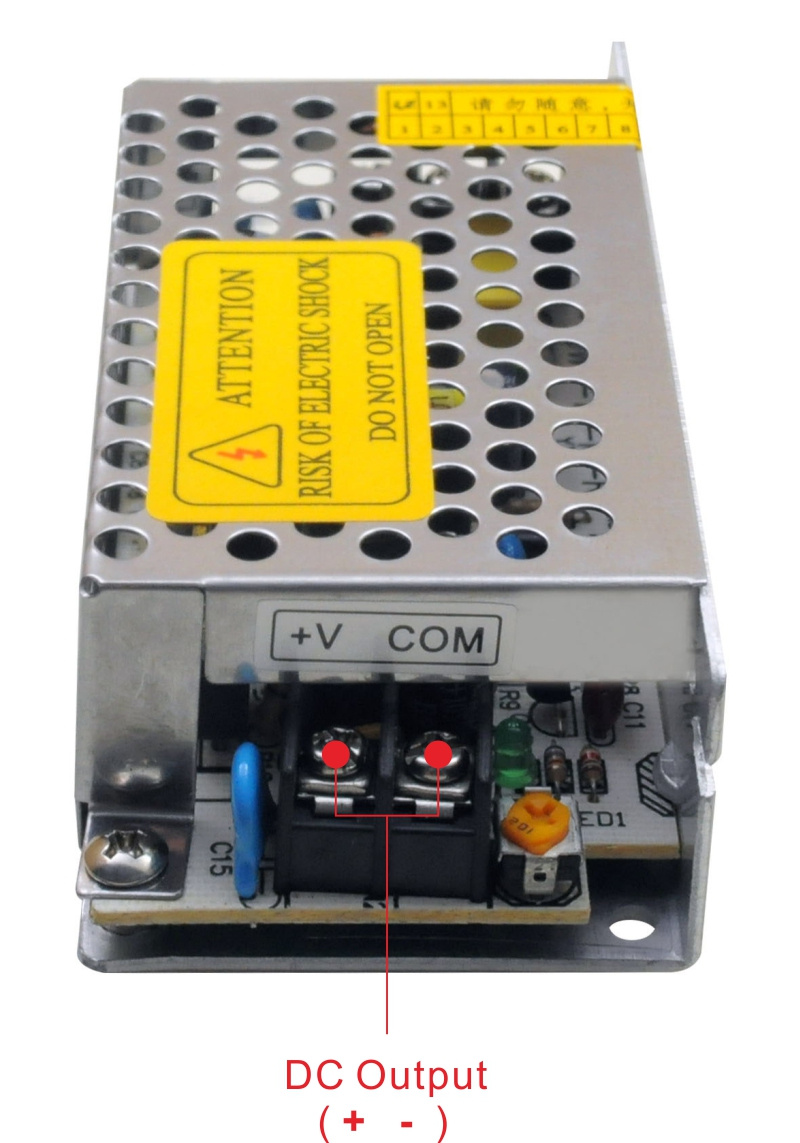

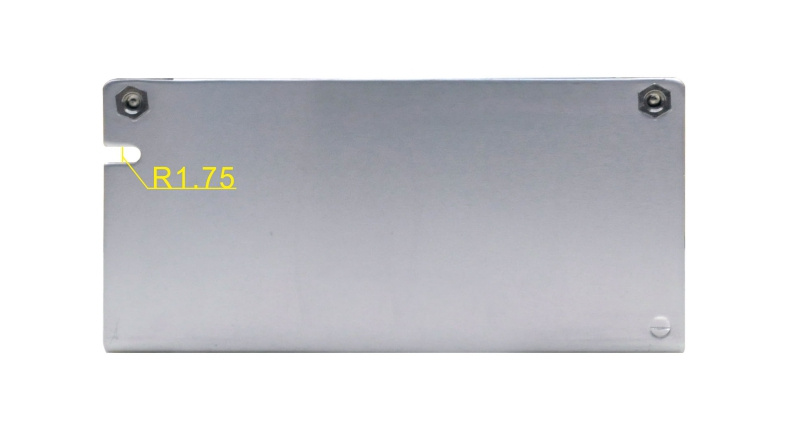

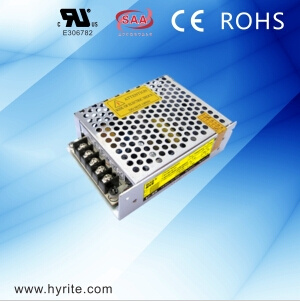

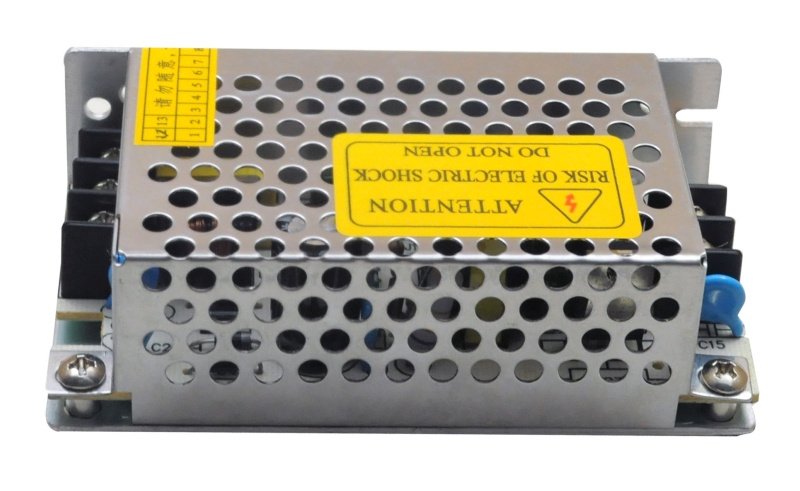

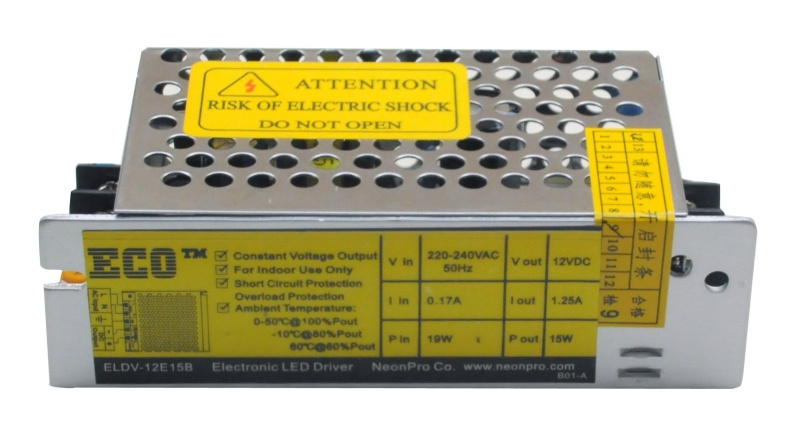

Product Picture for LED Driver:

Technical Specification for LED Driver:

Model no.	ELDV-12E15B
Input voltage	220-240VAC 50Hz/60Hz
Max. power	15W max
Output type	Constant voltage
Power factor	0.6
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	1.25A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P: 1.5kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Certificates/ Standards	CE, RoHS
Connection input /output	Terminal
Dimensions(LWH)	1363225mm

Project/ Production/ Exhibition show for LED Driver:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
