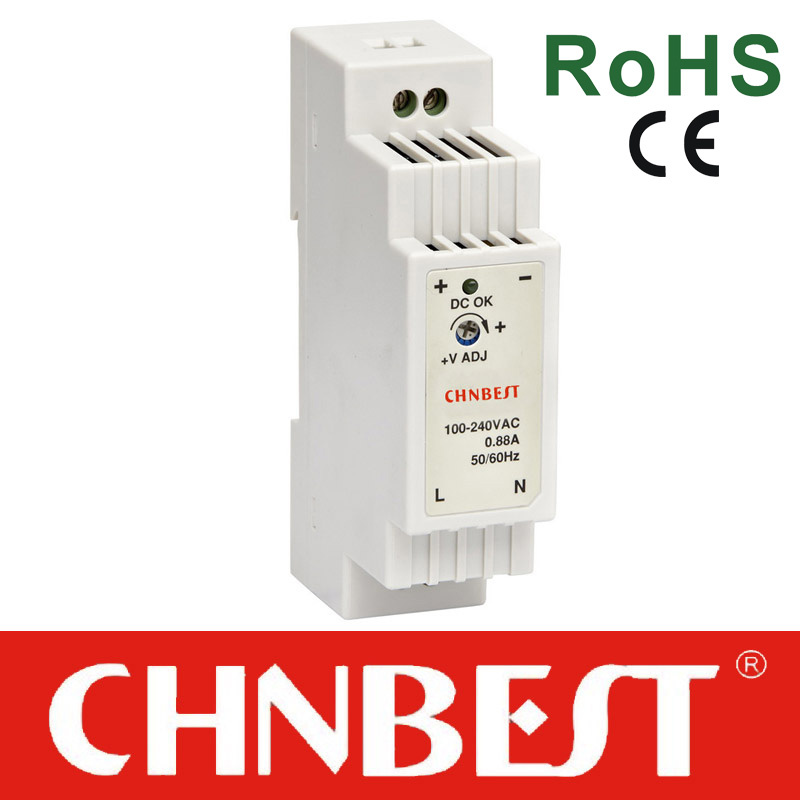

15W 12VDC Output DIN Rail Switching Power Supply with CE and RoHS (BDR-15-12)

Name: 15W 12VDC Output DIN Rail Switching Power Supply with CE and RoHS (BDR-15-12)
Brand: all-electronics-online.com
SKU: 728175355
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 9-13/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BDR-15-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Material:	Plastic
Size:	259356mm
Output Type:	Single
Output Power:	1 - 50W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	>2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO

Product Description

One of the SMPS Suppliers For Beijing Olympic Games & Shanghai EXPO 2010
100% full load burn-in test
Universal AC input: 85-264VAC
Protections: Short circuit/Overload/Over voltage
Installed on DIN rail TS35/7.5 or15

specification	BDR-15-12
DC output	12V 1.25A
Wave and noise	75mVp-p
Inlet stability	±0.5%
Load stability	±1%
Efficiency	79%
Adjustable range for DC voltage	±10%

AC input voltage range	85-264VAC 47-63Hz 120-370VDC
AC Inrush current	Cold-start current 35A/115V 70A/230
OverLoad protection	>105% hiccup mode,auto-recovery
Over-Voltage protection	115%-135% rated output voltage
Setup,rise,hold up time	500ms,30ms,50ms/230VAC
Withstand voltage	I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistanc	I/P-O/P IP/FG OP-FG:500VDC/100M
Working temperature	-10ºC_+50ºC
Safety Standards	Design refer to GB4943,UL60950,EN60950
EMC Standards	Design refer to GB9254,EN55022 Class B
Weight	0.15Kg

Zhejiang Best Electric Co., Ltd. Founded in 2000. Our factory is located in Wenzhou Zhejiang.

With over 16 years of experience in design and manufacture of switching power supplies, we have established long-term relationship with hundreds of big customers in the field of industrial control, telecom, LED, display & lighting of buildings, elevator, laser equipment, TV & broadcasting, computer system, medical equipment, safety control, automotive system, banking equipment

The products include Single output series, Waterproof Series, Rainproof Series, DIN-Rail Series, With PFC Function Series, With Battery Charger Series, DC to DC series, Open Frame Series, Dual Output Series, Triple Output series, Quad Output Series, and custom-design switching power supplies, over 5, 000 models showing great flexibility.

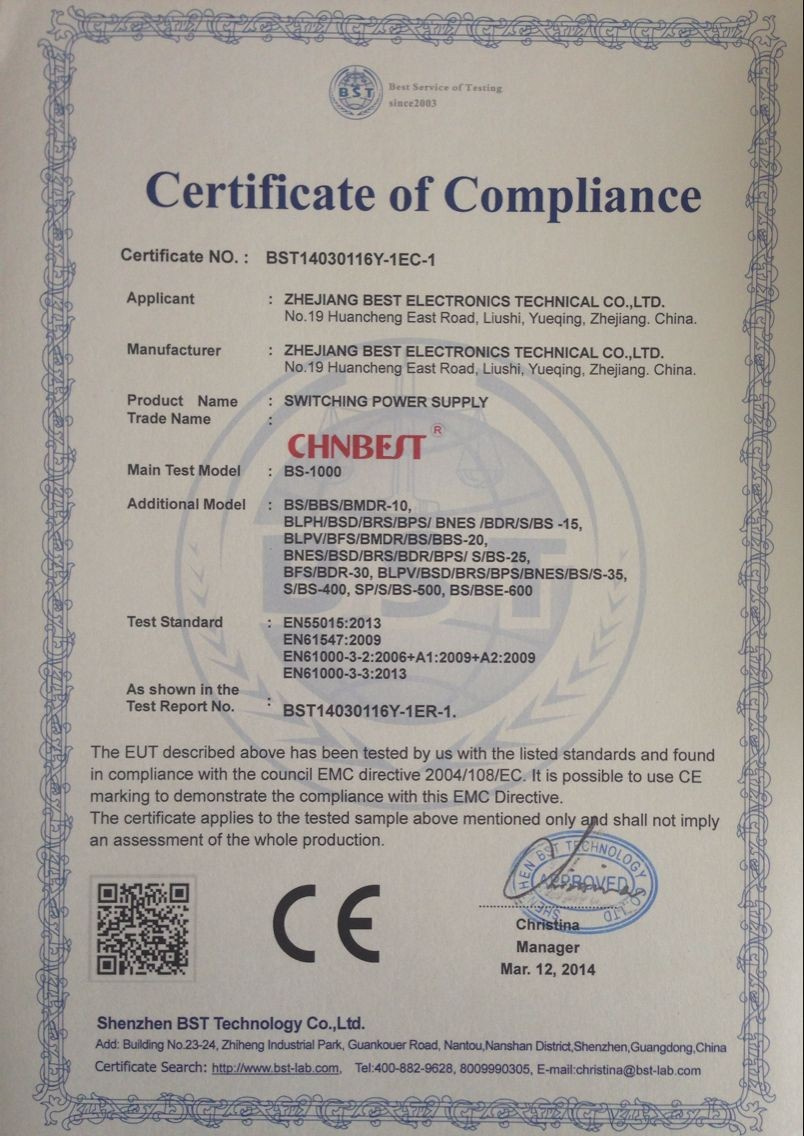

The company is certified by SGS. Over 100 models power supply have acquired CE, RoHS approval, and more are underway. We have various advanced equipment, such as wave soldering and reflow soldering machine, AI component insertion machine, auto chip mounter, ATE, ICT, RoHS testing, environmental testing, EMC testing system, burn-in test room, data acquisition Only top brand international components are adopted for the key parts to ensure long lifetime and high reliability. Each unit is given full load burn-in test. With high quality and market reputation,

We were honored to become main SMPS supplier for Beijing Olympic Games, and Shanghai Expo 2010.

We are confident to offer you total power solutions and become our trustworthy power partner.
