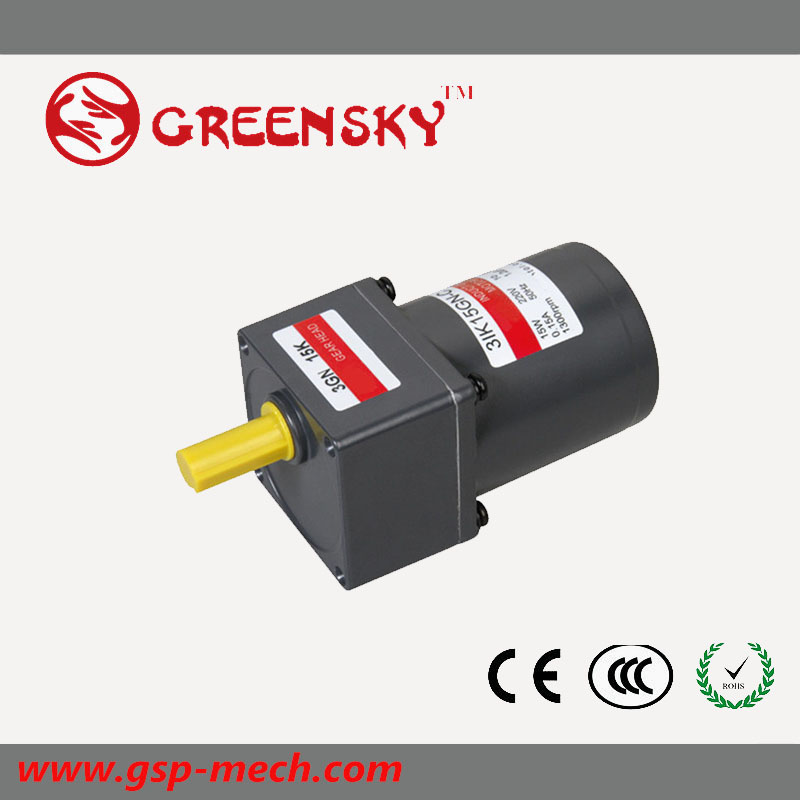

15W Micro AC Gear Motor with Variable Speed

Name: 15W Micro AC Gear Motor with Variable Speed
Brand: all-electronics-online.com
SKU: 773264255
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GS3IK15A-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	15W
Voltage:	100V~230V
Number Of Stator:	Single-Phase
Function:	Control
Certification:	Ce
Brand:	GS

Product Description

Introduction
Our AC induction motor widely used in home appliances,Like pellet stove,biomass boilers,ovens,commerical grills,rotisseries,air fresher,blender,heater,dehumidifiers,etc.

Specification

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Pinion Shaft	Round Shaft
GS3IK15GN-A	GS3IK15A-A	15	1ph100	50	0.35	90	125	1200	6.0
				60	0.33	85	105	1450
GS3IK15GN-E	GS3IK15A-E	15	1ph110	60	0.30	65	105	1450	5.0
			1ph120		0.32
GS3IK15GN-C	GS3IK15A-C	15	1ph220	50	0.18	90	125	1200	1.2
			1ph230		0.20		125
GS3IK15GN-H	GS3IK15A-H	15	1ph220	60	0.16	65/70	105	1450
			1ph230		0.15
GS3IK15GN-S	GS3IK15A-S	15	3ph220	50	0.14	220	125	1200	_
				60	0.12	180	105	1450

Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.
