15W Poe DC Power Adapter with Ce UL

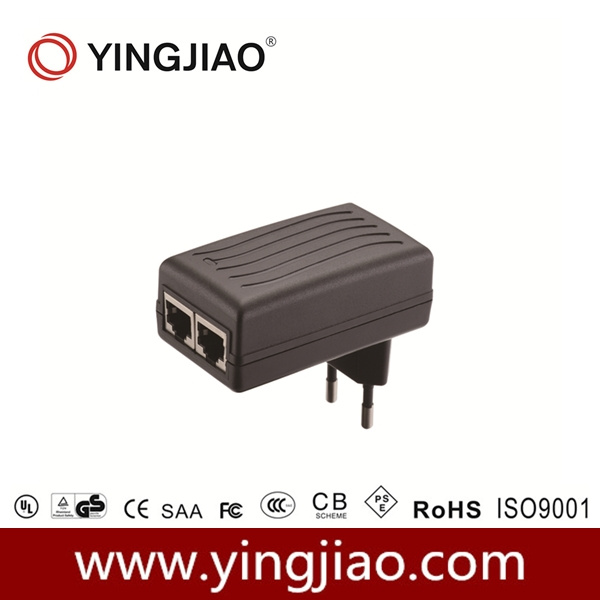

Name: 15W Poe DC Power Adapter with Ce UL
Brand: all-electronics-online.com
SKU: 814368315
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 2-5/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YSP18
Experience:	20 Years'experience
Quick Delievery:	15-25 Days
Warranty:	3 Years' Warranty
Packaging:	PE Bag,White Box,Carton
Usage:	Display
Output Type:	AC or DC
Connection:	Plug In
Type:	OEM/ODM
Brand:	Yingjiao/OEM/ODM

Product Description

Features:
Universal Input: 100-240V AC 50/60Hz
Safety: TUV/GS/CE compliance
RoHS Compliance
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 ~ +40 degrees centigrade
Storage Temperature: -40 ~+70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

Mechanical:
Dimensions: 70mm (L)*37mm (W)*30mm (H)
N. W.: 95g
AC Input Plug: UK 3 pin
Output plug: Optional

Output Specifications:
Model Output Load Voltage (V) Max. Load Current (A)
YS18-XX150 15 1.00
YS18-XX120 12 1.25
YS18-XX090 9 1.50
YS18-XX075 7.5 1.80
YS18-XX050 5 2.00
XX-represent rated output power

Packing details:
1 piece per plastic bag + inner box
100PCS/CTN
G. W.: 11.5KGS/CTN
N. W.: 9.8KGS/CTN
CTN Dimension: 43*25.5*16.5CM

Output Load Voltage (V)	5-15V
Max. Load Current (A)	1-2A

Company information:
Yingjiao Electrical Co.,Ltd., established in 1996 , is a leading manufacturer and exporter of switching&liner power adapters,tansformers,battery chargers,car chargers,power cords,etc.Being exported to over 50 countries such as and regions for 19 years,UK, US, France, Germany, Poland, Canada, South Africa, Spain,Italy,Argentina. Israel,Malaysia.And we have been ISO9001:2000 and SGS certified.

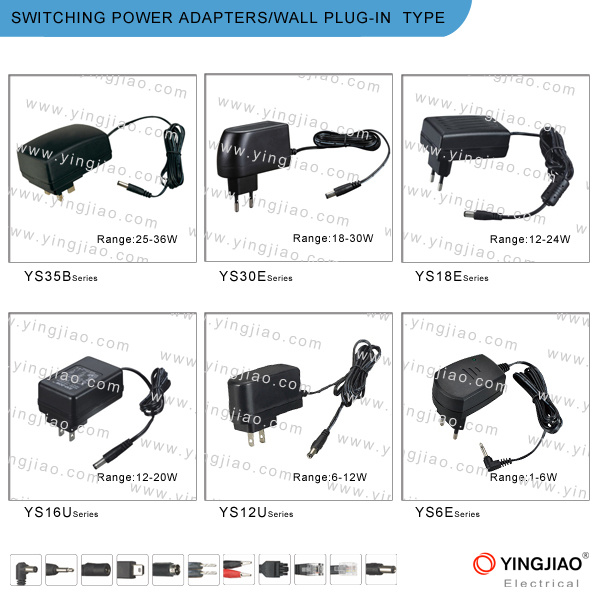

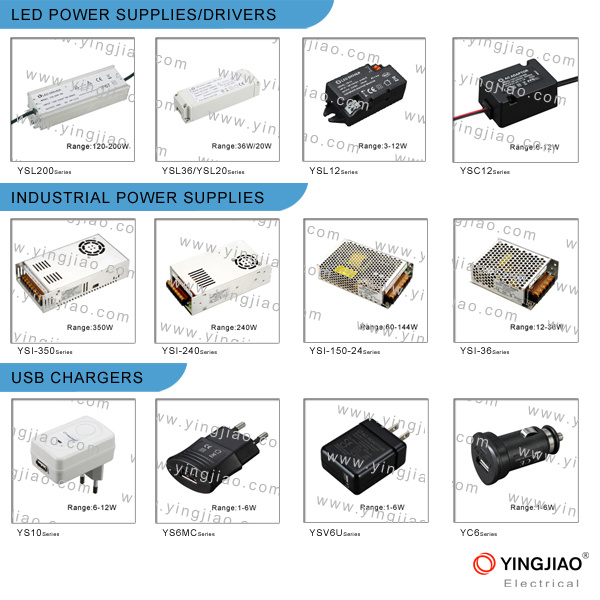

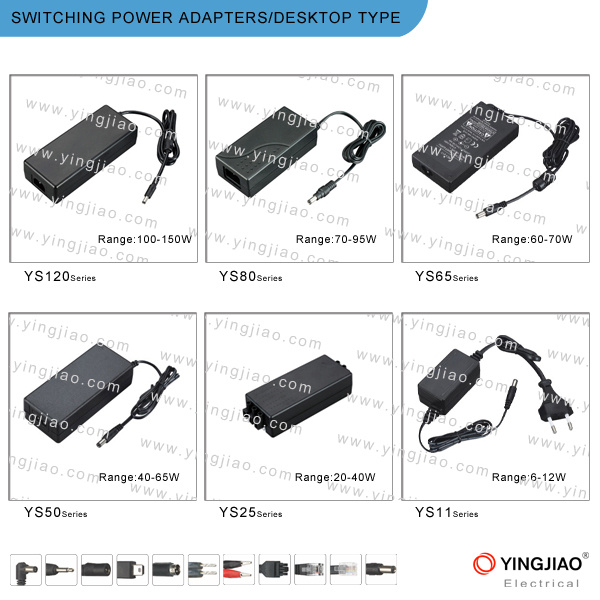

Yingjiao Electrical Co., Ltd., established in 1996, is a leading manufacturer and exporter of switching power adapters, linear AC/DC adapters, transformers, chargers, car chargers, power cords, tripods, etc. We can also design and manufacture power supply products with specifications according to the various demands of different customers.

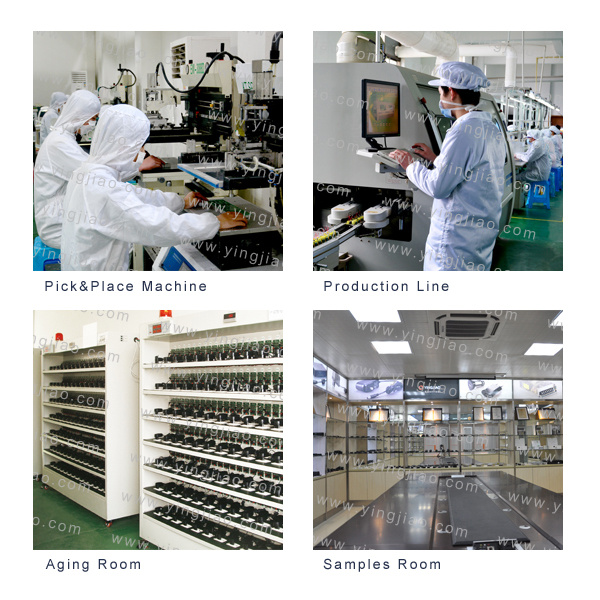

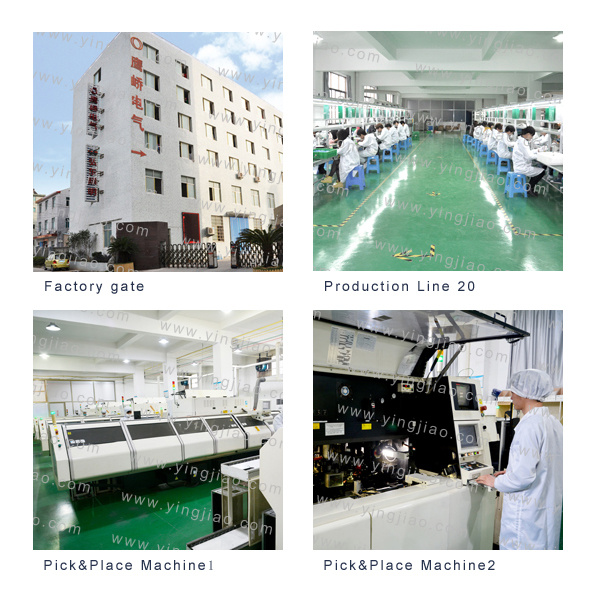

Located in Ningbo, a coastal city in East China, we possess a convenient location and transportation facility. With an area of 15000 square meters, we have about 800 skillful employees. Being exported to Europe, America, Japan, Australia, and many other countries and regions, our products have won good comments from our customers.

We have a strict quality control and guarantee system and have been ISO 9001: 2000 and SGS certified. All our main products have obtained CE approvals of the European Union and CQC and CCC approvals of Chinese quality certification center. Besides, we also carry out the international authoritative certifications, such as UL, cUL, TUV, CSA, and GS.

We commit to supply high quality products and competitive prices to our customers with professional technologies and top-ranking services.

ODM/OEM partners are welcome too.
