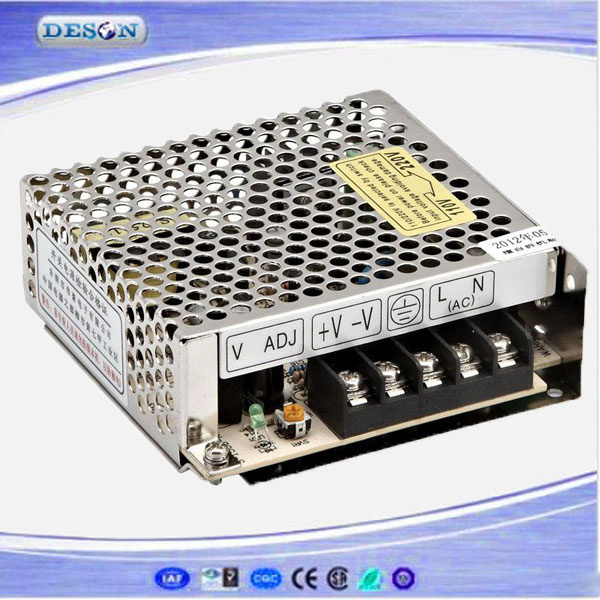

15W Single Output AC DC Power Supply

Prod Model:	S-15
Power:	15W
Input:	AC100-240
Output:	5V/12V/24V
Size:	98X97X35mm
Weight:	0.3kgs
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Deson
Energy Transmission:	AC DC Power Supply

Product Description

15W Single Output LED ac dc Power Supply

1.Universal AC Input
2.Compact size , light weight
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Soft-start current can reduce the AC input impact effective
7. 2 years warranty



Model	S-15-5	S-15-12	S-15-15	S-15-24
DC output voltage	5V	12V	15V	24V
Rated output current	3A	1.3A	1A	0.7A
Output current rage	0-3A	0-1.3A	0-1A	0-0.7A
Wave and noise	50mVp-p	50mVp-p	75mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±1%	±0.5%	±0.5%	±0.5%
Efficiency	65%	68%	70%	72%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	AC100~240V 47~63Hz;240~370VDC
Input current	0.5A/115V0.25A/230V
AC INnrush current	Cold-start current 15A/115V 30A/230V
Overload proctection	105%~150% Tpye:Foldback current limiting Reset: auto recovery
Over-voltage protection
Setup rise hold up time	200s,100ms,30ms
Withstand voltage	Input and output internal 1.5KVAC,Input and enclosure 1.5KVAC,Output and enclosure 0.5KVAC
Isolation resistance	Input and output internal Input and enclosure,Output and enclosure 500VDC/100MΩ
Working temperature	-10°C~+50°C
Overall dimension	98*97*35mm
Safety standards	Meet ULGB4943 UL60950 EN60950 requirement
EMC standards	Meet EN55022 GB9254 class A requirement
Weight	0.3Kgs
