Yueqing Winston Electric Co., Ltd. >> 15W to 150W PTC Semiconductor Industrial Fan Heater (HG140)

15W to 150W PTC Semiconductor Industrial Fan Heater (HG140)

15W to 150W PTC Semiconductor Industrial Fan Heater (HG140)
Price: US $ 8.48-19.48/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: HG140
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Power: 15W 30W 45W 60W 75W 100W 150W
Fitting Postion: Vertical
Protection Type: IP20
Dimension(L*W*H): 65mm
Weight: 0.3kg
Warranty: 2 Years
Operating/Storage Temperature: -45 to +70 Degree
Operating / Storage Humidity: Max. 90 % Rh (Non-Condensing)
Condition.: Original New
Manufacturer: OEM

Product Description

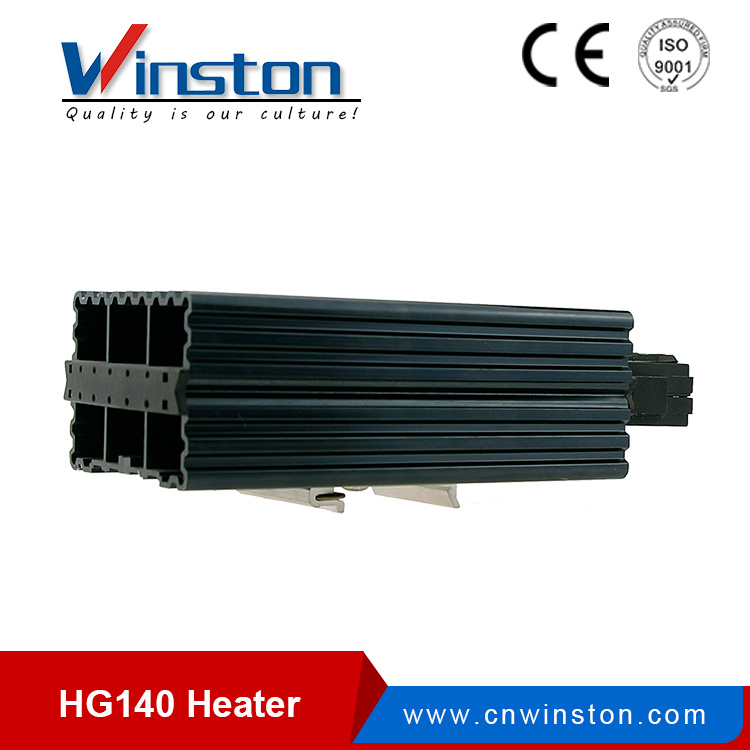

HG 140 series Semiconductor Heater


Feature
Pressure clamp connectors
Dynamic heating up
Wide voltage range
Temperature limiting
Energy saving
Clip fixing
Quick installation


Description
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.

Technical paraments
Operating voltage120-240V AC/DC* (min. 110V, max. 265V)
Heating elementPTC resistor, self regulating and temperaturelimiting
Heater bodyextruded aluminium profile, anodised
Connection3 pressure clamps for stranded wire 0.5-1.5mm² (withwire end ferrule) and rigid wire 0.5- 2.5mm²
Connection casingplastic according to UL94 V-0, black
Mountingclip for 35mm DIN rail, EN 50022
Fitting positionvertical
Operating/Storage temperature-45 to +70 ° C (-49 to +158 ° F)
Protection type/Protection classIP20 / I (earthed)
ApprovalsCE
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

Art. No.Heating capacity*Inrush current max.Length (L)Weight (approx. )
14000.0-0015W1.5A65mm0.30kg
14001.0-0030W3.0A65mm0.30kg
14003.0-0045W3.5A65mm0.30kg
14005.0-0060W2.5A140mm0.40kg
14006.0-0075W4.0A140mm0.50kg
14007.0-00100W4.5A140mm0.50kg
14008.0-00150W9.0A220mm0.70kg

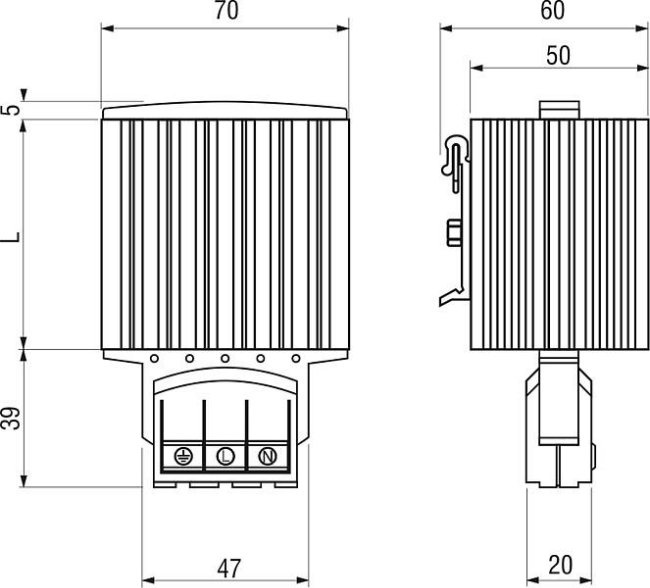

Dimension



Package
