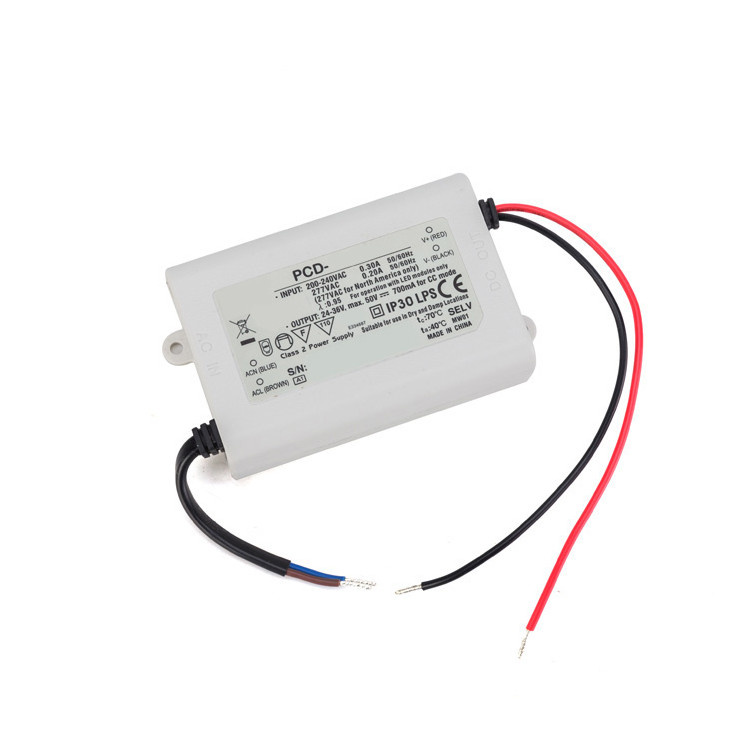

16-60W Power Supply with AC Tangent Dimming (PCD series) Constant Current for LED Light

Name: 16-60W Power Supply with AC Tangent Dimming (PCD series) Constant Current for LED Light
Brand: all-electronics-online.com
SKU: 785876665
Availability: InStock
Rating: 4.5 (41 reviews)

Price:	US $ 11/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-PCD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Constant Current:	Constant Current Design (Constant Current Mode
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

16-60W power supply with AC tangent dimming(PCD series) constant current for led light
Features:
*AC tangent dimming function, used in the leading edge trigger and trailing edge trigger call light
*PCD-16 / 25 : 115VAC or 230VAC (input)
*PCD-40 / 60 : only 230VAC (input)
*Built-in active power factor correction function
*Fully sealed insulation plastic shell
*Class 2 isolation, no F.G
*Natural cooling
*Constant current design (constant current mode)
*IP30 Design
*Class 2 power supply, by LPS(limited power source) test (PCD-16 / 25)
*Protection function: Short circuit, over temperature
*3 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

Withstand Voltage

Working Temperature

EMC standards

Connector
input/output

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

PCD-16

PCD-16-350

115VAC(90~135VAC) or 230VAC(180~295VDC)

Cold start,
10A/230VAC

I/P-O/P:3.75KVAC

-30ºC~+60ºC

A type: FCC part18 non-consumer equipment
B type: EN55015,EN61000-3-2 class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11, EN61547

Input: PCD-16 / 25 A type: UL1430,18AGWx2C(7.5cm);PCD-16 / 25 B type: NISPT-1 18AGWx2C(7.5cm);PCD-40/60:H03VVH2-F 0.75mm²x2C (7.5mm)^;Output:UL1430,18AGWx2C(15cm)

24~48V,350mA

±5%

4.6V

82.0%

84x57x29.5

PCD-16-700

16~24V,700mA

±5%

81.0%

PCD-16-1050

12~16V,1050mA

±5%

2.2V

80.5%

PCD-16-1400

8~12V,1400mA

±5%

2.0V

80.0%

PCD-25

PCD-25-350

I/P-O/P:3.75KVAC

-30ºC~+60ºC

40~58V,350mA

±5%

4.6V

82.0%

84x57x29.5

PCD-25-700

24~36V, 700mA

±5%

2.7V

81.0%

PCD-25-1050

16~24V,1050mA

±5%

2.2V

80.5%

PCD-25-1400

12~18V,1400mA

±5%

2.0V

80.0%

PCD-40

PCD-40-350B

230VAC(180~295VDC)

Cold start,
11A/230VAC

I/P-O/P:3.75KVAC

-30ºC~+50ºC

70~108V,350mA

±5%

9.5V

87.0%

128x60x31.5

PCD-40-500B

45~80V, 500mA

±5%

5.0V

87.0%

PCD-40-700B

34~57V,700mA

±5%

3.1V

86.0%

PCD-40-1050B

22~38V,1050mA

±5%

2.6V

86.0%

PCD-40-1400B

17~29V,1400mA

±5%

2.5V

85.0%

PCD-40-1750B

13~23V,1750mA

±5%

2.4V

85.0%

PCD-60

PCD-60-500B

Cold start,
13A/230VAC

-30ºC~+45ºC

70~108V,500mA

±5%

10.2V

87.0%

128x60x31.5

PCD-60-700B

50~86V, 700mA

±5%

5.6V

86.0%

PCD-60-1050B

34~57V,1050mA

±5%

3.8V

86.0%

PCD-60-1400B

25~43V,1400mA

±5%

3.4V

85.0%

PCD-60-1750B

20~34V,1750mA

±5%

3.3V

85.0%

PCD-60-2000B

18~30V,2000mA

±5%

2.4V

85.0%

PCD-60-2400B

15~25V,2400mA

±5%

2.4V

84.0%
