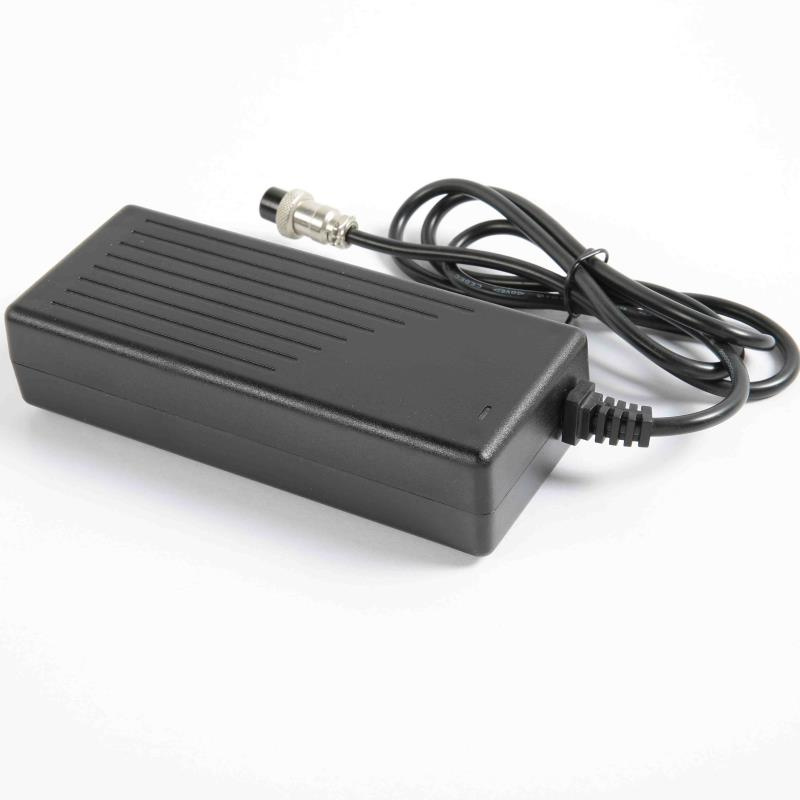

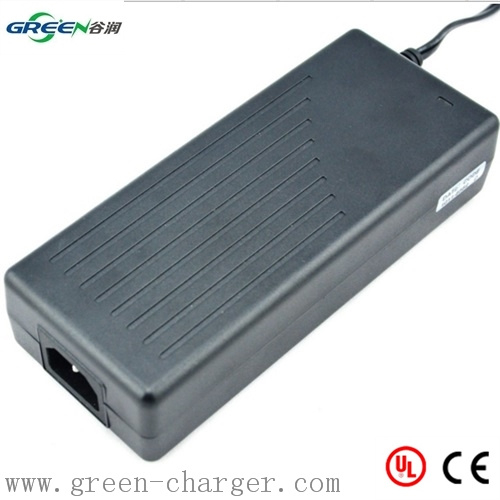

16.8V 4.5A Lipo Battery Charger

Name: 16.8V 4.5A Lipo Battery Charger
Brand: all-electronics-online.com
SKU: 772293905
Availability: InStock
Rating: 4.5 (106 reviews)

Price:	US $ 11.5-13/Piece
Trade Terms:	FOB
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	L100-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
For Use:	Standard Battery
Case:	PC+ABS Plastic
Color:	Black
Customized:	Yes
Recovery Function:	Yes
MCU Controller:	Yes
Short Circuit Protection:	Yes
Reverse Potection:	Yes
LED Dispaly:	Yes
Delivery Date:	2-3 Weeks
Type:	Lithium Battery
Charger Type:	Lipo Battery Charger
Charger Application:	Electric Wheelchair,Scooter,Tool,E-Bike
Nominal Voltage:	16.8V
Compatible Battery Type:	14.8V
Size:	170X70X51mm
Socket Type:	UL,VDE,PSE,UK,SAA...

Product Description

L100-12 LiPo Portable Charger for 14.8V Li-ion Car Battery

Specification
Input: 100~240V
Output: 16.8V 4.5A
Charge Process: CC(pre-charge)-CC(bulk)-CV-cutoff
Charger Indicator: One bi-color , Red/Green
Output Protections: Short-circuit, Reverse Polarity...
Safety Approval: CE cUL approved
Size: 170 x 70 x 41mm
Suit for Battery: 14.8 Volt (4Cells) 4~25Ah Li-ion Battery Charger

Feature:

Auto 4 stages (Pre-CC-CV-Cutoff) charging process.
Pre-charge function for deep discharged battery pack
Designed for 4 series Li-Ion battery pack.
With Bi-color LED indicator, easily know the charging process.
Protection mode for battery polarity reversed or the output connectors shorted.
Meet EN60335-2-29 and UL1310 safety requirements.

Specification for L100-12

Input Voltage	100-240VAC,50-60Hz
Input Current	1.6A
Back current drain	<1.3mA
Constant voltage	L100-12	L100-24	L100-36	L100-48
	16.8V±1%	29.4V±1%	42.0V±1%	54.6V±1%
Bulk charge current	5.0A±5%	2.8A±5%	2.0A±5%	1.7A±5%
Operate Temperature	-20ºC~40ºC
Cooling	Natural convection. Do not cover the charger.
Charge principle	Auto 4 stages (Pre-CC-CV-Cutoff) charging process.
Battery type	4 series Li-Ion/polymer battery packs
LED display	1 bi-color LED, "Red" for charging and "Green" for finished
Size	170 x 70 x 41mm
Output cable and plug	1.5 meter 2xAWG18#, SPT1 wire, 5.5x2.1x10mm plug
Input plug	IEC60320-C14 or C8
Enclosure	ABS+PC Plastic housing
Weight	440g

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
