16-Channel Temperature Indicator Temperature Controller with Two Group Alarms Xmz-J1638

Name: 16-Channel Temperature Indicator Temperature Controller with Two Group Alarms Xmz-J1638
Brand: all-electronics-online.com
SKU: 714171622
Availability: InStock
Rating: 5 (86 reviews)

Price:	US $ 105/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMZ-J1638
Control Type:	Digital

Product Description

I.Survey

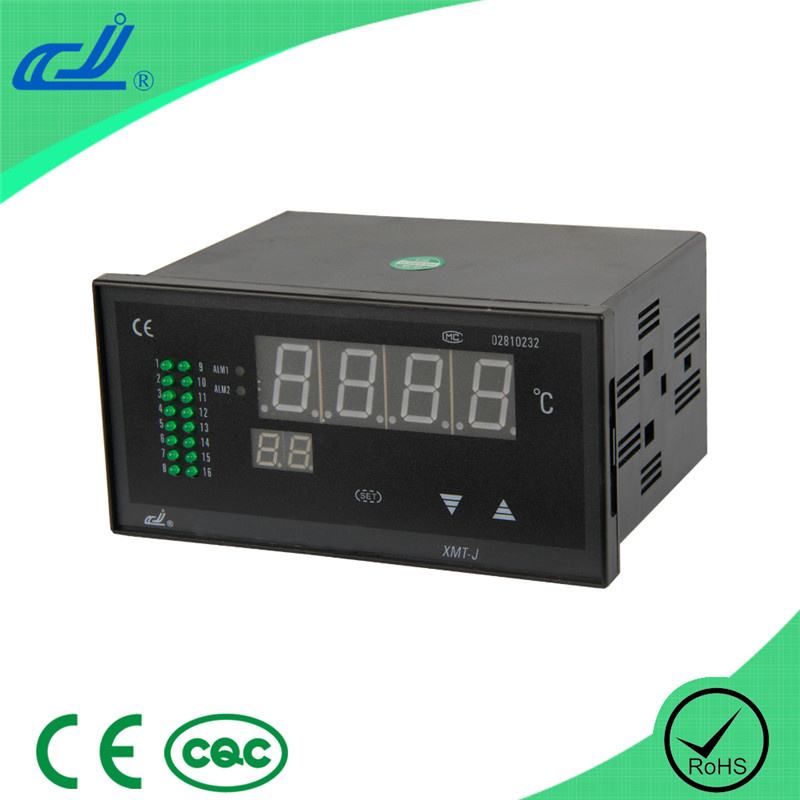

XMZ*-J series all-purpose input temperature patrol measure meter is a intelligent meter which adopt

computer technology. The meter adopt two row LED, and at the same time distinguish display test

temperature value and the present passage, can use by automatic or manual to carry out tour test, and

each passage have relative indicate light. It has computer RS485 serial-port communication, or timed

print.

II.Main Technical Indexes
1.Accuracy: ± 0.5%FS± 1B

2.Input signal: K E J R S PT100 Cu50

3.Temperature: K(-30~1300) E(-30~800) J(-30~1000)
R(-30.0~1700.0) S(0~1600) PT100(-200.0~600) Cu50(-50.0~150.0)

4.Passage quantity: At most 16

5.Alarm relay contact capacity: 220V 5A(resistance)

6.External dimension and installation hole(mm):
XMZ-J 160× 80× 120 156× 76
XMZA-J 96× 96× 110 92× 92

7.Working power: AC220V± 10% 50Hz power consumption is less than 5W

8.Normal working condition: Temperature 0~50, relative humidity 35%~85%, without corrode gas.

III.Meaning of the model code

The meter is a all-purpose patrol measure meter for 1-16way,it is set when it is leaving the factory

   XMZ(1)- J(2)(3)  8(4)

"1":the surface dimension (mm):A:96×96×110 Installation hole:92×92

Blank:160×80×120 Installation hole:152×76

"2":Channel number:for example'16'as 16 channels,'8'as 8 channels.

"3":Alarm definition:'0'no alarm,'1'upper limit alarm,'2'lower limit alarm,'3'upper and lower limit alarm

"4":Suffix:'WT' with miniature printer,'K' with 485 communication model
'Blank' not have this function.

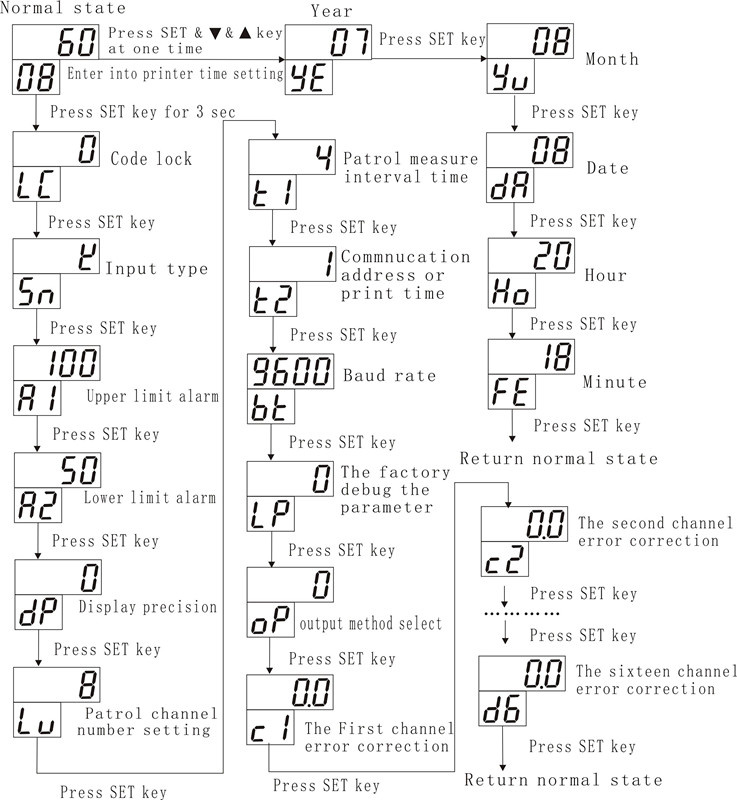

Operate flow
