| Prod Model: |
12VDC10A16P-1.5U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Chinasky |
| CTN Size: |
46(L)*27(W)*9.5(D)Cm |
| Application: |
Security Systems |
| Nearest Port: |
Ningbo or Shanghai |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
Ce, IEC60950-1,RoHS |
Product Description

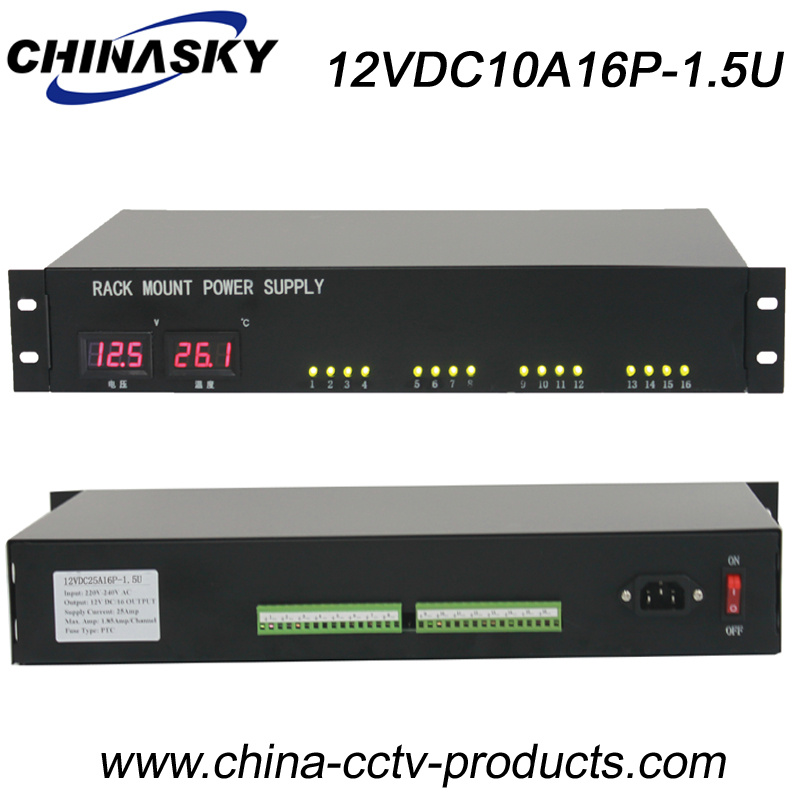

16 Channels 12V LED Display CCTV Rackmount Power Supply (12VDC10A16P-1.5U)
Overview:
Input 110/220 V AC
Output 12V DC,16channels
10 Amp Supply Current
Integral Surge Protection
Individual LED Power Indication
Individual PTC Output Protection
Max. Amp: 1.1Amp/ch
1.5U rack mount
Features:
1,Soft starting current, effectively reduce the impact of AC input, independent short-circuit protection and surge protection, resume automatically after clearing of fault, EMI filter, minimum ripple, 100% load test, quality guarantee, high efficiency, low T-rise, continuous duty
2,Input with a switch, LED indicators lighten when the power supply operates normally, and each output contains independent PTC, LED indicator, which is not interfere with each other
3,Convenient installation, save a lot of time and labor
4,Packing with color box
Technical Specifications:
| 16 Channels 12V LED Display CCTV Rackmount Power Supply (12VDC10A16P-1.5U) |
| Model | 12VDC10A16P-1.5U |
| Specification | 120W12V10A16P |
| Shape Dimension | 44.1x25.1x7.6cm |
| Weight | 4kg |
| Input | Input Voltage | 110/220VAC |
| Input Voltage Frequency | 50Hz~60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
Output
| Output Voltage | 12VDC±5% |
| Output Current | 10A,16channels for 16 sets load |
| Output Ripple Noise(Vp-p) | 100mVp-p@25ºC/
Rated input voltage & Output rated load |
| reply time of starting up | ≤3S Input 100Vac,Output rated load |
| Fuse | Type /Rating | PTC 1.1A/60V |
| Protection | Over voltage protection | When over voltage occurs, it will be switch to self-protection status to protect the load. |
| Over current protection | When over current occurs, the corresponding channel output will automatically switch to self-protection status, and the other channels output work normally, when clearing of fault, then switch back to normal. |
| short-circuit protection | When short-circuit occurs, individual PTC fuse will break the circuit, when clearing of fault, it switch back to normal automatically. |
| Circumstances | Working Temperature | 0ºC~+50ºC |
| Storage temperature | -20ºC~+80ºC |
| RH | 20%~90% |
| Heat release | Natural heat dissipation |
| Connection | Input | Three-pin socket |
| Output | 8channels output |
| Dielectric Strength | Input to output | 1500Vac/60S leakage current≤1.5ma |
| Input to FG | 1500Vac/60S leakage current≤2.0ma |
| FG to output | 500Vac/60S leakage current≤1.5ma |
| Insulating strength | Input to output | ≥20MΩ/500VDC@25ºC |
| Leakage Current | ≤0.21ma @AC110V(220V)/25ºC |
| RG | ≤0.011Ω@DC8V/25A/25ºC |
| Inspection Equipment | YF9901 Digital Power Meter MW -MOS-620 20MHz Oscillograph |
| DZ2672A Hi-pot Tester VC9802A DMM |
| IT815 300W/0-120V Electronic Load DZ2620 Leak Resistance Tester |
| WB2678A RG Tester |
