| Prod Model: |
GYTS-16core |
| Fiber Count: |
2-288 |
| Standards: |
Yd/T901-2009;IEC60794-1 |
| Export Market: |
Europe,Middle East, South East Asia , South Americ |
| Bend Radius: |
10d/20d |
| Using Period: |
25 Years |
| Material: |
All of New |
| Optical Fiber: |
First Grade |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
ISO9001 |
| Allowed Lateral Pressure: |
1000n<3000n |
| Brand: |
Hongan |
| Sheath Material: |
PE |
Product Description

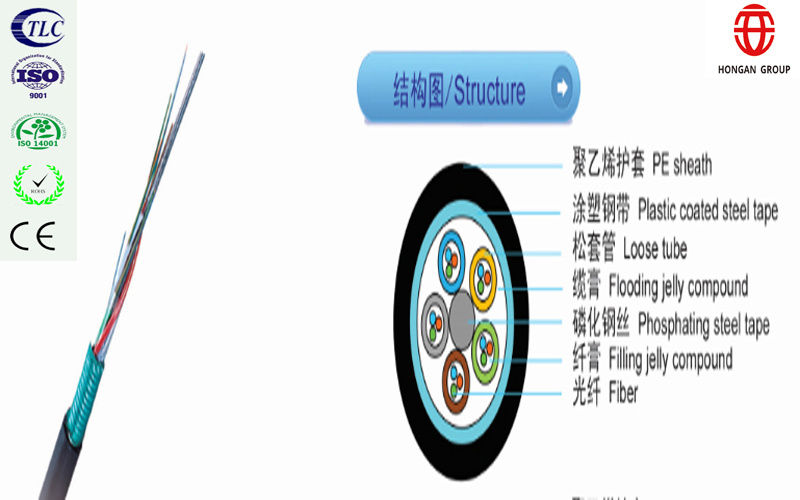

Product Description:- Characteristics of product:1.Corrugated steel tape armoring, loose tube stranding with single sheath
2.Loose tube material has good hydrolysis resistance performance and high strength
3.Compact structure, excellent water-blocking performance
4.Strict manufacturing processes. Good mechanical performance and environmental properties.-Product Applications:1.Buried,aerial
2.Relay communication system.
3.Core network , metropolitan area network and access network etc. | Structure parameters: | | | | | | |
| Fiber count | Structure | Nominal diameter | Nominal weight | Permitted tensile Long term/ Short term (N) | Permitted crush Long term/ Short term (N) | Bend radius Static state/ Dynamic state (mm) |
| 2-30 | 1+5 | 9.3 | 78 | 600/1500 | 300/1000 | 10D/20D |
| 32-36 | 1+6 | 9.7 | 91 | 600/1500 | 300/1000 | 10D/20D |
| 38-60 | 1+5 | 9.8 | 86 | 600/1500 | 300/1000 | 10D/20D |
| 62-72 | 1+6 | 10.7 | 110 | 600/1500 | 300/1000 | 10D/20D |
| 74-84 | 1+7 | 11.4 | 118 | 600/1500 | 300/1000 | 10D/20D |
| 86-96 | 1+8 | 12.1 | 131 | 600/1500 | 300/1000 | 10D/20D |
| 98-108 | 1+9 | 12.7 | 143 | 600/1500 | 300/1000 | 10D/20D |
| 110-120 | 1+10 | 13.3 | 154 | 600/2000 | 300/1000 | 10D/20D |
| 122-132 | 1+11 | 13.9 | 167 | 600/2000 | 300/1000 | 10D/20D |
| 134-144 | 1+12 | 14.6 | 182 | 600/2000 | 300/1000 | 10D/20D |
| 146-216 | 1+6+12 | 14.7 | 190 | 600/2000 | 300/1000 | 10D/20D |
| 218-288 | 1+9+15 | 16.7 | 234 | 600/2500 | 300/1000 | 10D/20D |

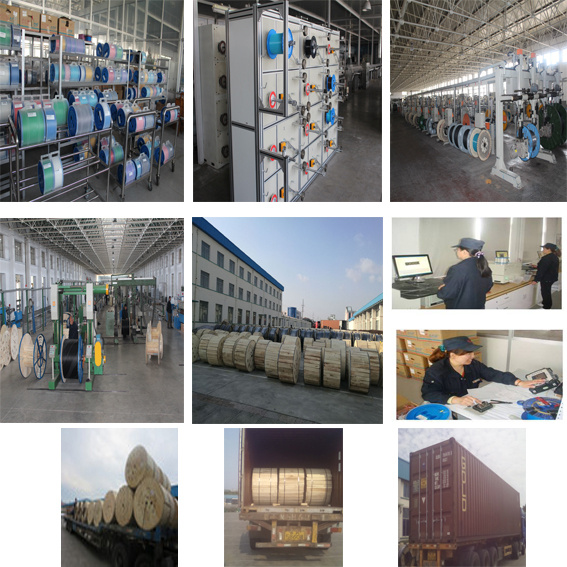

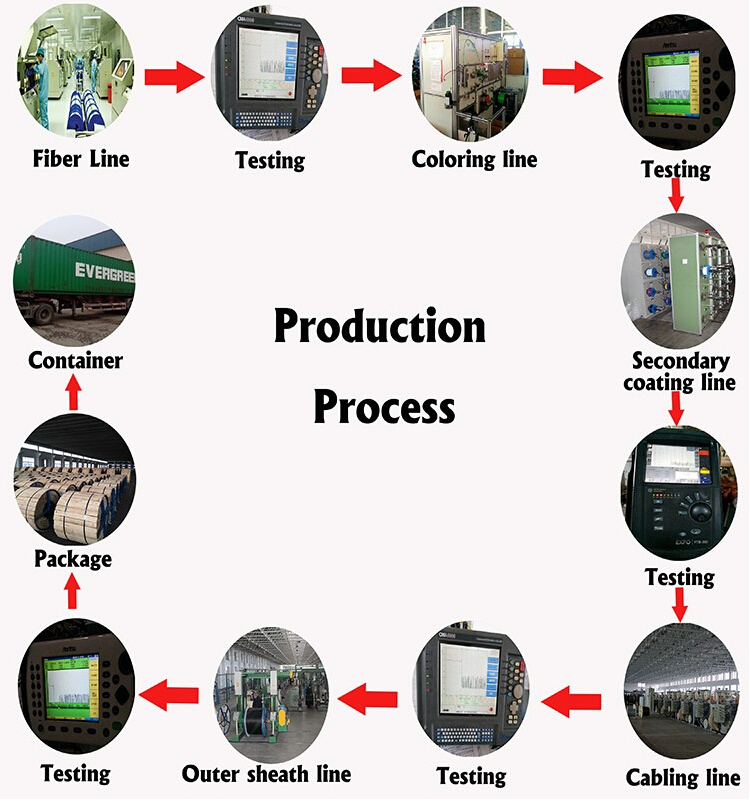

Avanced Production Line:
Certifications:
Company Information:HONGAN GROUP located in Shandong China. Specialized produce optical fiber cable, network data cable and multi pair telephone cables more than 30 years. And also EPON , GPON, Data center Solutions and Equipments.
China TOP 10 optical fiber cable manufacturer. Products had passed ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL. Shipped to Thailand, Cambodia ,Burma,Vietnam,Laos,Europe,Africa and so on. More than twenty countries.Our customers:
FAQ-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years. Hongan Group, Your faithful friend! Best regards: David Li
