160kn Suspension Insulator with ANSI 52-8 Approved

Name: 160kn Suspension Insulator with ANSI 52-8 Approved
Brand: all-electronics-online.com
SKU: 683478112
Availability: InStock
Rating: 4.4 (114 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI 52-8 Ceramic Insulator
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
160kn Suspension Insulator:	ANSI 52-8
Application:	Low-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	ANSI 52-8 Suspension Insulator
Color:	Silver
Brand:	OEM

Product Description

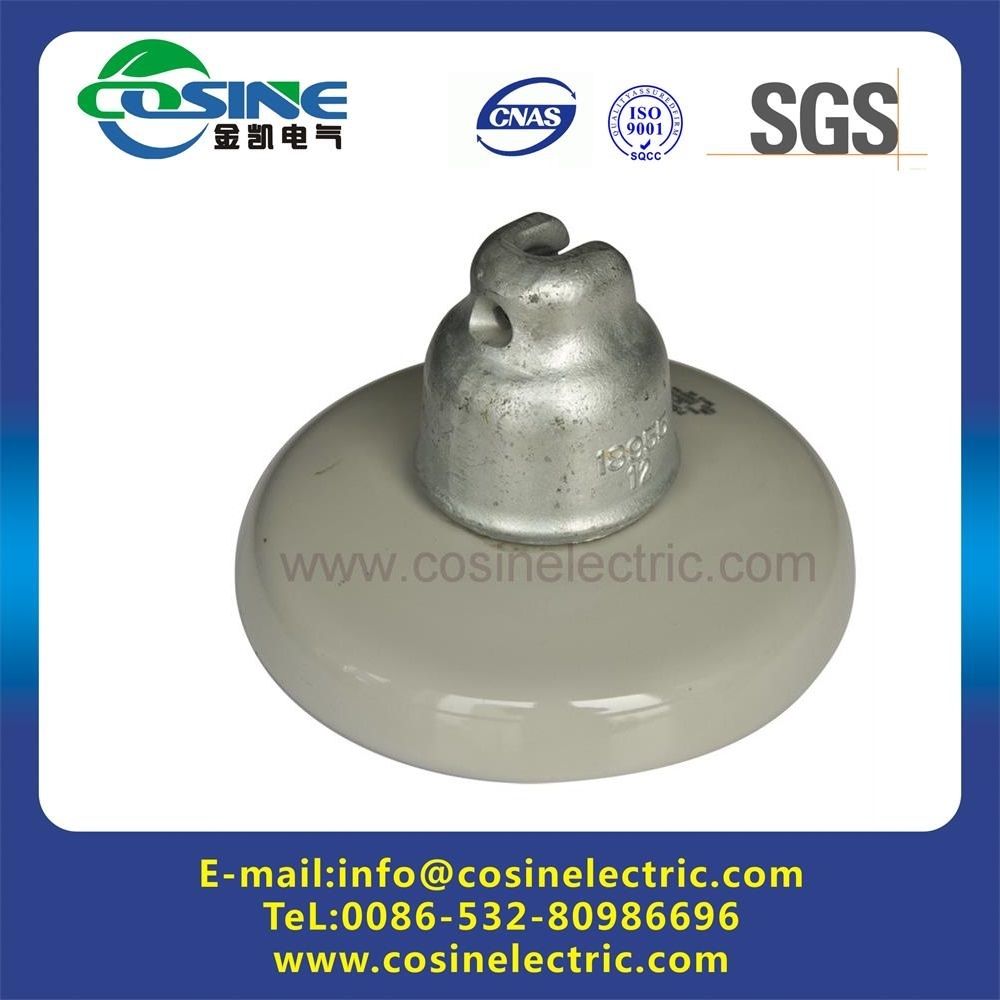

Name: Suspension insulator
Type of suspension insulator: ANSI52-8
Specification:
M&E: 40000Lbs
Test: 20000Lbs
Standard: Comply with the ANSI Standard C29.2
The glaze colors of the suspension insulator are brown or light gray. Our suspension insulator have passed the independent Lab test according to IEC60383. We can offer best quality.

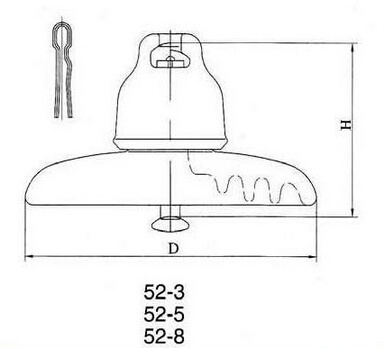

ANSI Class		52-8
Porcelain Disc Diameter,D,mm		280
Unit Spacing,H,mm		146
Creepage Distance,mm		305
Combined M & E Strength,KN		160
Impact Strength ,Nm		10
Routine Proof Test Load,KN		80
Time Load Test Value,KN		107
Power Frequency	Dry,KV	80
Flashover Voltage	Wet,KV	50
Critical Impulse	Pos,KV	125
Flashover Voltage	Neg,KV	130
Power Frequency Puncture Voltage,KV		110
Radio Influence	Test Voltage to Ground,KV	10
Voltage Data	Max.RIV at 1000 Khz,uV	50
Net Weight,Approx.,kg		7.5

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
