| Prod Model: |
MS4-16TA-C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Micro Switch for Heaters |
| Rating: |
16A 125VAC/16A 250VAC |
| Package: |
300PCS/CTN |
| Delivery: |
FedEx/UPS/TNT/DHL |
| Function: |
Anti-Dumping |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Environment: |
﹤250℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Single Type |
| Application: |
Heater/Radiator |
| Brand: |
Yuzhou |
Product Description

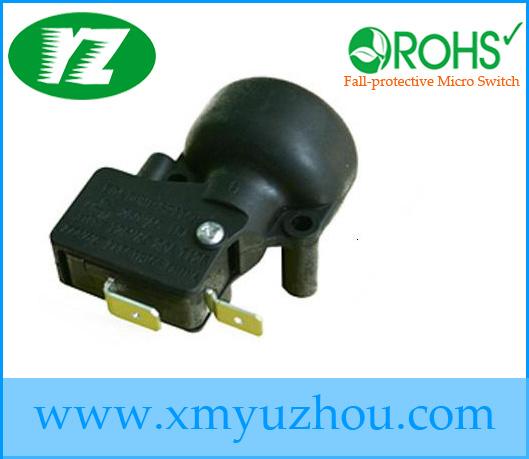

Micro Switch Fall Protection
Characteristics and usage:
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Long life, high reliability.
*Variety of contact terminals.
*Apply to Electric Warmer, Electrical fan home appliance, Electronic equipment.
Working Principle:
As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.
When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.
Why Choose Us?
Xiamen Universal Electronic Co., Ltd, is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.
Spirit of Enterprise:
Force Ahead, Never Stop
Core Values:
Through the work together to promote enterprise development, for society and the contribution of the shareholders at the same time, make great efforts to seek interests for the employees better.
Management Idea:
Take the market as the guide, quality win.
Quality Policy:
To provide perfect quality products and services, is each employee's code of conduct.
Certificates:
Focusing on products that are truly superior and innovative, our products have been awarded ISO9001 Quality Certification, have CB/TUV/CQC certificates.
Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Name: James Yan
Mobile: +86 13388659290
Tel: 86-579-86878277
Thank you for visiting our website. If you have more questions, please connect us freely. We will answer you as soon as possible.
| Item | Value |
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5° |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min |
| Insulation Resistance | 100 MΩ(500VDC) |
Contact Resistance | Gold-plated | Below 15 mΩ |
| No Gold-plated | 30-40 mΩ |
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Let switch fall freely from 200mm high into the cement flool or
Armor plate horizontal.
One time,one side(Up,dowm,left,right,front,back) |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=10000 cycles |
| Degree of protection | IEC IP40 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125Degree 60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35Degree) |
| Weight | Approx.39.7g |
| | | | |
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
