16A IP54 230V Schuko Panel Socket

Name: 16A IP54 230V Schuko Panel Socket
Brand: all-electronics-online.com
SKU: 746567955
Availability: InStock
Rating: 5 (111 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	QX11030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	16A
Voltage:	230V
IP:	IP54
Plastic Material:	Nylon(PA)
Grounding:	Standard Grounding
Type:	Without Switch
Application:	Industrial
IP Rating:	IP54

Product Description

1)European / International standards EN/IEC
60309-2
2)International Standard (Seven Star)plugs and sockets and connectors
3)IP54 CEE/IEC Connector, The tail with cable glands

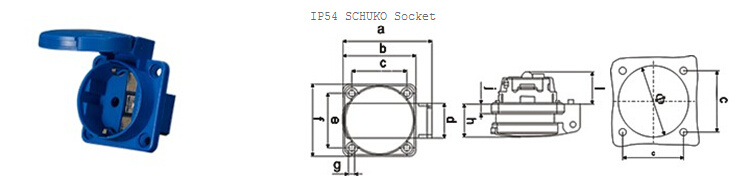

size(mm)	Amp	16	Amp	16
	Poles	2	Ploes	2
	a	61	i	21.7
	b	50	j	6.5
	c	38		44.5
	d	24.2	Conductor crosssectiomal area (mm²)Min. To Max
	e	38	Conductor crosssectiomal area (mm²)Min. To Max
	f	50	1.5-2.5
	g	4.5
	h	23

Zhejiang Qixing Electric Technology Co., Ltd

CONNECTING CHANGE THE WORLD

Qixing has become a leader in the manufacturing of industrial electrical products in China. Our primary manufacturing facilities are located in Wenzhou, China. Qixing has established sales and distribution organizations in over 20 countries worldwide.

Qixing is an established market leader in the manufacturing of IEC 60309 industrial plugs and sockets, connectors, additional device plugs, additional sockets, socket with swithes and mechanical interlock, dedicated refrigerated container plugs and sockets, and low-voltage plugs and sockets.

In order to achieve the goal of high quality, we have adopted and run with DIN ISO9001: 2000 international quality management system standard.

As an export-oriented enterprise, Qixing also get a range of international organizations' Product certification in related fields: CE, CCC, CB, TUV, GS.

Our objective is to produce products with un-compromised standards in materials, design and performance.
