| Prod Model: |
MS4-16TA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Switch Type: |
Safety Switch Fall Protective |
| Current: |
16A |
| Package: |
Carton |
| Voltage: |
250V |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Small-Sized |
| Breaking Form: |
Single Type |
| Environment: |
﹤250℃ |
| Brand: |
Yuzhou |
| Application: |
Heaters |
Product Description

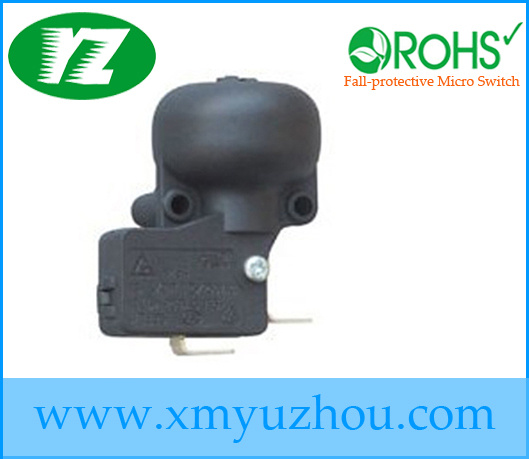

Safety Switch Fall Protective
Characteristics and usage:
*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Long life, high reliability.
*Variety of contact terminals.
*Apply to Electric Warmer, Electrical fan home appliance, Electronic equipment.
Working Principle:
As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.
When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.
Why Choose Us?
Good Quality, Competitive Price, Fast Delivery
Xiamen Universal Electronic Co., LTD is the industrial company, engaged in R&D, manufacturing, marketing and services. Established in the year 2005, we regarding the high starting point, high standard and high quality as our brand positioning.
Our Roller Door Tubular Motor are available for electric and manual operation, also supporting the use of wireless remote control. It performs good in self- locking and anti- theft, at the same time, it has the anti- fall function. The motor running in low noise, small vibration, applicable to 50HZ and 60HZ power.
Contact Person:
Ella Chen
Xiamen Universal Electronic co., Ltd.
HP: 86-15606002688
Tel: 86-592-5782488
| Item | Value |
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5° |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min |
| Insulation Resistance | 100 MΩ(500VDC) |
Contact Resistance | Gold-plated | Below 15 mΩ |
| No Gold-plated | 30-40 mΩ |
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Let switch fall freely from 200mm high into the cement flool or
Armor plate horizontal.
One time,one side(Up,dowm,left,right,front,back) |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=10000 cycles |
| Degree of protection | IEC IP40 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125Degree 60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35Degree) |
| Weight | Approx.39.7g |
|
|
|
|
1.
Degree of
Temperature |
No Mark:T125
|
4.
Terminal Types |
A:250 Quick-connect Terminal
B:187 Quick-connect terminal(Thick:0.8)
C: 187 Quick-connect terminal(Thick:0.5)
D:Solder/187 common terminal
E:Screw terminal
F:Solder terminal
G:250 Quick terminal No.2
Y:Not standard terminal
|
|
2.
Ratings
|
16:16(4)A250VAC/16A125VAC
1/2HP 125/250VAC
10:10(3)A250VAC/10A125VAC
6:6(2)A250VAC/6A125VAC
1:1(1)A250VAC/1A125VAC |
|
5.
Additional
Specis Numbers
Apply to:
|
1) When used not standard parts such as not standard terminals;
2) When Customer has particular
Operating value or other requirement
Additional specs number shows by Arabic numerals or Latin.color
Code after the numbers.If there is no Additional numbers,the place is vacant |
|
3.
Contact Forms
|
Z:SPDT
T:SPST-NO
D:SPST-NC |
|
