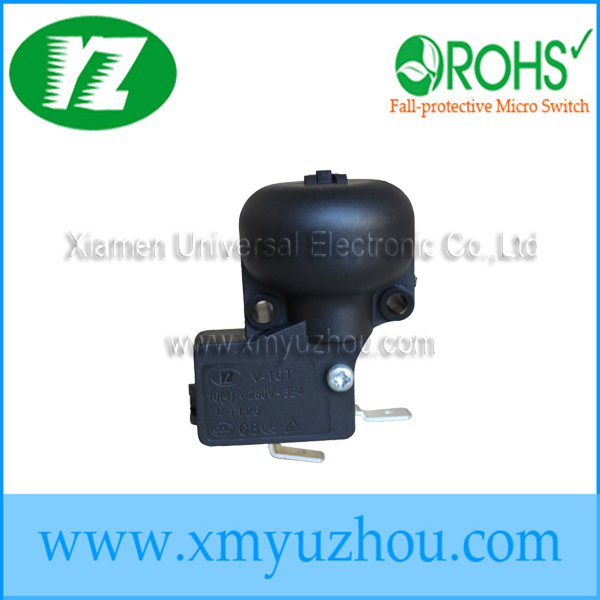

16A Sensitive Gas Heater Tilt Switch

16A Sensitive Gas Heater Tilt Switch
Price: US $ 0.68/Piece
Trade Terms: FOB
Min Order: 1000/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: V-16TA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory: Tilt Switch
Voltage: 125VAC/250VAC
Rated Current: 16A
Operating Frequency: Mechanical 60 Cycles/Min
Carton Size: 370mm*315mm*360mm
Certificates: CE, CB, TUV, CQC, etc
Pressing Type: Push-Button
Protection: Dust-Proof
Size: Small-Sized
Environment: ﹤250℃
Breaking Form: Single Type
Application: Heater/Radiator
Brand: Yuzhou

Product Description

Tilt Switch Specification:

Model: V-16T
Weight: Approx. 37.9g

Tilt Switch Features:
-Falll-Protect Switch
-Nice Appearance
-Reliable quality
-High sensitivity

Safty Switches Working Principle:

- As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.

- When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.

Ordering Information:
Port: FOB Xiamen/Shenzhen
Payment Terms: T/T, Western Union, paypal
Lead Time: 2-3 weeks
MOQ: 1000 PCS (300PCS/CTN)
Delivery: FedEx, UPS, TNT, DHL or others

Contact Person
Ivy Lan
Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Mobile: 86-15606003688
Tel: 86-592-5782488
Fax: 86-592-5664223
ItemValue
Fall-ProtectAction Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5°
Operating FrequencyMechanical 60 cycles/min;Electrical 6 cycles/min
Insulation Resistance100 MΩ(500VDC)

Contact Resistance
Gold-platedBelow 15 mΩ
No Gold-plated30-40 mΩ


Test Voltage
Between terminals of the same polarirtyAC1000V,50/60Hz,1min
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts

AC2000V,50/60Hz,1min
Vibration resistance10-55Hz,1.5mm Double amplitude

Shork Resistance
Let switch fall freely from 200mm high into the cement flool or
Armor plate horizontal.
One time,one side(Up,dowm,left,right,front,back)
Life ExpectancyMechnical>=5000000 cycles
Electrical>=10000 cycles
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
PTI(Tracking Resistance)175
Ambient air temperature125ºC 60%RH below(No ice and dew)
Ambient air humidity85% Rhbelow(about +5~+35ºC)
WeightApprox.39.7g
