| Prod Model: |
V-16-2A1C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Theory: |
Snap-Action Micro Switches |
| Rated Current: |
16A |
| Operating Force: |
300gf/3n |
Product Description

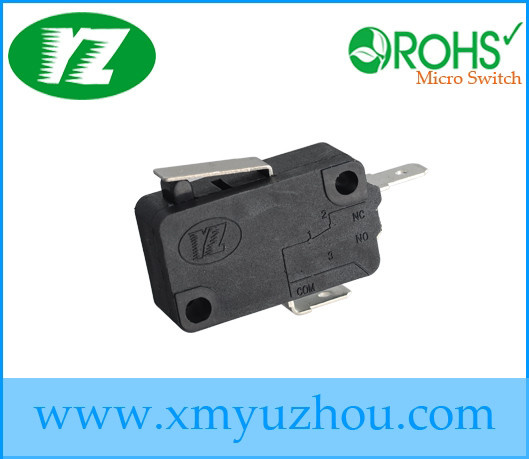

Snap-Action Micro Switches
Characteristics and usage:
1. Safe reliable basic switch
2. Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
3. Long life, high reliability.
4. Variety of contact terminals.
5. Variety of levers
6. A variety of models with low operating force to high force are sensitivity
7. Apply to microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, water heater, electric drill, electric radiator, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine, etc.
-High quality precision can satisfy most industries including automotive, white goods, security, vending and office automation and include standard types, low torque sealed switches and a number of industry specific models.
Microswitches controls of "On and Off" action. Easy for people to manipulate the applications. We could offer you high quality products. Just take one simple action, you can set up all your electronic equipment. All our products are activated by leaver or button. If you need some special forms, please contact us for further information. We make Electric Switch to fit kinds of your max-needs.
Brief Introduction of Our Company:
Xiamen Universal Electronic Co., Ltd. Is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.
|
Item |
Value |
|
Operating Speed |
0.1mm~1m/s(Related with actuator forms) |
|
Operating Frequency |
Mechanical 60 cycles/min; Electrical 30 cycles/min |
|
Insulation Resistance |
> =100 MΩ (500VDC) |
|
Contact resistance |
< =30mΩ (Initial value) |
Test Voltage |
Between terminals of the same polarirty |
AC1000V, 50/60Hz, 1min |
Between current-carrying metal
And ground(case), and between
Each terminal and non-carrying
metal parts |
AC3750V, 50/60Hz, 1min |
|
Vibration resistance |
10-55Hz, 1.5mm Double amplitude |
Shork Resistance |
Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max
OF< =0.5N: 500m/s ² (approx. 50G)max
Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max
OF< =0.5N: 200m/s ² (approx. 20G)max |
|
Life Expectancy |
Mechnical> =5000000 cycles
Electrical> =100000 cycles |
|
Degree of protection |
IEC IP40 |
|
Degree of protection against electric shock |
Class I |
|
PTI(Tracking Resistance) |
175 |
|
Ambient air temperature |
125degree60%RH below(No ice and dew) |
|
Ambient air humidity |
85% Rhbelow(about +5~+35degree) |
|
Weight |
Approx. 5.95g(No lever) |
Notes: Shows the operating force of no lever
Model Specs naming and meaning
1.
Degree of
Temperature |
No Mark: T125
|
5.
Terminal Types |
A: 250 Quick-connect Terminal
B: 187 Quick-connect terminal(Thick: 0.8)
C: 187 Quick-connect terminal(Thick: 0.5)
D: Solder/187 common terminal
E: Screw terminal
F: Solder terminal
G: 250 Quick terminal No. 2
Y: Not standard terminal |
|
2.
Ratings
|
16: 16(4)A250VAC/16A125VAC
1/2HP 125/250VAC
10: 10(3)A250VAC/10A125VAC
6: 6(2)A250VAC/6A125VAC
1: 1(1)A250VAC/1A125VAC |
|
6.
(max)
Operating Force |
051: 0.5N
025: 0.25N
050: 0.5N
100: 1N
150: 1.5N
200: 2N
300: 3N
400: 4N |
|
3.
Connect Forms |
1A: SPDT
2A: SPST-NC
3A: SPST-NO |
|
7
Plunger specs |
No mark: Standard Plunger
A: Middle Plunger
B: Long Plunger
C: Abnormality Plunger
( see dirgram )
Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company) |
|
4.
Acuator forms |
0: No lever
A 1/1: Short lever
A 2/2: Long lever
A 3/3: Middle lever
A 4/4: Short Roller lever
A 5/5: Long Roller lever
A 6/6: Arc lever
A / : Not standard lever
Note:
1) A indicate the lever near to the
Plunger, no A indicate the lever far
Away from the plunger.
2) If lever is amounted besides, add letter" B" after the lever code.
3) Indicate not standard lever |
|
8.
Additional Specis Numbers
Apply to:
|
1)When used not standard parts such as not standard terminals;
2)When Customer has particular Operating value or other requirement;
3) When the case is mot black, for example, grey shows as G;
Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant |
|
