Xiamen Universal Electronic Co., Ltd. >> 16A Tip Over Switch Heater Tilt Switch

16A Tip Over Switch Heater Tilt Switch

16A Tip Over Switch Heater Tilt Switch
Price: US $ 0.68/Piece
Min Order: 1000/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: V-16TA
The Theory: Heater Tilt Switch
Ratings: 16A
Voltage: 250V
Certificate: ISO/CB/TUV/CQC
Usage: Heaters, Electric Warmer

Product Description

16A Tip Over Switch Heater Tilt Switch

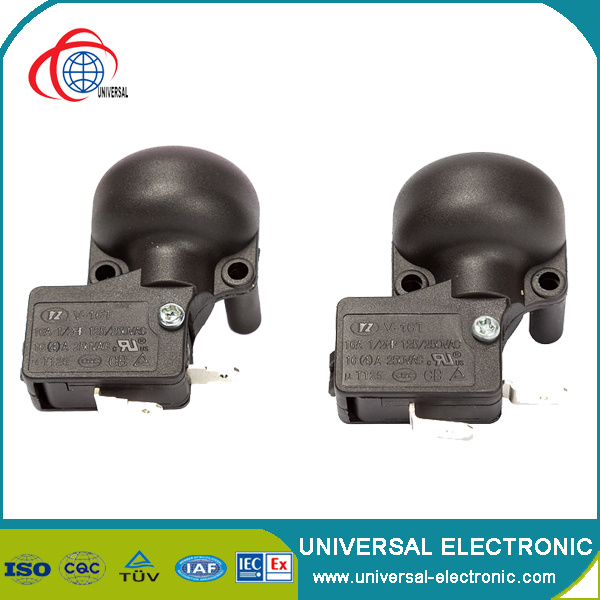

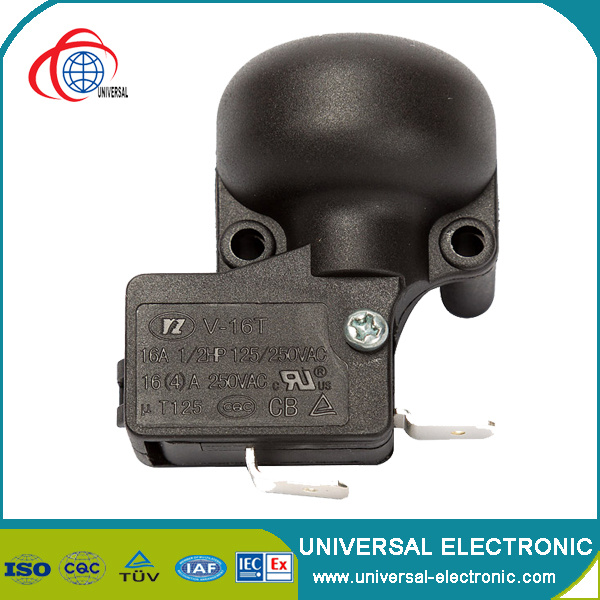

Pictures of Heater Tilt Switch / Dump Switch / Tip Over Switch



Characteristics and usage of
Heater Tilt Switch / Dump Switch / Tip Over Switch:

*Nice appearance, tight configuration, characteristic, quick action and high sensitivity.
*Long life, high reliability.
*Variety of contact terminals.
*Apply to Electric Warmer, Heaters, Electrical fan home appliance, Electronic equipment.

Working Principle of
Heater Tilt Switch / Dump Switch / Tip Over Switch:
As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.
When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.

Parameters of
Heater Tilt Switch / Dump Switch / Tip Over Switch:

ItemValue
Fall-ProtectAction Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5°
Operating FrequencyMechanical 60 cycles/min;Electrical 6 cycles/min
Insulation Resistance100 MΩ(500VDC)

Contact Resistance
Gold-platedBelow 15 mΩ
No Gold-plated30-40 mΩ
Test VoltageBetween terminals of the same polarirtyAC1000V,50/60Hz,1min
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts

AC2000V,50/60Hz,1min
Vibration resistance10-55Hz,1.5mm Double amplitude

Shork Resistance
Let switch fall freely from 200mm high into the cement flool or
Armor plate horizontal.
One time,one side(Up,dowm,left,right,front,back)
Life ExpectancyMechnical>=5000000 cycles
Electrical>=10000 cycles
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
PTI(Tracking Resistance)175
Ambient air temperature125Degree 60%RH below(No ice and dew)
Ambient air humidity85% Rhbelow(about +5~+35Degree)
WeightApprox.39.7g

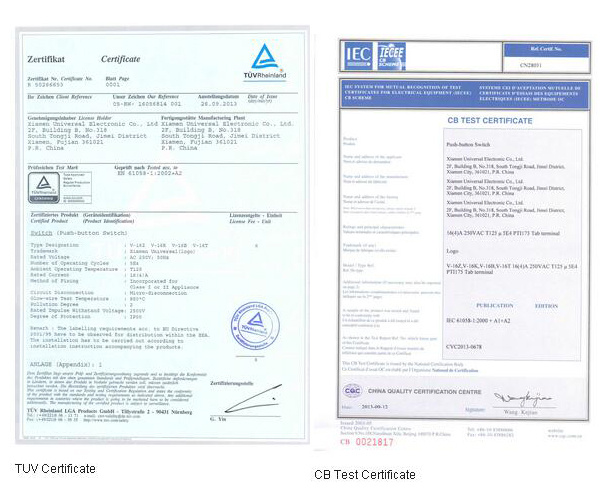

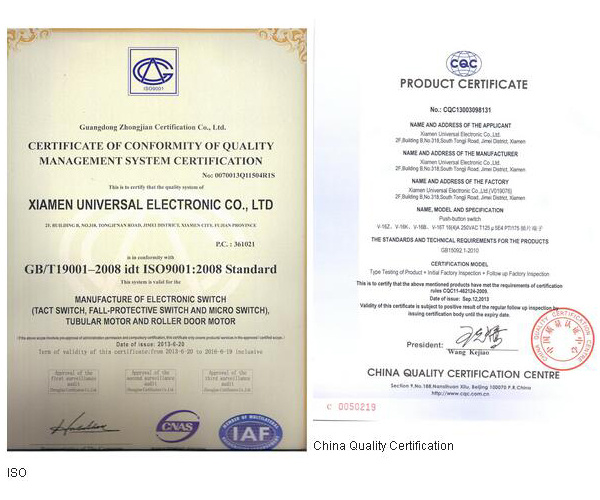

Certificates:


Contact Information:

Xiamen Universal Electronic Co.,Ltd

No.318. South Tongji Road, Jimei District, Xiamen City, Fujian,China

Mobile: 86-15606002688

Tel: 86-0592-5782488

Fax: 86-0592-5664223

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
