| Prod Model: |
TST80-EP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
85~265VAC,50/60Hz |
| Current Loading: |
16A |
| Temperature Control Range: |
5~75 Celsius |
| Temperature Control Precision: |
-2/0 Celsius |
| Sensors: |
Two Sensors(Floor Sensor+Air Sensor) |
| External Sensor Length: |
3m |
| Backlight: |
White/Blue/Green |
| Thermostat Working Environment: |
0~+45 Celsius |
| Dimension: |
86mmx86mmx15mm |
| Installation Box: |
European Standard Box |
| Certification: |
RoHS |
| Control Type: |
Digital |
| Type: |
Temperature Controller |
| Display Type: |
LCD |
| Usage: |
Floor Heating |
| Material: |
PC Engineer Plastic |
| Operating Principle: |
Electrical Floor Radiation Heating |
| Cooling Purpose: |
Room Temperature Control |
| Brand: |
Beok Controls |
Product Description

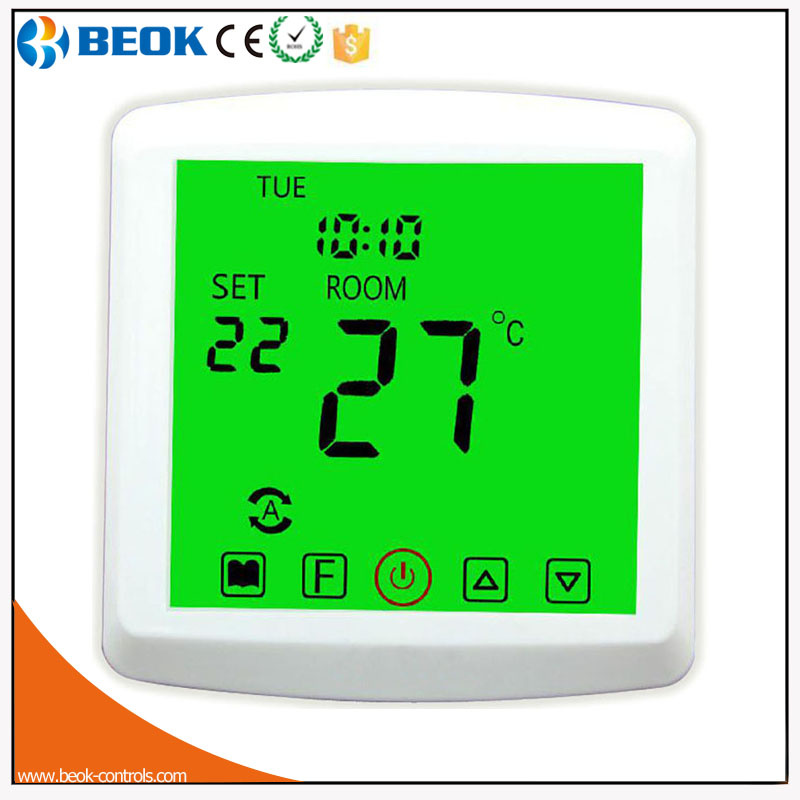

16A Touch Screen Room Control Thermostat
1. Product Summary
TST80-EP Thermostat is used to control the temperature of heating elements in industrial, commercial and domestic room floor heating system, expecially in electrical heating systems.
It is generally used to control heating applications, such as heating films, heating cables and heating mats. |
2. Product Technical Parameter
| Working Voltage | AC 85~265V, 50-60Hz |
| Currant Load | 16A |
| Temp Control Accuracy | -2/0 Celsius |
| Consumption | 1W |
| Setting Temp | 5-75 Celsius |
| Terminal | Connect 1x4mm 2 Wire |
| Installation | Wall Inserted Installation |
| Installation Box Dimension | 80mmx80mm European Standard Box |
3. Product Features
About TST80-EP Thermostat Main Features & Functions---
| 1. | With foreign wide voltage technology, make power more stable |
| 2. | With 5+2 Weekly Programmable function, customer can set 4 periods time per day; |
3.
| With Three Sensor Modes:
S1- Internal sensor detects temperature; |
| S2- External sensor detects temperature; |
| S3- Internal sensor detects temperature. external sensor limits temperature; |
| 4. | With Thermostat State Memory Optional function; |
| 5. | With Child Lock function, to prevent wrong operation; |
| 6. | With Anti-freeze function; |
About TST80-EP Thermostat State Memory Optional Function--
In thermostat Advanced Parameter Setting, you can choose "06 0" or "06 1".
|
0 stands for not to memorize thermostat power state. In this mode, no matter thermostat is in working state or standby state, when the power failure, and power on again, it will get into the standby state by default. Thermostat factory set is 0;
|
1 stands for to memorize thermostat power state. In this mode, before power is failure, if thermostat is on the working state, after power is on, thermostat will automatically get into working state too; if thermostat is in standby state, after power is on, thermostat will get into standby state too.
|
About Thermostat Programmable Function---
| Periods | Working Days | Weekends(Saturday+Sunday) |
| First Period | Heating
06:00 22 Celsius | Heating
07:00 22 Celsius |
| Second Period | Heating
08:00 18 Celsius | Heating
10:00 22 Celsius |
| Third Period | Heating
16:00 22 Celsius | Heating
14:00 22 Celsius |
| Forth Period | Heating
22:00 18 Celsius | Heating
22:00 18 Celsius |
4. Product Model Spec
Att: We also have TST80-WP thermostat to control valves, thermal actuators in water heating system.
| Model | Current Loading | Sensors |
| TST80-EP | 16A | With Two Sensors |
| TST80-WP | 3A | With Only Internal Sensor |
5. Product Package
In the Inner packing box, you will find:
| Thermostat | 1pc |
| External Sensor(Floor Sensor) | 1pc |
| User Manual | 1pc |
| Screws | 2pcs |
| Drayer | 1pc |
