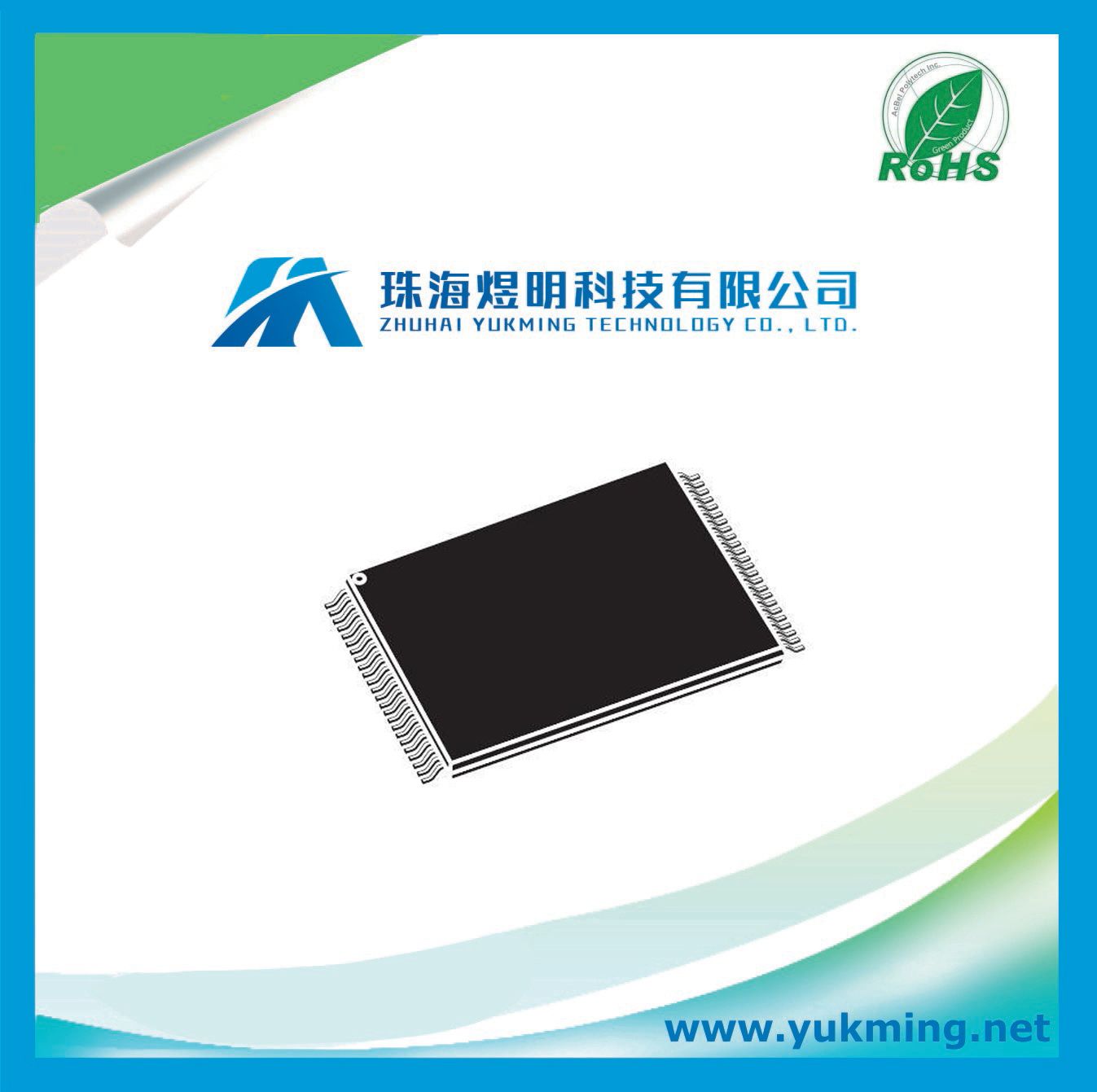

16m X 8 Bit Nand Flash Memory IC Integrated Circuit

Product Description

16M x 8 Bit NAND Flash Memory

FEATURES
· Voltage Supply
 - K9F2808Q0B : 1.7~1.9V
 - K9F2808U0B : 2.7 ~ 3.6 V
· Organization
 - Memory Cell Array : (16M + 512K)bit x 8bit
 - Data Register : (512 + 16)bit x8bit
· Automatic Program and Erase
 - Page Program : (512 + 16)Byte
 - Block Erase : (16K + 512)Byte
· 528-Byte Page Read Operation
 - Random Access : 10ms(Max.)
 - Serial Page Access
 - K9F2808Q0B : 70ns
 - K9F2808U0B : 50ns
· Fast Write Cycle Time
 - Program Time
 - K9F2808Q0B : 300 ms(Typ.)
 - K9F2808U0B : 200ms(Typ.)
 - Block Erase Time : 2ms(Typ.)
· Command/Address/Data Multiplexed I/O Port
· Hardware Data Protection
 - Program/Erase Lockout During Power Transitions
· Reliable CMOS Floating-Gate Technology
 - Endurance : 100K Program/Erase Cycles
 - Data Retention : 10 Years
· Command Register Operation
· Package

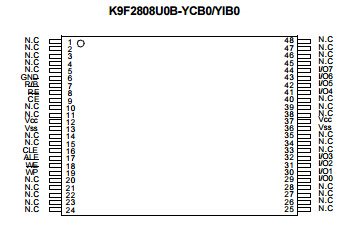

 - K9F2808U0B-YCB0/YIB0 :

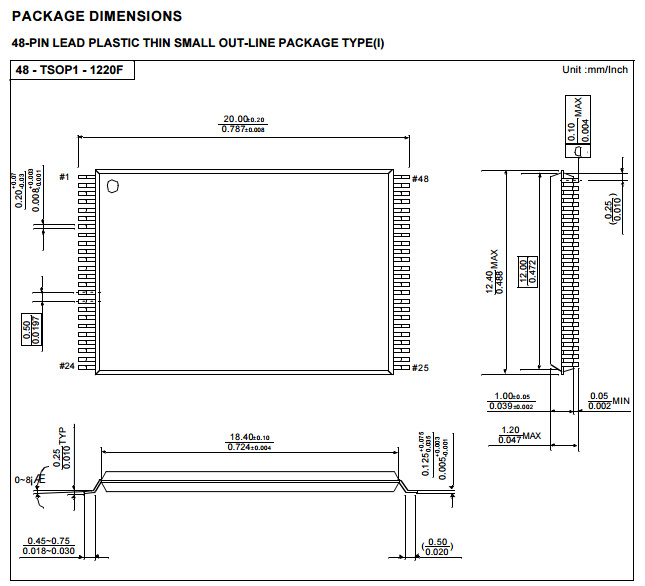

 48 - Pin TSOP I (12 x 20 / 0.5 mm pitch)
 - K9F2808X0B-DCB 0/DIB0
 63- Ball TBGA ( 9 x 11 /0.8mm pitch , Width 1.0 mm)
 - K9F2808U0B-VCB0/VIB0
 48 - Pin WSOP I (12X17X0.7mm)
 * K9F2808U0B-V(WSOPI ) is the same device as
 K9F2808U0B-Y(TSOP1) except package type.

Description
The K9F2808X0B is a 16M(16,777,216)x8bit NAND Flash Memory with a spare 512K(524,288)x8bit. The device is offered in 1.8V or 3.3V Vcc. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. A program operation programs the 528-byte page in typical 200ms and an erase operation can be performed in typical 2ms on a 16K-byte block. Data in a page can be read out at 70ns/50ns(K9F2808Q0B:70ns, K9F2808U0B:50ns) cycle time per byte. The I/O pins serve as the ports for address and data input/output as well as command input. The on-chip write control automates all program and erase functions including pulse repetition, where required, and internal verification and margining of data. Even write-intensive systems can take advantage of the K9F2808X0B's extended reliability of 100K program/erase cycles by providing ECC(Error Correcting Code) with real time mapping-out algorithm. The K9F2808X0B is suitable for use in data memory of mobile communication system to reduce not only mount area but also power consumption.
