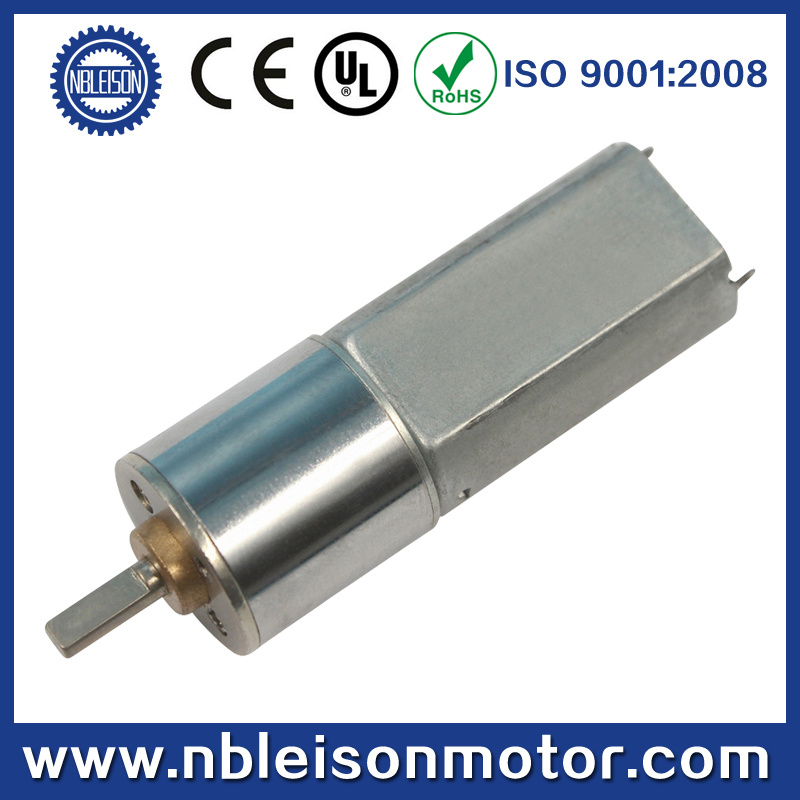

16mm 6 Volt 12 Volt Micro Brushed DC Gear Motor

Name: 16mm 6 Volt 12 Volt Micro Brushed DC Gear Motor
Brand: all-electronics-online.com
SKU: 771740725
Availability: InStock
Rating: 5 (61 reviews)

Price:	US $ 3.58-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS-16GA050
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Construction:	Permanent Magnet
Commutation:	Brush
Rotation Direction:	Reversible
Shaft:	Round, D-Cut, Hole Thread or Other Customized
Gear Type:	Spur Gear
Lubrication:	Grease
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Application:	Robot, Toys, Door Lock, Monitor

Product Description

1. Voltage: 1.5, 3V, 4.5V, 5V, 6V, 7V, 9V, 12V

2. Speed: 10-1000rpm, Other special speed can be requirement

3. Reductin Ratio: 1: 13, 1: 16, 1: 26, 1: 32, 1: 37.1: 45, 1: 75, 1: 91, 1: 105, 1: 128, 1: 148, 1: 210, 1: 256, 1: 296, 1: 362 1: 592, 1: 763, 1: 825, 1: 1035

4. Rated toque: 0.1-3kg. Cm.

5. Dimension: 16mm dia gearbox, 26.9mm motor body length, 3mm shaft diameter, 11-17mm gearbox length 10mm standard shaft length

6. Application in: Robot, Automatic Door Lock, Toys, Toothbrush, Monitor

7. Can accept customizied requirment

The datasheet only typical data for reference, Please fell free to contact with me if you want this motor

Specificaton or drawing.

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFIENCY					STARTING
	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TOROUE		OUTPUT	TOROUE		CURRENT
	NOMINAL	r/min	mA	r/min	mA	mN. m	g. cm	W	mN. m	g. cm	mA
LS-16GA050-33	12	350	50	290	170	14.7	150	0.45	98	1000	700
LS-16GA050-50	12	230	50	180	170	23.52	240	0.45	147	1500	700
LS-16GA050-362	6	31	100	25	320	196	2000	0.36	950	9670	1300
LS-16GA050-62	12	140	60	100	200	39.2	400	0.41	245	2500	500

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
