| Prod Model: |
MR-16PR3K WITH MF-1627 |
| Usage: |
Dildos |
| Application: |
Lock |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce,RoHS |
| Brand: |
Mipre |
Product Description

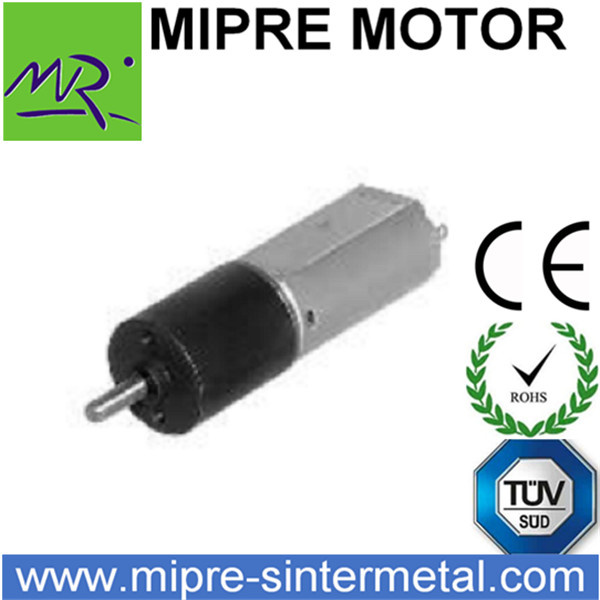

SPECIFICATION PM DC Planetary Gear Motor
Model No.: MR-16PR3K/MF-1627
16mm OD Planetary Gearbox, Permissible Load Range:0.3N.m MAX |

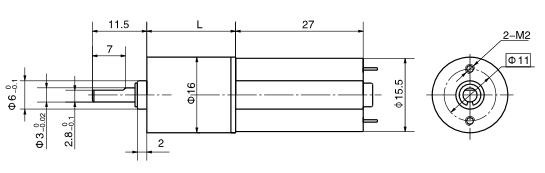

| Dimensions(mm) |
 |
| Driving Motor Technical Data |
| Type | Rated Voltage VDC | No load speed rpm | No load current mA | Rated speed rpm | Rated torque mN.m | Output power W | Rated current mA |
| MF-1627-0237 | 2 | 3700 | 38 | 3000 | 0.29 | 0.092 | 110 |
| MF-1627-0881 | 8 | 8100 | 23 | 6610 | 0.63 | 0.44 | 100 |
| MF-1627-07104 | 7 | 10400 | 45 | 8500 | 0.69 | 0.61 | 170 |
Gear Motor Technical data
-With MF-1627-0237 motor |
| Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 | 361 | 428 | 509 | | | | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | | | | |
| Gearbox length L(mm) | 11.4 | 11.4 | 14.1 | 14.1 | 14.1 | 18.8 | 18.8 | 18.8 | 18.8 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | | | | |
| No load speed(rpm) | 925 | 779 | 231 | 195 | 168 | 58 | 49 | 41 | 35 | 14 | 12 | 10 | 8.6 | 7.3 | | | | |
| Rated speed(rpm) | 750 | 632 | 188 | 158 | 136 | 47 | 39 | 33 | 28 | 12 | 9.9 | 8.3 | 7.0 | 5.9 | | | | |
| Rated torque(mN.m) | 1.0 | 1.2 | 3.8 | 4.5 | 5.2 | 14 | 16 | 19 | 23 | 48 | 57 | 68 | 81 | 96 | | | | |
| Max. Permissible load in a short time(mN.m) | 90 | 90 | 450 | 450 | 450 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 900 | | | | |
-With MF-1627-0881 motor| Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 | 361 | 428 | 509 | | | | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | | | | |
| Gearbox length L(mm) | 11.4 | 11.4 | 14.1 | 14.1 | 14.1 | 18.8 | 18.8 | 18.8 | 18.8 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | | | | |
| No load speed(rpm) | 2025 | 1705 | 506 | 426 | 368 | 127 | 107 | 90 | 76 | 32 | 27 | 22 | 19 | 16 | | | | |
| Rated speed(rpm) | 1653 | 1392 | 413 | 348 | 300 | 103 | 87 | 73 | 62 | 26 | 22 | 18 | 15 | 13 | | | | |
| Rated torque(mN.m) | 2.3 | 2.7 | 8.2 | 9.7 | 11 | 29 | 35 | 41 | 49 | 105 | 124 | 148 | 175 | 208 | | | | |
| Max. Permissible load in a short time(mN.m) | 90 | 90 | 450 | 450 | 450 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 900 | | | | |
-With Mf-1627-07104 motor| Reduction ratio | 4 | 4.75 | 16 | 19 | 22 | 64 | 76 | 90 | 107 | 256 | 304 | 361 | 428 | 509 | | | | |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | | | | |
| Gearbox length L(mm) | 11.4 | 11.4 | 14.1 | 14.1 | 14.1 | 18.8 | 18.8 | 18.8 | 18.8 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | | | | |
| No load speed(rpm) | 2600 | 2189 | 650 | 547 | 473 | 163 | 137 | 116 | 97 | 41 | 34 | 29 | 24 | 20 | | | | |
| Rated speed(rpm) | 2125 | 1789 | 531 | 447 | 386 | 133 | 112 | 94 | 79 | 33 | 28 | 24 | 20 | 17 | | | | |
| Rated torque(mN.m) | 2.5 | 2.9 | 8.9 | 11 | 12 | 32 | 38 | 45 | 54 | 115 | 136 | 162 | 192 | 228 | | | | |
| Max. Permissible load in a short time(mN.m) | 90 | 90 | 450 | 450 | 450 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 900 | | | | |
1. Motor's voltage, speed, torque, shaft can accept customizied requirment after evaluation.2. The datasheet and price range only typical data for reference, Gear motor's price are usually decide byMotor's reduction ratio and torque. Please fell free to contact with me if you want this motor's Specificaton, unit price or samples.Product Application| Applications: |
| Business Machines: | ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines. |
| Food and Beverage: | Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers. |
| Home Entertainment and Gaming: | Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys. |
| Home Technologies: | Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines. |
| Lawn and Garden: | Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers. |
| Personal Care: | Hair Cutting, Hair Care, Massagers. |
| Power Tools: | Drills and Drivers, Sanders, Grinders, Polishers, Saws. |
| Camera and Optical: | Video, Cameras, Projectors. |

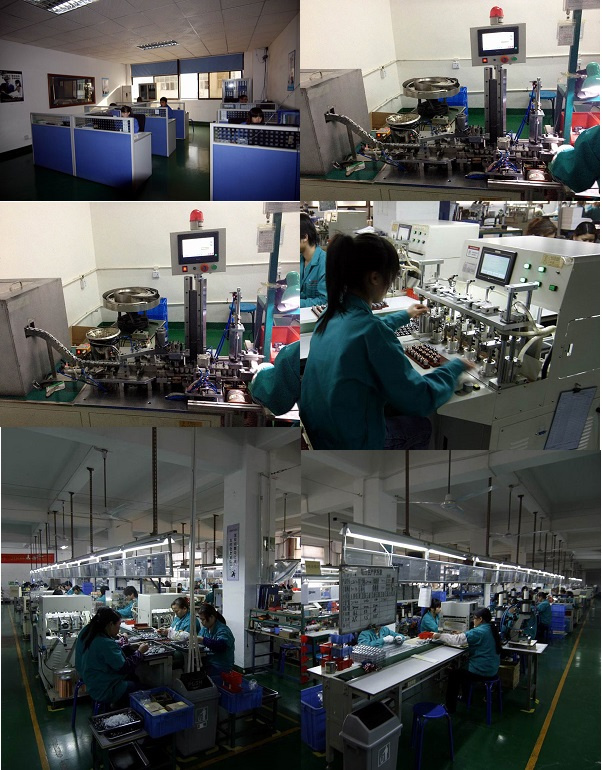

Our company:
FAQQ: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
