| Prod Model: |
DC Motor GM16-050SH |
| Product Name: |
DC Gear Motor GM16-050SH |
| Gear Type: |
spur teeth |
| Basilar Plate: |
Copper |
| Bearing At Output: |
Sleeve Bearing |
| Axial Play: |
0.05-0.5mm |
| Reduction Ratio: |
3 -1000 |
| Rotating Direction: |
CW/CCW |
| Life Expectency: |
500hours |
| Shaft Diameter: |
3-6mm |
| Rear Shaft Extensions: |
customized |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brush |
| Excitation Mode: |
Permanent Magnet |
| Type: |
DC Gear Motor |
| Certification: |
RoHS,CE |
| Brand: |
TT motor |
Product Description

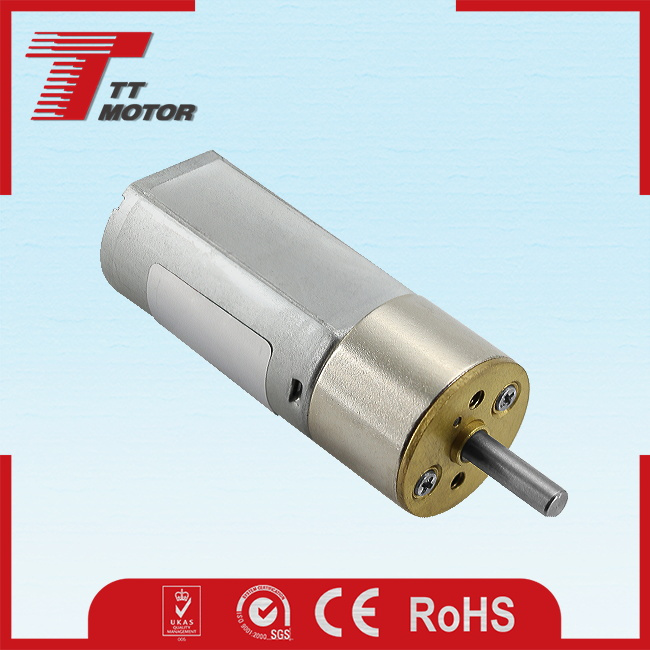

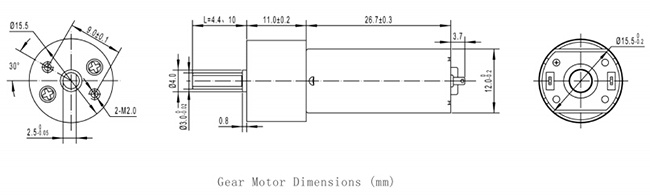

16mm dc gear gearbox 12v mini electric motor
Main Features:1.16mm gearbox plus 030&050 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.16mm gear motor provide 0.05Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Dc gear motors can match encoder,3ppr
6.Reduction ratio:3
,10
,17
,20
,35
,63
,86
,115
,150
,250
,360
Home appliance, electric curtai, door lock, automatic tv rack, slot machine, currency acount machine, office autination, automatic door lock.
| odel no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TFF-050SH-13120 | 6.0 | 12500 | 45 | 10000 | 10 | 225 | 1.03 | 50 | 1.30 |
| TFF-050SH-07360 | 12.0 | 8000 | 30 | 5700 | 10 | 110 | 0.6 | 33 | 0.29 |
| TFF-050SH-08240 | 12.0 | 12800 | 35 | 9500 | 10 | 150 | 0.99 | 43 | 0.55 |
Gear motor technical data : GM16-050SH-13120-xxx| Reduction ratio | 3 | 10 | 20 | 35 | 63 | 86 | 115 | 150 | 250 | 360 |
| Length mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| No-load speed rpm | 4000 | 1200 | 600 | 340 | 190 | 140 | 105 | 80 | 50 | 35 |
| Rated speed rpm | 3300 | 1000 | 500 | 285 | 158 | 116 | 92 | 73 | 46 | 33 |
| Rated torque kg.cm | 0.024 | 0.08 | 0.14 | 0.25 | 0.44 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max.momentary tolerance torque kg.cm | 0.12 | 0.4 | 0.7 | 0.8 | 1.1 | 1.9 | 2.6 | 3.0 | 3.0 | 3.0 |
Gear motor technical data : GM16-050SH-07360xxx
| Reduction ratio | 3 | 10 | 20 | 35 | 63 | 86 | 115 | 150 | 250 | 360 |
| Length mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| No-load speed rpm | 2500 | 750 | 380 | 220 | 120 | 90 | 68 | 52 | 32 | 22 |
| Rated speed rpm | 1900 | 570 | 285 | 160 | 90 | 65 | 53 | 43 | 28 | 20 |
| Rated torque kg.cm | 0.024 | 0.08 | 0.14 | 0.25 | 0.44 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max.momentary tolerance torque kg.cm | 0.12 | 0.4 | 0.7 | 0.8 | 1.1 | 1.9 | 2.6 | 3.0 | 3.0 | 3.0 |
Gear motor technical data : GM16-050SH-08240-xxx| Reduction ratio | 3 | 10 | 20 | 35 | 63 | 86 | 115 | 150 | 250 | 360 |
| Length mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| No-load speed rpm | 4100 | 1230 | 620 | 350 | 200 | 145 | 110 | 85 | 50 | 36 |
| Rated speed rpm | 3150 | 950 | 475 | 270 | 150 | 110 | 82 | 73 | 46 | 33 |
| Rated torque kg.cm | 0.024 | 0.08 | 0.14 | 0.25 | 0.44 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max.momentary tolerance torque kg.cm | 0.12 | 0.4 | 0.7 | 0.8 | 1.1 | 1.9 | 2.6 | 3.0 | 3.0 | 3.0 |
Product ApplicationAutomatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
1.Accessory of automobile 2.Paper feed3.Widely used in automatic actuator,electric lock4.Power Lock,Monitor5.Precision instrument6.Mini mechanism,Robot7.Financial apparatus,auto DVD8.Financial apparatus, Ad equipmentRelated Products
Packing & DeliveryPackaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country
