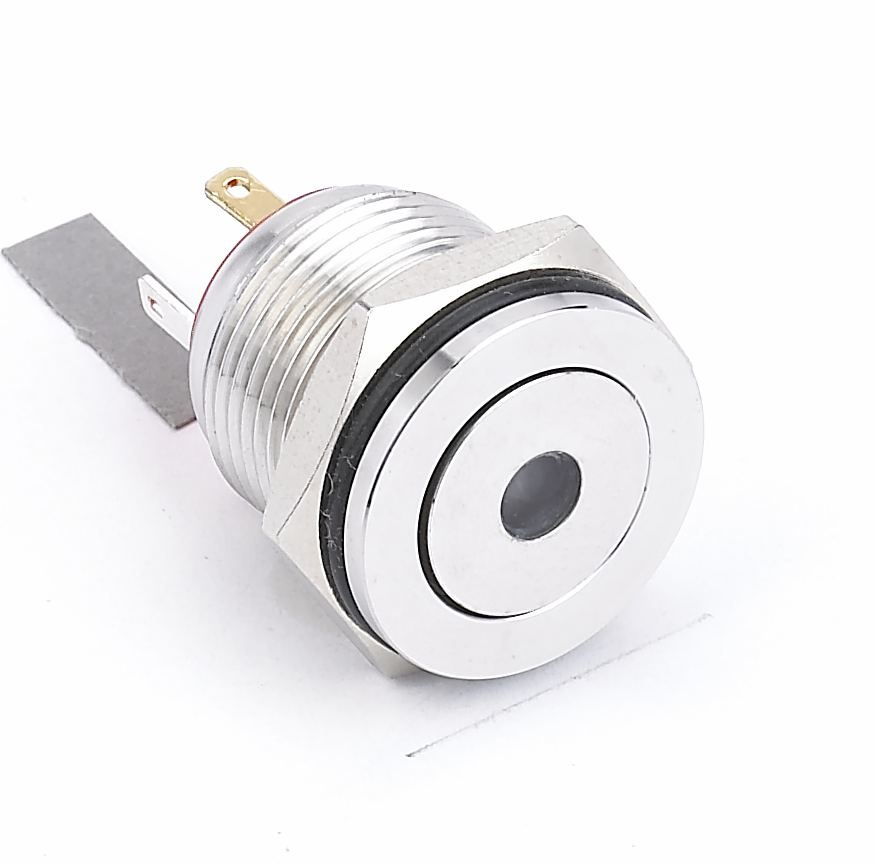

16mm DOT-Illuminated Hyperplane Flat Round Momentary Metal Push Button Switch

Name: 16mm DOT-Illuminated Hyperplane Flat Round Momentary Metal Push Button Switch
Brand: all-electronics-online.com
SKU: 787214375
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	US $ 1.58-1.64/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ16PF-10D/J
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	16mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V
Termianl:	Pin/Screw Terminal
IP:	IP65, Ik08
Crust Material:	Stainless Steel/Nickel-Plated Brass/Zn-Al Alloy
The Front Shape:	Hyperplane Flat Round
Operation Type:	Momentasry
Configuration Contact:	1 No/1nc
Certificate:	CCC Ce RoHS TUV UL SGS ISO9001
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Brand:	Hban
Contact Type:	X
Certification:	RoHS, TUV

Product Description

HBGQ16PF-10D/J 16mm metal pushbutton switch

Item NO.:HBGQ16PF-10D/J
Mounting Hole Size:Dia.16mm
Protection Degree:IP65,IK108
Lamp Color:Red / Green / Yellow / Orange / Blue / White
CE ROHS CERTIFICATE
The Crust Material:Stainless steel/Zn-al alloy/Nickjel-plated brass

Packing Details:

We pack 40 pieces diameter 16mm switches into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel :0086-577-62708000 Fax :0086-577-62708007

Item NO.		16mm metal hyperplane pushbutton switch
Specification		Momentary
Head Shape		hyperplane flat
Terminal Type		pin Terminal
Dielectric Strength		2000VAC
Operating Temperature		-20 degree ~ + 55 degree
Panel Thickness		1~10 mm
Torque		5~14Nm
Protection Degree		IP65,IK08
Material	Shade	PC
	Case	Stainless steel/Zn-al alloy/Nickjel-plated brass
	Base	PBT
Lamp Specification	Type	Push Botton Switch
	Rated Voltage	2V /6V/12V/24V/36V/110V/220V
	Rated Current	About 15mA ~3 mA
	LED Color	Red /Green/Yellow/Orange/Blue/White
	LED Lifetime	50000 hours
