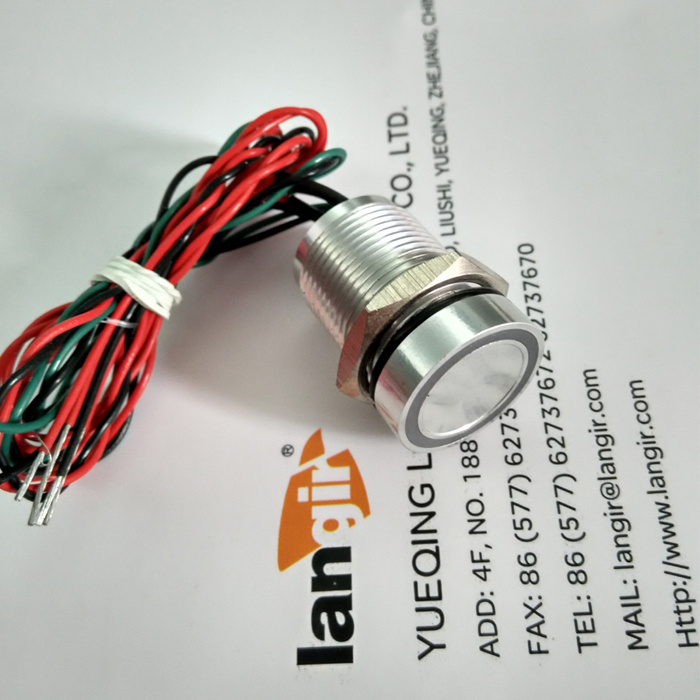

16mm Dual Color (Bi-Color) Green/ Red Momentary Piezo Switch IP68

Name: 16mm Dual Color (Bi-Color) Green/ Red Momentary Piezo Switch IP68
Brand: all-electronics-online.com
SKU: 802210435
Availability: InStock
Rating: 4.3 (89 reviews)

Price:	US $ 9.5-10.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PZ160R1N1NOMRG
Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	Langir
Model Number:	Piezo Switch
Protection Level:	IP68
Front Head:	Flat Round/Concave
Terminal:	Wired
Shell Color:	Red/Green
Product Material:	Aluminum
Size:	16mm
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Brand:	Langir

Product Description

Specifications

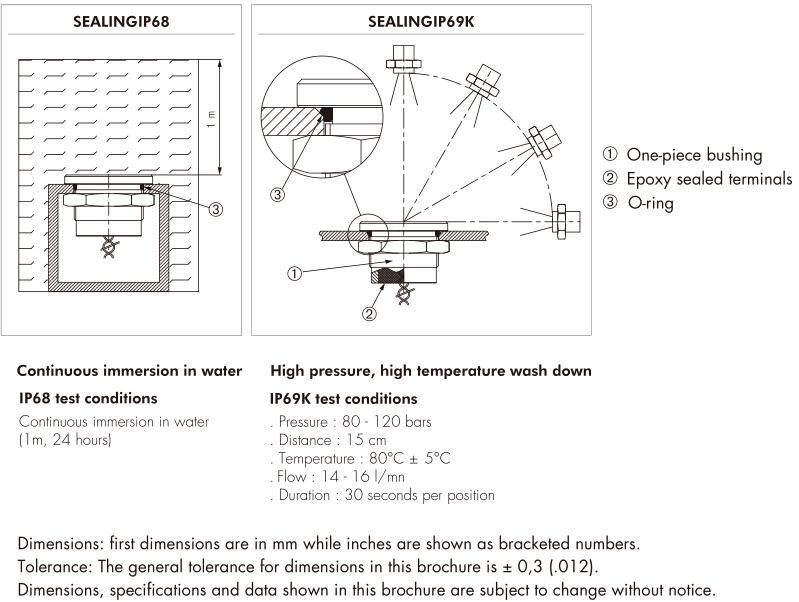

Sealed to IP 68 and IP69K
Easy to clean metal surface
Very long life expectancy

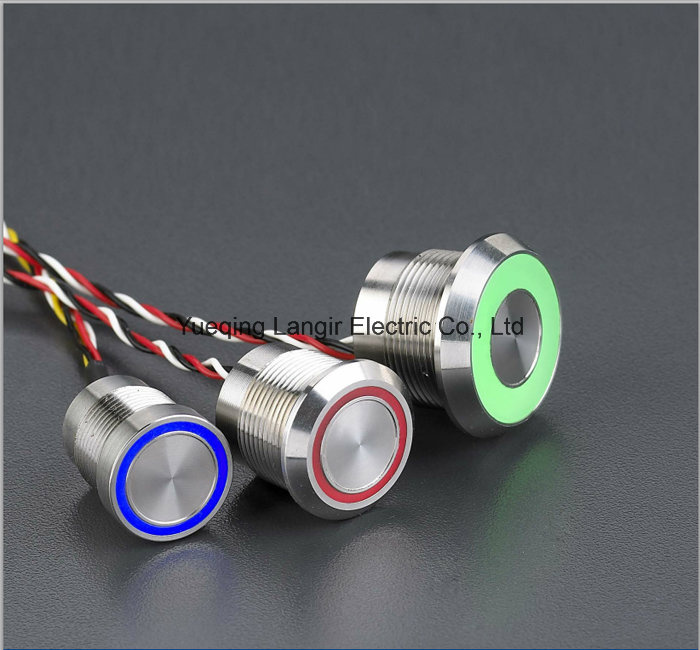

Ring or dot illumination
Features
Sealed to IP 68 and IP69K (switches mounted on panel)
Easy to clean metal surface
Very long life expectancy
Ring or dot illumination

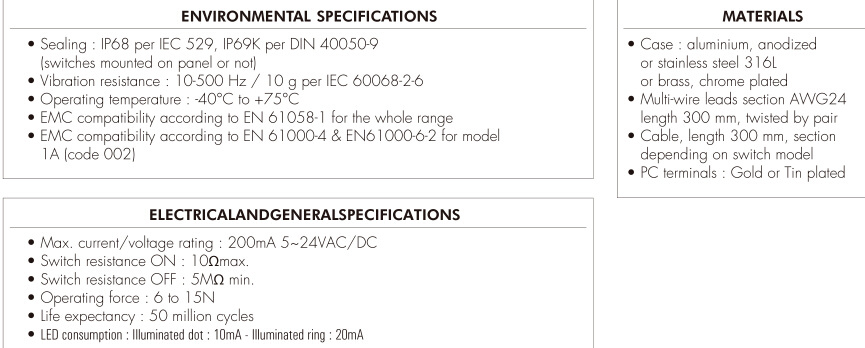

Technical
Max. current/voltage rating : 200mA 5~24VAC/DC
Switch resistance ON : 10 max.
Switch resistance OFF : 5M min.
Operating force : 6 to 15N
Life expectancy : 50 million cycles
LED consumption : Illuminated dot : 10mA - Illuminated ring : 20mA
Case : aluminium, anodized or stainless steel 316L

Electrical Data
Functions	Momentary / Latching
Contact Arrangement	SPST N.O. / N.C.
Pulse Duration	125 - 300mS Momentary only
Prolonged	up to 6 sec
Voltage	1 - 24V AC/DC
Switching Current	0.2A /1A
Rated Breaking Capacity	1W
Operating Cycles	>50,000,000
Switch Resistance OFF	> 5 MΩ
Switch Resistance ON	< 20 Ω
Capacity	30pF
Contact Configuration	Free polarity

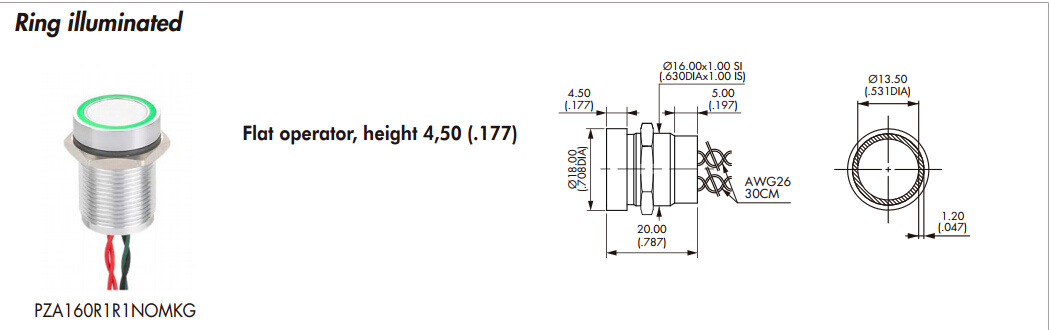

Mechanical Data
Material	Aluminium 6061 T651/ Stainless Steel 316L
Actuating Force	3 - 5N
Connection	Wires, Pins, Cables
Actuating Travel	0.002mm
Shock Protection	IK 06
Fastening Torque	2.5Nm
Anodize Colors	Gold / Red / Blue / Black / Green / Natural
Environmental Data
Operating Temperature	-40°C to 75°C std.
IP Protection	IP69K (front and back)

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
