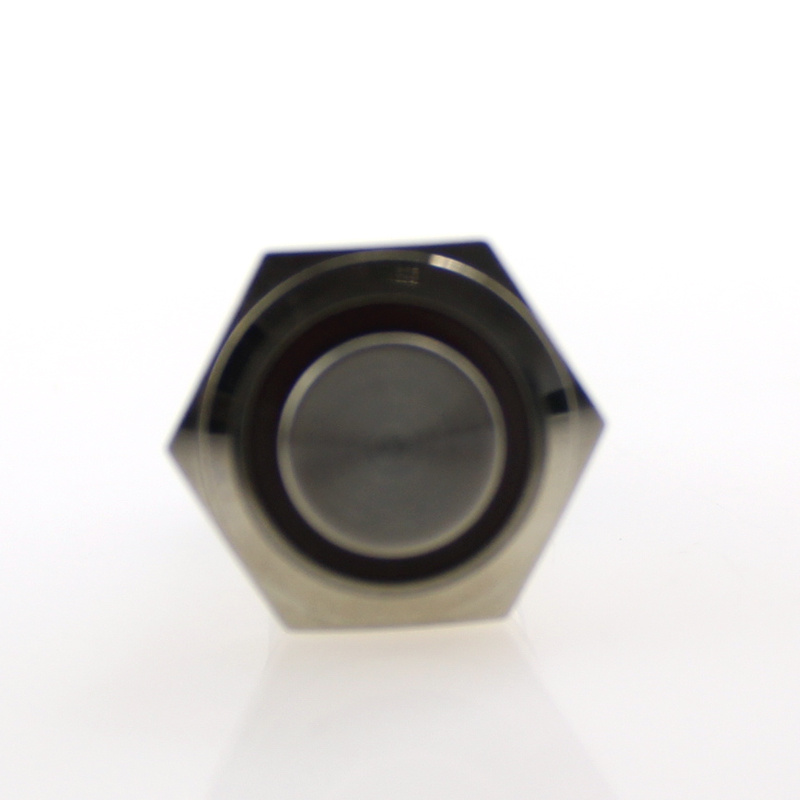

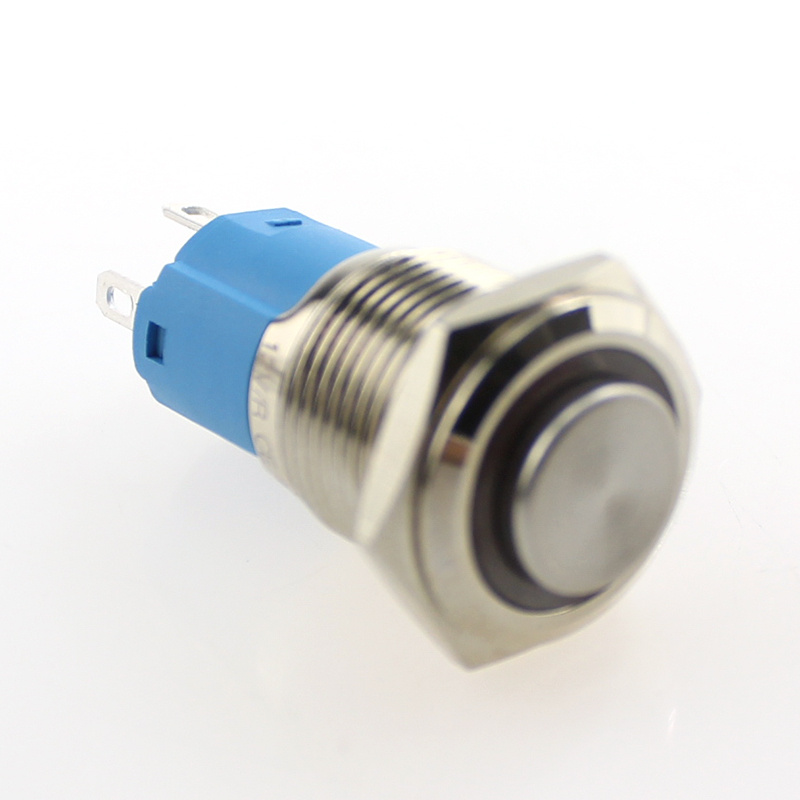

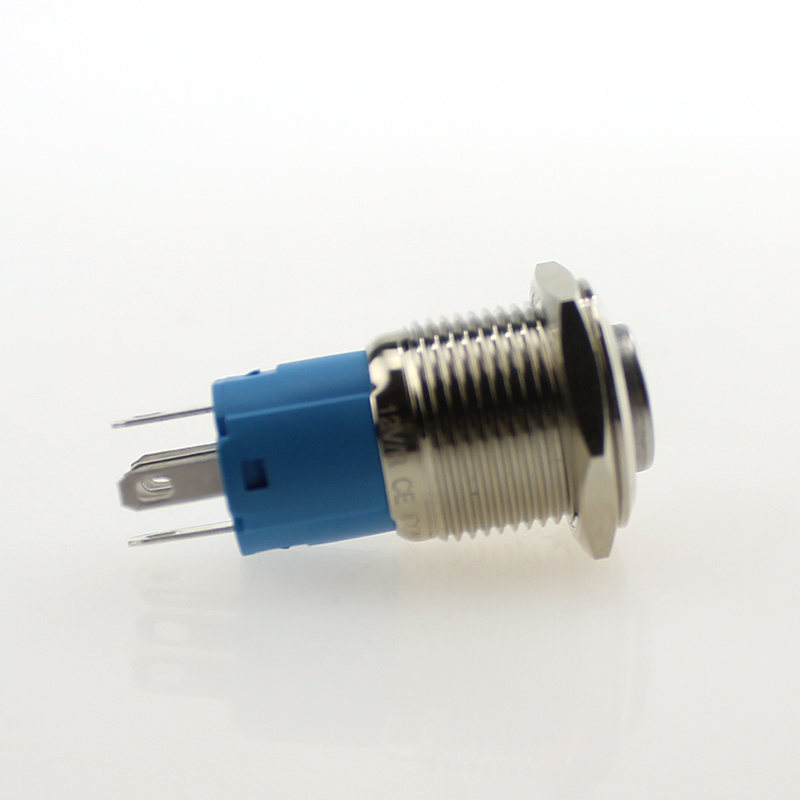

16mm High Flat Stainless Steel Momentary Metal Push Button Switch with Lamp
| Price: |
US $ 1.8-3/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
ABS16C-G11-E |
| Lamp Type: |
Ring Lamp |
| Lamp Color: |
Red, Green, Yellow, Blue, White |
| Lamp Voltage: |
12V |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
1no+1nc |
| Brand: |
Yumo |
Product Description
16mm High flat Stainless Steel Momentary Metal Push Button Switch with lampMetal Switch Features- With the stability of the connection performance,the use of security equipment.
- Beautiful,high end ,fashion design
- Medical grade imported stainless stell material,environmental is beautiful with no rust.
- Protection performance IP67,waterproof,dust can be competent for the harsh environment.
- Compact design,compact size,can be used for any small equipment.
| ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
| Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
| 08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V |
| 12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V |
| 16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V |
| 19mm | C:Power mark | W:White | 24V |
| 22mm | | 00:Four bit terminal | | 36V |
| 25mm | S:Stainless steel | | T:Custom patterm | | 48V |
| | | | | 110V |
| | P:Plastics | | | | | 120V |
| Parameter | ABS16S-P11-E | |
| Diameter | 19mm | |
| Color | R G Y O B W P RG RB | | |
| Switch Rating | 5A/250VAC | |
| Contact Configuration | 1NO 1NC/2NO 2NC | |
| |
| Operation Type | Momentary/Maintained(Z) | |
| |
| The Front Shape | Flat | |
| |
| Lamp type | Ring llluninated(LED) | |
| The Crust Material | Stainless steel/Copper plating | |
| |
| IP Degree | IP67, IK10 | |
