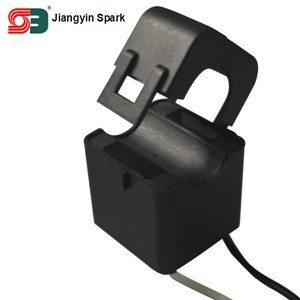

16mm Hole Size High Accuracy Current Sensor Split Core 100A/33.3mA

Name: 16mm Hole Size High Accuracy Current Sensor Split Core 100A/33.3mA
Brand: all-electronics-online.com
SKU: 714630505
Availability: InStock
Rating: 4.3 (116 reviews)

Price:	US $ 3.2-3.5/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Xh-Sct-T16
Rated Input Current:	0-100A
Rated Output:	0.33VAC,Mv or Ma Current Output
Window Size:	16mm
Accuracy:	0.5,1.0 Class
Type:	Current Transformer
Phase:	Single
Application:	Lighting

Product Description

Current sensor split core manufacturer 100A/33.3mA

Rated Current: 100A.
Output: 33.3 mA
Turns: 3000: 1
Accuracy: ± 1% from 10% to 150% of Full Scale Range
Phase angle < 2 maximum at 50% rated current
Snap closing/opening feature.
Shrouded core blades for protection during installation.
Core interleaved at joints for accuracy.
No exposed metal parts on assembled transformer.
Internal precision burden resistor across secondary.
Epoxy encapsulated housing.
Accuracy is measured from 10% to 130% of rated current.
Phase angle is measured at 50% of rated current

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
