| Prod Model: |
JL-16A030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
DC 1.2V-24V |
| Speed: |
Constant Speed |
| Motor: |
DC Gear Motor |
| Od Gearbox: |
16mm |
| Brush: |
Metal Brush/Carbon Brush |
| Power: |
DC Power |
| Shaft: |
O ,D-Cut |
| Torque: |
High Torque |
| Gear: |
Metai/Plastic /Copper Gears |
| Material: |
RoHS Material |
| Application: |
Toys ,Lock ... |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Compound |
| Structure And Working Principle: |
Brush |
| Certification: |
Ce,RoHS |
| Brand: |
Kingly |
Product Description
Product Description:

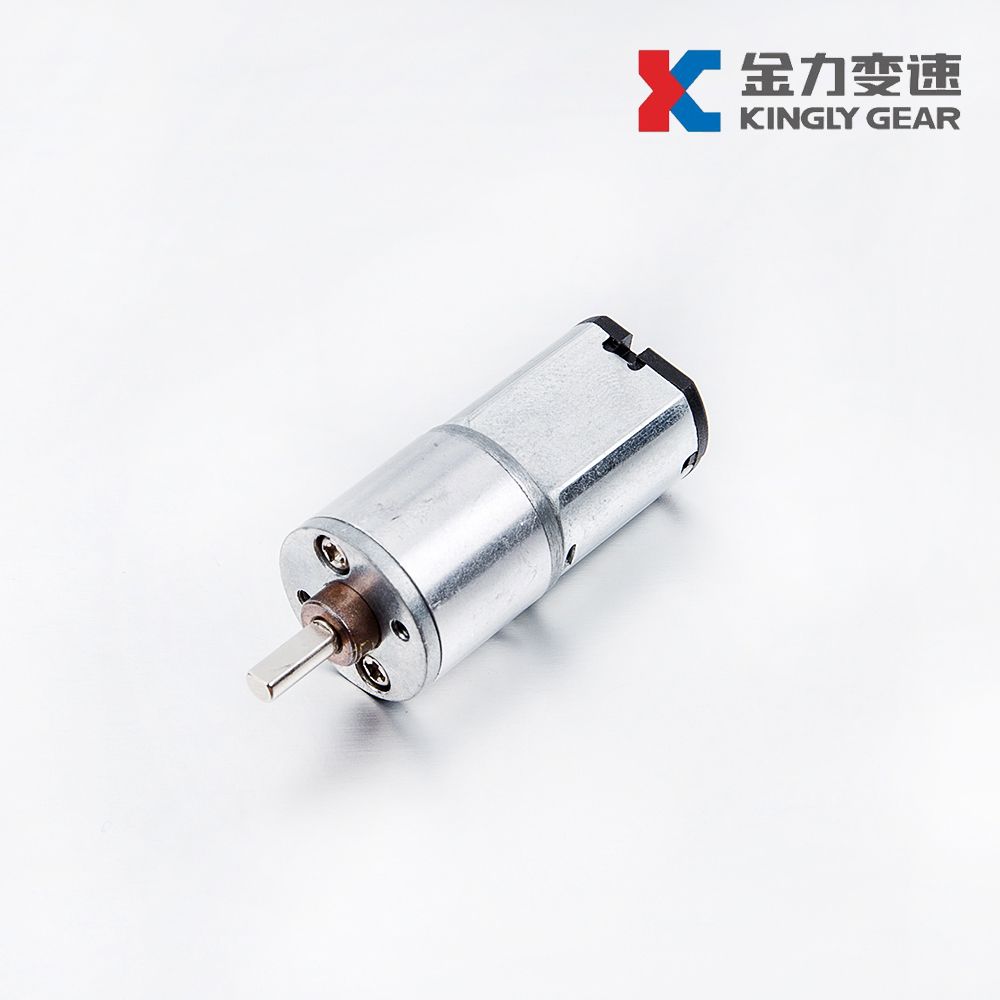

JL-16A030/050 1.2V-24V Mini Gearbox DC Motor
With CE,ROHS,ISO,CCC,UL,TUV ...Certifications
1) Gear Motor Diameter: 16mm
2) Matching DC Motors: JFF-030 Length:18.6mm, JFF-050 Length 26.9mm
3) Shaft diameter: Round 3mm, D cut 2.5mm
4) Motor shaft can be changed, such as round or D cut, length, matched gear.
5) Motor Voltage: 1.2 to 24V DC
6) DC motor speed can be changed.
7) Gearbox raitos:1:13-1:1021
8) Reducer torque less than 0.8kg.cm
9) Geared Motor Applications: Toys and model, Electric Door Lock, solar product, IP CAM,CCTV,Medical Instruments, Beauty care,Automatic play ticket machine, AUTOMATIC TICKETING DEVICE,Robot.
10) We can also design the motor according to client's requirement such as Voltage, Speed and the length of shaft.
11)With CE ,ROSH ,ISO9001:2000
Technical Parameters
| Model | Voltage | No Load | At Maximum Efficiency | Stall |
| V | Speed | Current | Speed | Current | Torque | Output | Torque | Current |
| r/min | A | r/min | A | mN.m | kg.cm | W | mN.m | kg.cm | A |
| JL-16A030-105 | 5 | 100 | 0.05 | 77 | 0.17 | 29.4 | 0.3 | 0.23 | 127 | 1.3 | 0.55 |
| JL-16A050-362 | 6 | 31.5 | 0.10 | 25.0 | 0.32 | 196 | 2.0 | 0.36 | 950 | 9.67 | 1.3 |
| Match Motor | Length of Motor | | |
| JFF-030 | 18.6mm | | |
| JFF-050 | 26.9mm | | |
| Length of Gear | Reduction Ratio | |
| 11mm | 13 | 16 | | |
| 12.5mm | 26 | 32 | 37 | 45 |
| 14mm | 75 | 91 | 105 | 128 |
| 15.5mm | 148 | 182 | 210 | 256 |
| 17mm | 592 | 723 | 825 | 1021 |
Packing & Shipping:1).Packaging Detail: Polyfoam or carton seperator inside, strong export carton box outside
2).Delivery Detail: Within 30 days for first order, 15-25 days for repeat order
Micro DC Gear Motor
Typical Applications:Automatic door-lock,Projector, Robot,Hairdressing equipment
Output Power: Approx 0.07W-120W
Voltage: From 1.5v to 24v
Speed: From 2000rpm to 30000rpm
Torque: From 0.1g. Cm to 500g. Cm
Dia: 6mm to 48mm
-Motor's specification and shaft length can be tailor-made according to customer's requirements.
