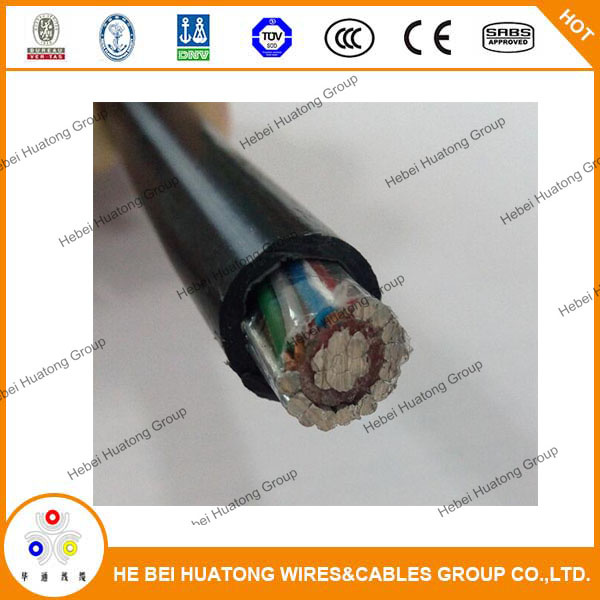

16mm PVC Aluminum Conductor Concentric Neutral Electrical Wire Cable
| Price: |
US $ 1.4-1.5/Meter |
| Min Order: |
100000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Concentric Cable |
| Wire Core Material: |
Aluminum / Copper |
| Size: |
10, 16mm2 Airdac Sne Cable |
| Model: |
Airdac Cne Cable |
| Name And Type: |
Airdac |
| Cores: |
1phase+1 Neutral |
| Poilt: |
as Your Requirement |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Range Of Application: |
Overhead |
| Brand: |
Renda |
Product Description
16mm PVC Aluminum Conductor Concentric Neutral Electrical Wire Cable

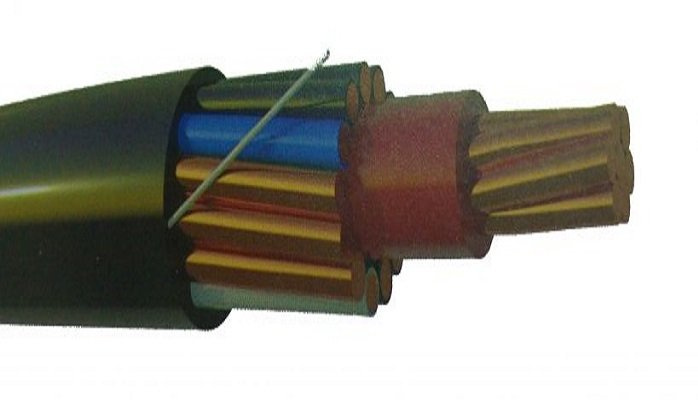

Aerial Service Connection Cable (CNE)
Description:Stranded hard drawn copper phase conductor, XLPE insulated, Polyethylene insulated with bare/neutral earth conductors. Polyethylene sheathed house service cable. Nylon ripcord laid under sheath.
Application:AerialCNE Cable is used for house connections. This cable can only be used for single phase supply. Cable is made to be suspended in the air. Aerial SNE Cable is also suitable for underground general use.
Specifications:CONCENTRIC NEUTRAL & EARTH
SANS 1507-6
Available Sheath Colours:Black
CABLE SIZE
mm² | 10 | 16 |
| Phase Conductor Resistance (0hm/Km) DC @20ºC | 1.89 | 1.19 |
| Phase Conductor Impedance (0hm/km) | 2.34 | 1.47 |
| Phase Conductor Strand size (mm) & No. | 1.35 x 7 | 1.74 x 7 |
| Phase Conductor Insulation Thickness (mm) | 0.7 | 0.7 |
| Phase conductor 0D (mm) | 5.45 | 6.41 |
| Neutral Size (mm²) | 10 | 16 |
| Neutral conductor Strand size (mm) & No. | 1.33 x 7 | 1.67 x 7 |
| Earth size (mm²) | 7.5 | 11 |
| Earth Conductor Strand Size (mm) & No. | 1.78 x 3 | 2.2 x 3 |
| Communication Cores - Solid - OD (mm) & No | 0.8 x 2 | 0.8 x 2 |
| Current Rating (A) | 67 | 89 |
| (In air 30ºC ambient -max Conductor Temperature 90ºC) | | |
| Nominal Sheath Thickness (mm) | 1.4 | 1.6 |
| Approximate Cable OD (mm) | 12 | 14.0 |
| Approximate Cable Mass (Kg/Km) | 319 | 488.0 |

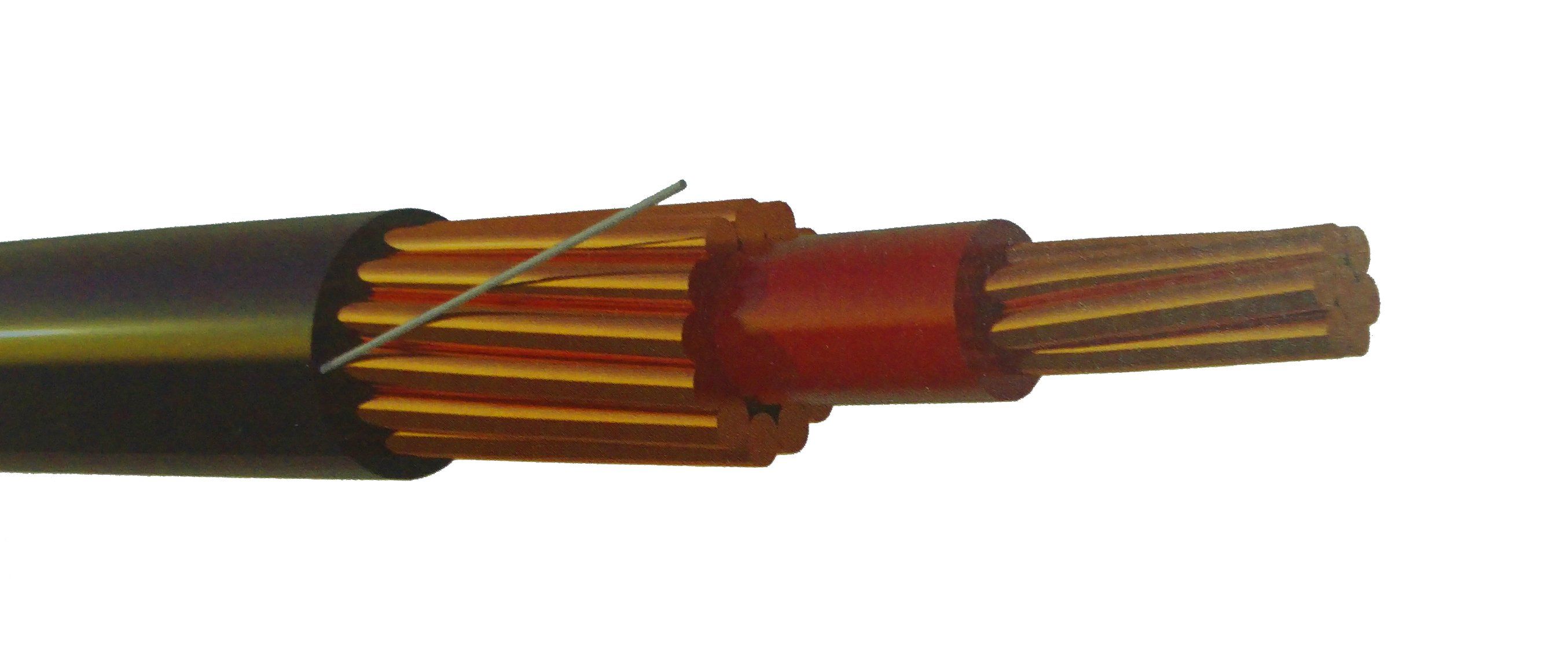

Aerial Service
Description:Stranded hard drawn copper phase conductor, SLPE insulated, Polyethylene insulated neutral with bare earth conductors. Polyethylene sheathed cable. Nylon ripcord laid under sheath.
Application:Aerial SNE Cable is used for house connections. This cable can only be used for single phase supply. Cable is made to be suspended in the air. Aerial SNE Cable is also suitable for underground general use. Split concentric cable suitable for power distribution as an underground or overhead cable.
Specifications:SPLIT NEUTRAL AND EARTH
SANS 1507-6
CONDUCTOR TYPE: Insulated neutral and bare earth conductors
Available Sheath Colours:Black
CABLE SIZE
mm² | 10 | 16 |
| Phase Conductor Resistance (0hm/Km) DC @20ºC | 1.89 | 1.2 |
| Phase Conductor Impedance (0hm/km) | 2.34 | 1.5 |
| Phase Conductor Strand size (mm) & No. | 1.35 x 7 | 1.74 x 7 |
| Phase Conductor Insulation Thickness (mm) | 0.7 | 0.7 |
| Phase conductor 0D (mm) | 5.45 | 6.4 |
| Neutral Size (mm²) | 10 | 16.0 |
| Neutral conductor Strand size (mm) & No. | 1.33 x 7 | 1.67 x 7 |
| Earth size (mm²) | 7.5 | 11.0 |
| Earth Conductor Strand Size (mm) & No. | 1.78 x 3 | 2.2 x 3 |
| Communication Cores - Solid - OD (mm) & No | 0.8 x 2 | 0.8 x 2 |
| Current Rating (A) | 67 | 89.0 |
| (In air 30ºC ambient -max Conductor Temperature 90ºC) | | |
| | | |
| Nominal Sheath Thickness (mm) | 1.4 | 1.6 |
| Approximate Cable OD (mm) | 12 | 14.0 |
| Approximate Cable Mass (Kg/Km) | 319 | 488.0 |
COMPANY INFORMATIONHebei Huatong Wires and Cables Group Co., Ltd.It was established in 1993.
Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 1000 employers in our company, among which more than 150 are technicians.TWO FACTORIES IN CHINA ! ONE FACTORY IN Tanzania!
Yearly Export Amount 200Millon
Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects.
We are top cable manufacture of rubber serious cables . Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC power cables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.UL,TUV,KEMA,CE,BV,PSB,SABS,LLOYD'S,GL,NK,KR,ABS PRODUCTS CERTIFICATIONS
Certificates and"National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate".
Our Service
1.24years production experience and 15 years export experience .
2.Products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL etc
3.OEM service available based on official & legal authorization.
4.Strict quality control system.
5.Rapid delivery and feedback Faster lead time than our competitors.
6.Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8.Professional teamwork service for you actively.
9.Stock available, Free sample is available.
FAQ
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgentto get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
