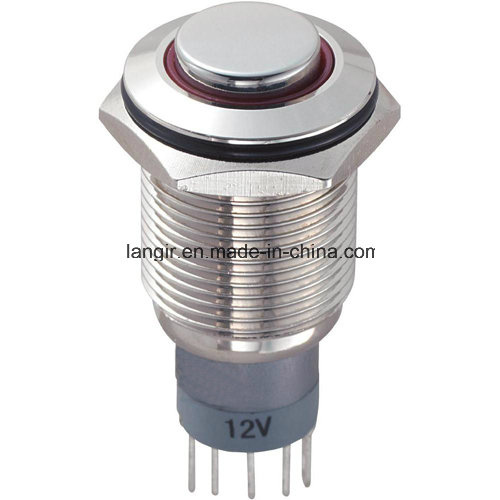

16mm Ring LED Metal Waterproof Push Button Switch

Name: 16mm Ring LED Metal Waterproof Push Button Switch
Brand: all-electronics-online.com
SKU: 777891415
Availability: InStock
Rating: 5 (110 reviews)

Price:	US $ 2.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	L16-H-Z1-R-R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	16mm
Material:	Nickel Plated Brass ,Stainless Steel
Function:	Momentary and Latching
Front:	High Flat Head
LED Color:	White,Yellow,Orange,Red,Blue,Green
LED Voltage:	6V/ 12V/ 24V/ 36V/ 110V/ 230V
Type:	Normal Open
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Brand:	Langir
Certification:	RoHS

Product Description

Distinctive features:
The Anti vandal switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.
Features
Flat/ Concave
Momentary/ Latching
Anti-Vandal IK09/ Sealed IP65
Illuminated and Non-Illuminated
Functions:
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.

Technical Data:

Type		L16-F		L16-F/R		L16-F/D
Illuminated Options		Non-Illuminated		Ring		Dot
Max. Panel Thickness:		0.394″ (10.0mm)
Terminal		Pin(1.8X0.4)
Max. Switch Rating		3A/ 250VAC
Contact Resistance		≤50mΩ
Insulation Resistance		≥1000mΩ
Dielectric Strengh		2000VAC
Operation Temp.		-20°C ~ +55°C
Mechanical Life		1,000,000cycles
Electrical Life		>50,000cycles
Contact Material		Silver Alloy
Torque		5 ~ 14Nm
Operation Pressure		approx. 3 ~ 5N
Protection		IP40, IP65/ IK09
Material	Actuator	Stainless Steel/ Nickel Plated Brass/ Anodized Aluminum
	Body	Stainless Steel/ Nickel Plated Brass/ Anodized Aluminum
	Base	PBT
Color	Type	LED (ratings @ 20mA)
	Color	R-Red	Y- Yellow	O- Orange	G- Green	B- Blue	W- White
	Luminous Intensity (mcd)	160	200	150	520	220	2000
	Forward Volatge	1.8~2.6V			2.8~3.6V
	Illumination Voltage	no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above.
		6V/ 12V/ 24V/ 36V/ 110V/ 230V
	Life	Approx. 40, 000hours

Actuator Options & Illuminated Option

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
