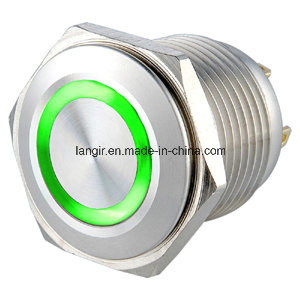

16mm Short Body Momentary 1no Stainless Steel Push Button Switch with Ring LED

Name: 16mm Short Body Momentary 1no Stainless Steel Push Button Switch with Ring LED
Brand: all-electronics-online.com
SKU: 769672155
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	US $ 3.11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

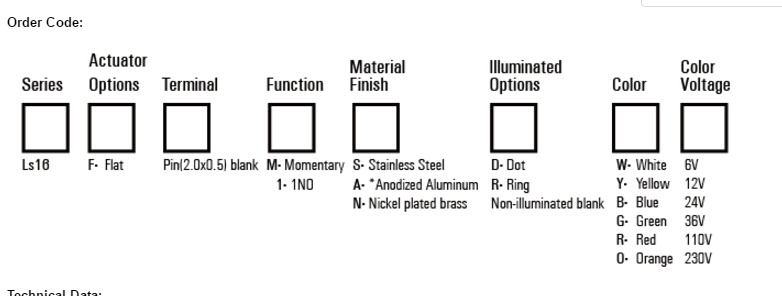

Prod Model:	Ls16-F-M1-S-R-B-12V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Is Customized:	Yes
Size:	16mm
Material:	Stainless Steel
Function:	Momentary 1no
LED Shape:	Ring Illumination
Switch Type:	Short Body
Usage:	Reset Button

Product Description

Ls16 Waterproof Flat Nickel plated brass Dot momentary pushbutton switch with red LED
is_customized                         Yes
Material                                    Nickel plated brass
Function                                   Monentary
LED shape                              Dot illumination

Technical Data:

Type		Ls16-F	Ls16-F/R	Ls16-F/D
Illuminated Options		Non-Illuminated	Ring	Dot

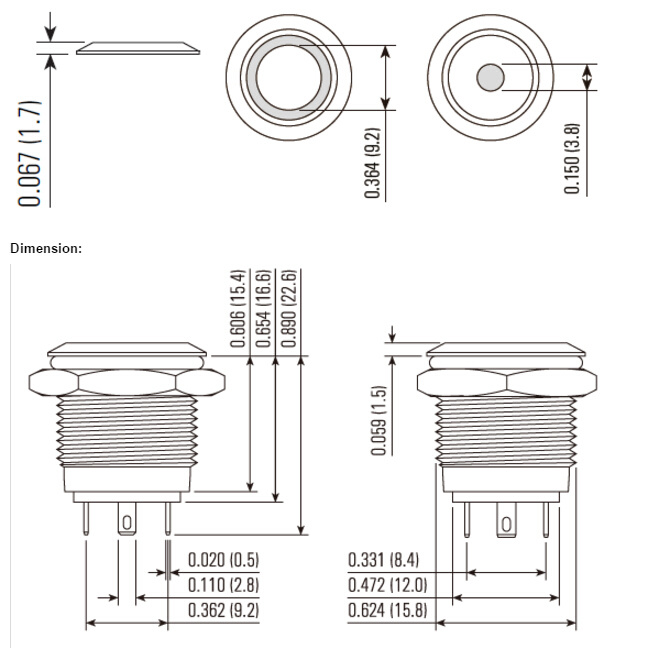

Max. Panel Thickness:		0.394″ (10.0mm)
Terminal		Pin(2.8X0.5)
Max. Switch Rating		2A/ 36VDC
Contact Resistance		≤50mΩ
Insulation Resistance		≥1000mΩ
Dielectric Strengh		2000VAC
Operation Temp.		-20°C ~ +55°C
Mechanical Life		1,000,000cycles
Electrical Life		>50,000cycles
Contact Material		Silver Alloy
Torque		5 ~ 14Nm
Operation Pressure		approx. 3 ~ 5N
Protection		IP65/ IK09
Material	Actuator	Stainless Steel/ Nickel Plated Brass/ Anodized Aluminum
	Body	Stainless Steel/ Nickel Plated Brass/ Anodized Aluminum
	Base	PBT
Color	LED	- -
	Voltage	- -	AC/ DC 1.7V	AC/ DC 2.8V
	Life	Approx. 40, 000hours

Current- limiting Resistance Configuration Table:

Operating Voltage (U)	6V	12V	24V	36V	R= U-Ue/Ie
Current-limiting Resistance (R)	210Ω, 1/4W	510Ω, 1/2W	1.2KΩ, 3/4W	2.2KΩ, 1W
Current-limiting Resistance (R)	160Ω, 1/4W	460Ω, 1/2W	1.2KΩ, 3/4W	2.2KΩ, 2W

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.
