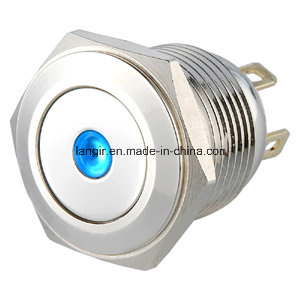

16mm Short Body Resetable Metal LED Push Button Switch

Name: 16mm Short Body Resetable Metal LED Push Button Switch
Brand: all-electronics-online.com
SKU: 769757645
Availability: InStock
Rating: 4.9 (110 reviews)

Price:	US $ 2.46/Piece
Trade Terms:	FOB,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ls16-F-M1-N-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

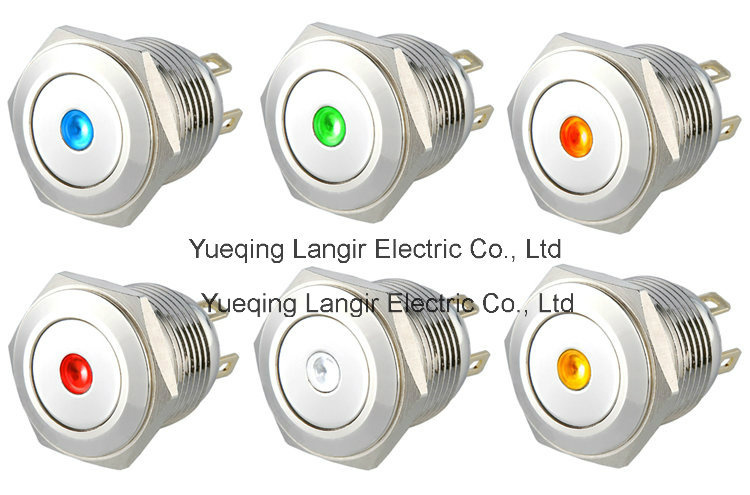

Push Button Switch LED Color:	Red, Blue, Green, White, Yellow, Black, Orange
Push Button Switch LED Voltage:	3V, 6V, 12V, 24V, 110V, 220V
Push Button Switch Material:	Nickel Plated Brass
Size:	16mm Short Body
Push Button Switch IP Grade:	IP65
Switch Brand:	Langir
Usage:	Reset Button
Kind:	Double-pole on-off Switch
Type:	1no/1no1nc/2no2nc/3no3nc
Brand:	Langir
Certification:	RoHS

Product Description

mini waterproof push button switch

Comparison Chart check following table

Push Button Switch Remark:
O=Available
1. Latching for L19A, L19B, L22 & L25
2. 1NO1NC for L19 & L22
3. 1NO1NC and 2NO2NC for L16, L19A & L25
4. 1NO1NC, 2NO2NC and 3NO3NC for L19B

Latching type: When you push, the actuator is on and locked; When you push second, the actuator return to the original position.

Momentary type: When you push the actuator, button is on; After your fingers remove, the actuator returns and is off.

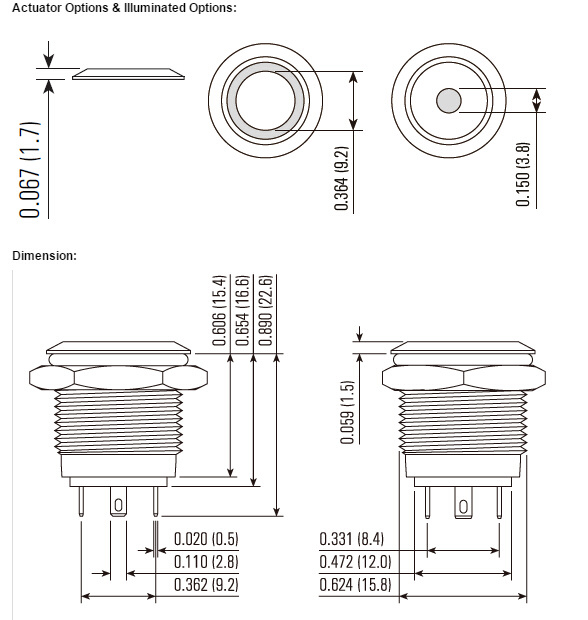

Technical Data:

Type		Ls16-F	Ls16-F/R	Ls16-F/D
Illuminated Options		Non-Illuminated	Ring	Dot
Max. Panel Thickness:		0.394″ (10.0mm)
Terminal		Pin(2.8X0.5)
Max. Switch Rating		2A/ 36VDC
Contact Resistance		≤50mΩ
Insulation Resistance		≥1000mΩ
Dielectric Strengh		2000VAC
Operation Temp.		-20°C ~ +55°C
Mechanical Life		1,000,000cycles
Electrical Life		>50,000cycles
Contact Material		Silver Alloy
Torque		5 ~ 14Nm
Operation Pressure		approx. 3 ~ 5N
Protection		IP65/ IK09
Material	Actuator	Stainless Steel/ Nickel Plated Brass/ Anodized Aluminum
	Body	Stainless Steel/ Nickel Plated Brass/ Anodized Aluminum
	Base	PBT
Color	LED	- -
	Voltage	- -	AC/ DC 1.7V	AC/ DC 2.8V
	Life	Approx. 40, 000hours

Current- limiting Resistance Configuration Table:

Operating Voltage (U)		6V	12V	24V	36V	R= U-Ue/Ie
Current-limiting Resistance (R)	Red, yellow, orange	210Ω, 1/4W	510Ω, 1/2W	1.2KΩ, 3/4W	2.2KΩ, 1W
Current-limiting Resistance (R)	Blue, green, white	160Ω, 1/4W	460Ω, 1/2W	1.2KΩ, 3/4W	2.2KΩ, 2W

Image/Type

Function

Illum. Options

Shape

Connect

Contact

Material

RoHS

IP65

Momentary

Latching

Ring

Dot

Bi-Color

Flat

Hight Flat

Concave

Guarded Concave

Screw

Ls16(16mm)

1NO
1NC

Stainless Steel
Anodized Aluminum

L16(16mm)

1NO1NC
2NO2NC

Stainless Steel
Nikel plated brass
Gold plated brass
Anodized Aluminum

L19(19mm)

1NO1NC
2NO2NC
3NO3NC

Stainless Steel
Anodized Aluminum

L19-KEY (19mm,30mm)

1NO1NC
2NO2NC

Stainless Steel

L22(22mm)

1NO1NC

L25(25mm)

1NO1NC
2NO2NC
