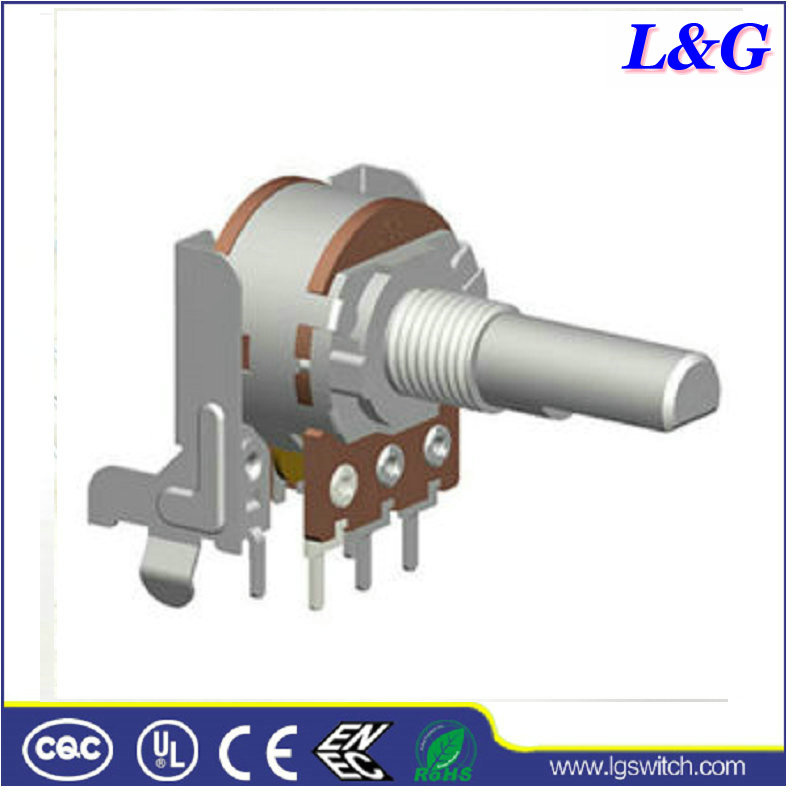

16mm Single Unit with Rotary Switch Rotary Potentiometer

Prod Model:	RP16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotational Torque:	30~250gf.Cm
Push-Pull Strength:	10kgf
Switch Working Torque:	150~450gf.Cm
Maximum Operating Voltages:	150V AC 20V
Rotational Life:	10,000 Cycles Minimum
Switch Power Rating:	1.0A at DC 12V
Resistance:	Variable Resistor
Function For Resistance:	Protective Resistor
Installation:	SMD Resistor
Material:	Metal Film Resistor
Package Type:	Throught Hole
Type:	Rotary Potentiometer
Shape:	Round
Brand:	L&G

Product Description

Mechanical Characteristics:
Total rotational angles: 300° ± 5°
Rotational torque:30~250gf.cm
Rotational stoppers strength: 6Kgf.cm
Push-pull strength: 10Kgf
Shaft wobble: 0.7xL30mm P-P max.
Click Slip Out Force: 50~300gf.cm
Switch Working Angle: 50 ± 10 °
Switch working torque: 150~450gf.cm
Electrical Characteristics:
Total resistance: 500Ω~1MΩ
Total resistance tolerance: ± 20%
Residual resistance: R ≤ 10K 10Ω 10KR ≥ 250K, 0.1% max. of total resistance
Resistance taper: A, B, C, D, E, K, W, RD, M and N
Ratings power: B:0.1W, A, C:0.05W
Maximum operating voltages: 150V AC 20V DC
Slider noise: less than 47mV
Gang error: 3dB max. (-40~0dB)
Insulation resistance: 100MΩ min at 500V DC
Voltage proof: 1 minute at 500V AC
Switch power rating: 1.0A at DC 12V
Switch contact resistance: less than 50m Ω
Rotational life: 10,000 cycles minimum

Sample:

1. Free charge sample: Could provide(less  than 5 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union



Quality Guarantee:

1.Strictly quality control  before leave factory

2. Quality guarantee  within one year



Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control  and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)



Order Guide:


1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER  sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6.  After delivery will inform the tracking number and check the status for clients.

7.   Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
