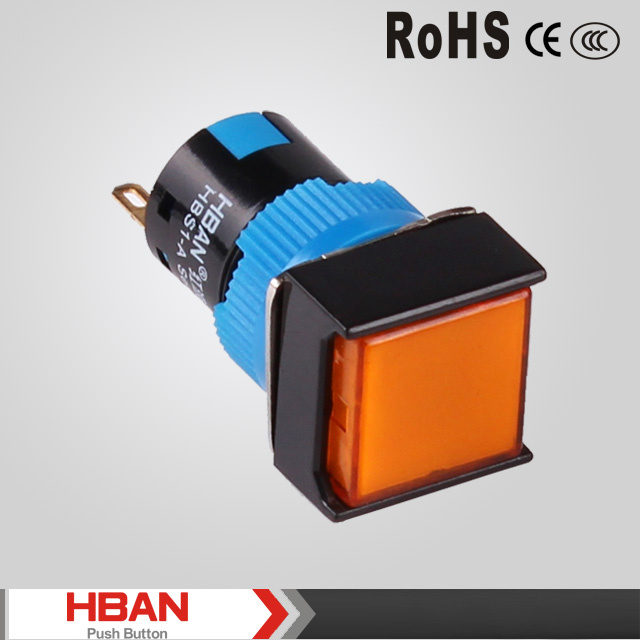

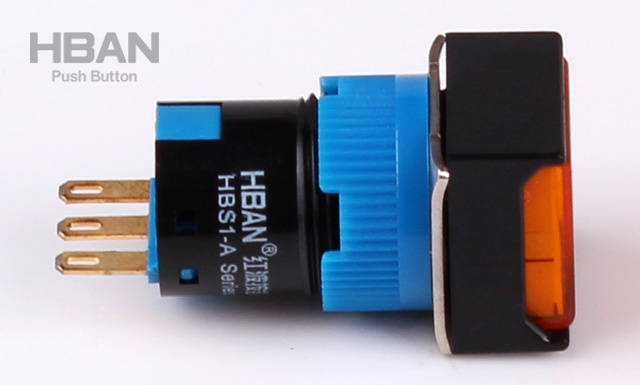

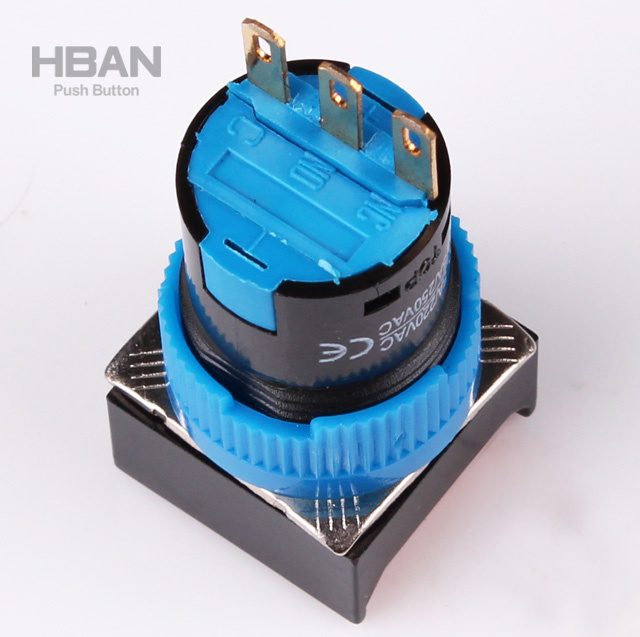

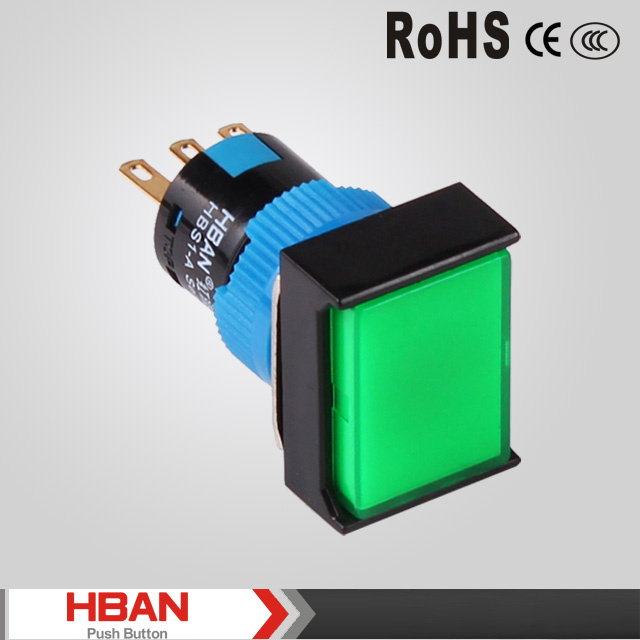

16mm Square Head 1no1nc Waerproof Latching Pushbutton Switch
| Price: |
US $ 0.1-10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
HBS1-AF-11D |
| Mounting Hole Size: |
16mm |
| Rating Value: |
5A/250V AC |
| Head Shape: |
Round/Square/Rectangle |
| Terminal Type: |
Pin Terminal |
| Crust Material: |
Plastic |
| Head Color: |
Red/Green/Blue/White/Orange/Yellow |
| Contact Configuration: |
1no1nc/2nocnc |
| Operation Type: |
Momentary/Latching |
| Protection Degree: |
IP40,IP65 |
| Illuminated Type: |
Head Illuminated |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Type: |
1no1nc,2no2nc |
| Brand: |
Hban |
| Certification: |
Ce,RoHS,ISO9001 |
Product Description
16mm square head 1NO1NC waerproof latching pushbutton switch
Mounting hole size :16mmRating Value :5A/250V AC
Contact Configuration:1NO1NC/2NOCNC
Head shape:Round/Square/Rectangle
Operation Type:Momentary/Latching
Terminal type :Pin terminal
IP Degree:IP40,IP65
| Item NO. | HBS1-AF-11 | HBS1-AF-11Z | HBS1-AF-11 | HBS1-AF-11DZ |
| Front Head Shape | Square,1NO1NC,non-illuminated,Momentary | Square,1NO1NC,non-illuminated,Latching | Square,1NO1NC,illuminated,Momentary | Square,1NO1NC,illuminated,Latching |
| Item NO. | HBS1-AF-22 | HBS1-AY-22Z | HBS1-AF-22 | HBS1-AF-22DZ |
| Front Head Shape | Square,2NO2NC,non-illuminated,Momentary | Square,2NO2NC,non-illuminated,Latching | Square,2NO2NC,illuminated,Momentary | Square,2NO2NC,illuminated,Latching |
| Terminal Type | Pin terminal (2.8x0.5mm) |
| Switch Type | 1NO1NC/2NO2NC |
| Switch Specification | 5A/250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 2000V,AC 50Hz,1 min |
| Operating Temperature | 1000V,AC 50Hz,1 min |
| Shock Resistance | ≥10g |
| Operating Temperature | -25°C ~ +55°C |
| Mechanical Life | 1,000,000 times |
| Electric Life | >30,000 times |
| Operating Stroke | About 3 mm |
| Protection Degree | IP40 ,IP65 |
| Materisl | Contact | Sliver ,Sliver Alloy,Golden-plate silver |
| Lamp Type | AC LED Lamp (Standard) |
| LED Rated Voltage | AC/DC 6V,AC/DC12V,AC/DC/24V,
AC/DC110V,AC/DC220V |
Lamp
Parameters | LED Color | Red,Green,Yellow,Orange,Blue,White |
| Life | About 40,000 hours |
Packing details:
We pack 40 pieces diameter 16mm metal push button switches into 1 foam box to protect them .We supply 1 piece guarantee card with these switches.Then we packed this foam box into a kraft paper box,25boxes will be packed into a carton.About Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push buttonSwitch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.Our products are widely used in machinery, machine tools, electric power,Electronics, production control, medical, banks, ships, automation and other Industries.We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .Tel: 0086-577-62708000 Fax: 0086-577-62708007 Other imformation1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer. 2) over 13 years experience of manufacture and selling 3) lowest price from factory 4) up to 5 years product quality warranty 5) safety payment methods including paypal,western union,T/T,moneygram 6) specially customizing products as per your requests 7) products with CCC CE ROHS UL ISO9001 SGS TUV certification8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight9) providing samples for free befor placing order
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
