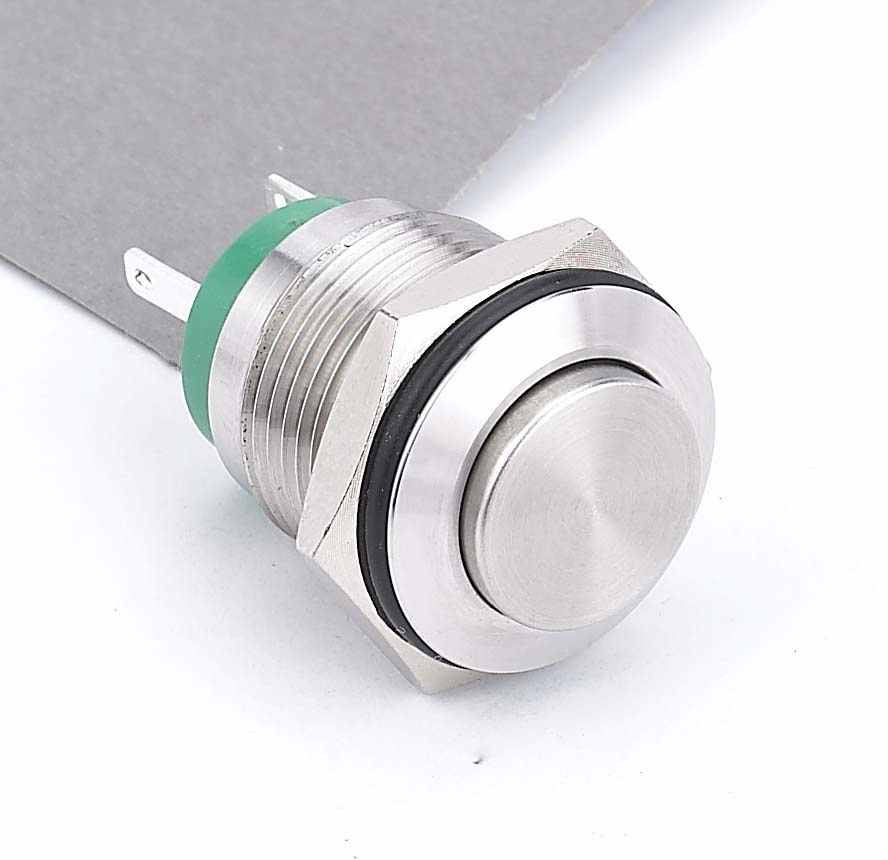

16mm Waterproof High Round Latching on off Metal Push Button Switch, Stainless Steel Push Button Switch

Name: 16mm Waterproof High Round Latching on off Metal Push Button Switch, Stainless Steel Push Button Switch
Brand: all-electronics-online.com
SKU: 791094345
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 1.29-1.93/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ16H-10ZJ
Mounting Hole Size:	16mm
Switch Rating:	2A/36VDC
Contact Configuration:	1no
Operation Type:	Latching
Terminal Type:	Pin Terminal
The Front Shape:	High Round
Crust Material:	Nickel-Plated Brass and Stainless Steel
Protection Degree:	IP65 Ik09
Mechanical Life:	1000000
Electrical Life:	200000
Type:	Normal Open
Usage:	Start Button
Kind:	Single-pole on-off Switch
Contact Type:	Type X Contact
Brand:	Hban
Certification:	RoHS TUV

Product Description

16mm waterproof latching on off metal momentary push button switch,anti-vandal metal push button switches

1.Specification
Mounting hole size:16mm
Switch Rating:2A/36VDC
Contact confirguration:1NO
Operation Type:Latching
The front shape:High round
The crust material:Stainless steel/Nickel-plated Brass

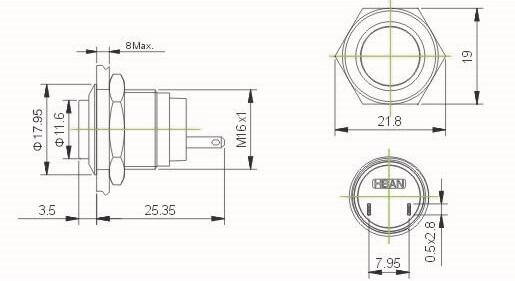

Specification	HBGQ16H-10Z/J
The Front Shape	High Round
Terminal Type	Pin Terminal(2x0.5mm)
Switch Type	Two terminal breakpoints slow moving contact
Switch Specification	2A/36VDC
Contact Resistance	<50mΩ
Insulation resistance	>1000mΩ
Dielectric Strength	2000VAC
Operation Temperature	-20ºC~ 55ºC
Mechanical Life	>1,000,000 times
Elecrical Life	>200,000 times
Panel Thickness	1~6mm
Torque	5-14Nm
Operation Pressure	<6N
Operation Stroke	about 1.5mm
Protection Degree	IP65 IK08
Material
Contact	Silver Alloy
Button	Stainless steel Mirror Surface CD Pattern
Case	Stainless steel or Nickel-plated Brass
Base	PBT

2.Package:

ITEM	PC/BOX	BOX/CTN	PCS/CTN	CBM
HBGQ16H-10Z	40	25	1000	435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching

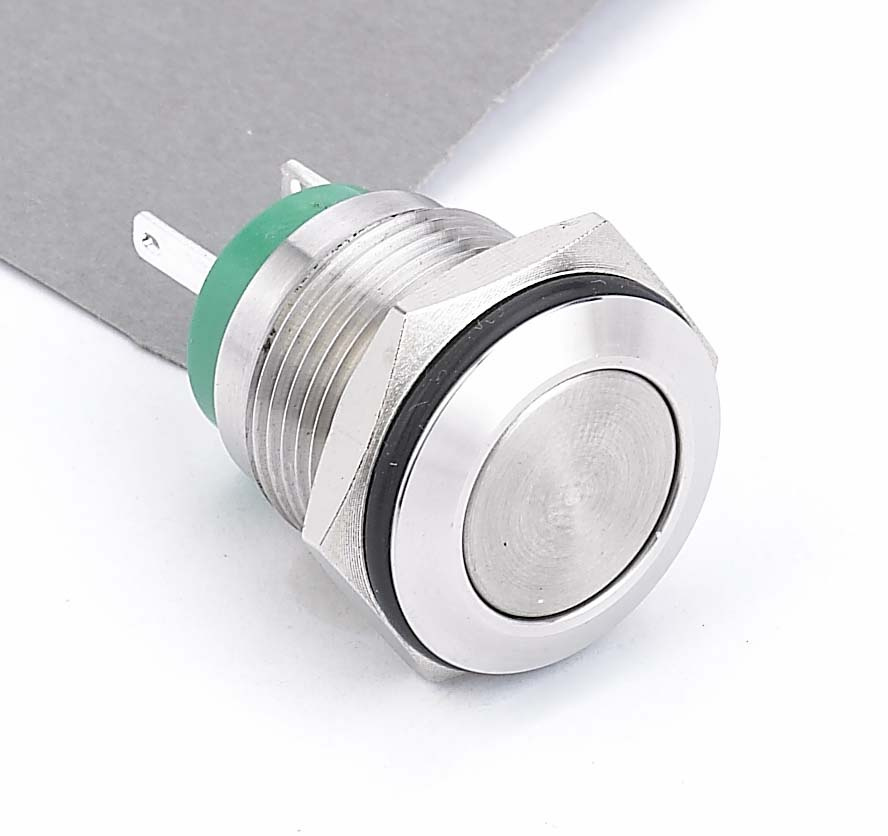

5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP67 IK10

Would you need LED lamp? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White

4.Catalogue:
E-catalogue: http://www.cnyangben.cn/yangben/hban/#
Moblie Catalogue:
