16mm Xh-Sct UL Mini Split Core Current Sensor

Name: 16mm Xh-Sct UL Mini Split Core Current Sensor
Brand: all-electronics-online.com
SKU: 685616505
Availability: InStock
Rating: 4.9 (126 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XH-SCT-T16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Xh-Sct-T16
Ratio:	100A/33.3mA
Wire Leads:	Awm2464 24AWG
Certificates:	ETL ,CE ,RoHS
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

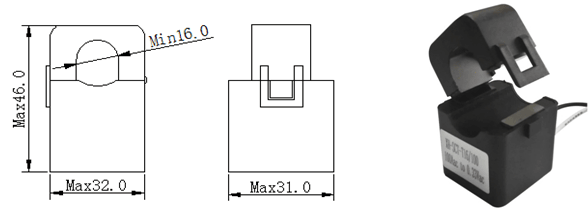

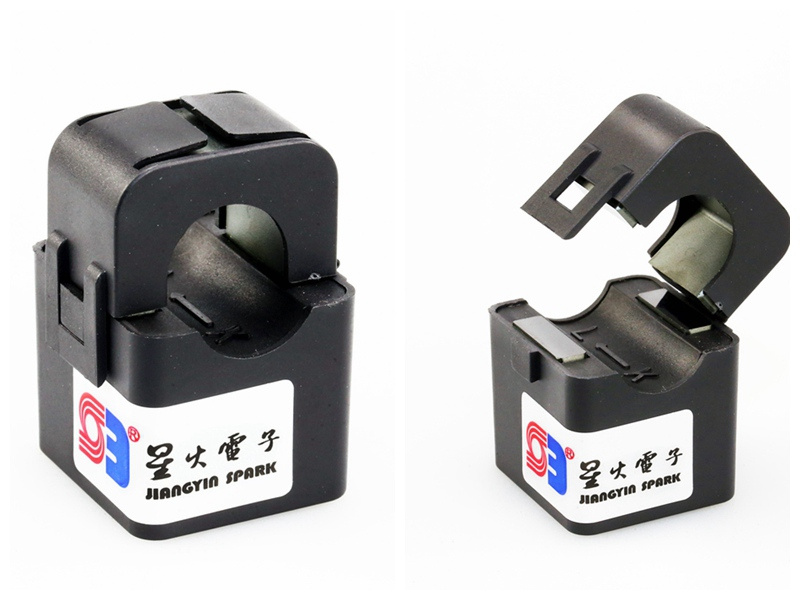

Split-Core AC Current Sensor XH- SCT-T16

φ16mm Opening With 50 To 120 Amp Rating

Description:

Jiangyin Spark XH-SCT-T16 Series split-core current senses AC current from 50 to 120 Amps passing through the center conductor.Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

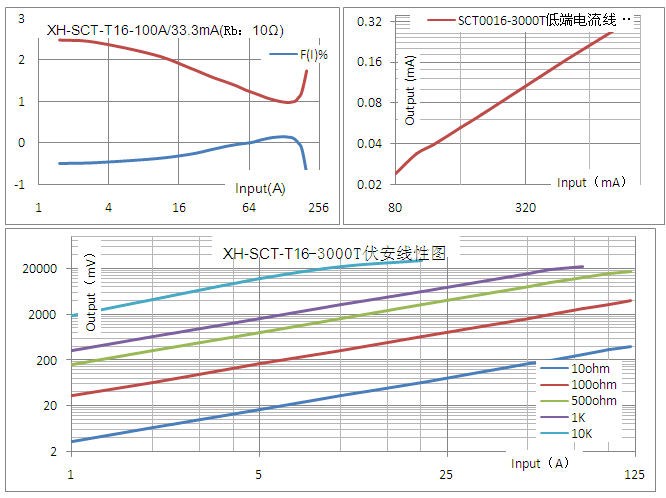

Specifications:
Maximum continuous primary current 5A-120A
Secondary turns: 3000 or as per customer datasheet
Current transformer output: 33.3 mA
Wire leads: 24# AWG AWM2464 24AWG
Frequency: 50/60Hz
Accuracy: 1%
DC resistance: 460ohms @ 20degree Celsius

Applications:
Portable instruments
Sub-metering
Monitor motor load
Our main products:
Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current Transformer

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
