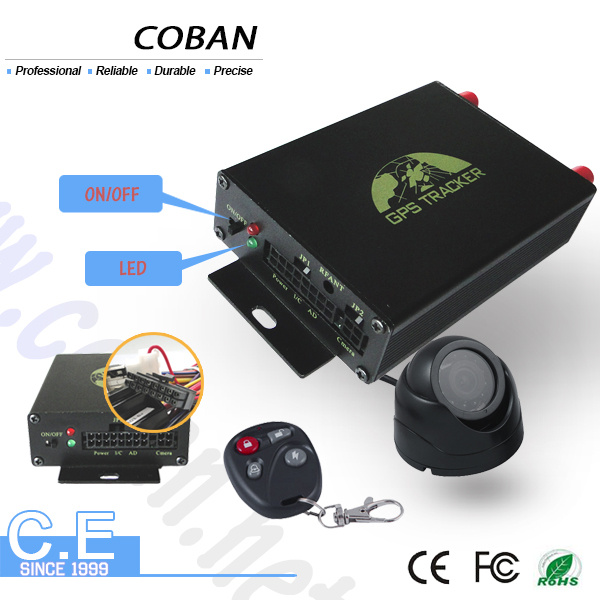

16pin Fleet Management Vehicle GPS Tracker with Camera and RFID

Prod Model:	GPS 105
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Network:	GSM/GPRS
Weight:	170g
Size:	85*71*26mm
Band:	850/900/1800/1900
GPS Accurancy:	5 Meters
Power:	12V/24V
Back Battery:	Rechargeable Li-ion 500amh
Tracking Method:	Online Tracking Platform/Mobile APP/SMS Command
Application:	Vehicle GPS Tracking
Warranty Time:	1 Year
Type:	GPS Tracker
Use:	Automotive
Port Number:	Multiplex Multi-purpose Channel
Model:	Integration Type
Carrier Frequency:	Dual-Frequency
Chip:	Telechips
Operating Principle:	GPS Satellite Positioning and Data Transmit by GSM
Screen Size:	No Screen GPS Tracker
Brand:	Coban
Certification:	Ce FCC ISO

Product Description

16pin fleet management Vehicle GPS Tracker with Camera and RFID

 GPS-105 tracking unit is a device that uses the Global Positioning System (GPS) to determine the precise location of a vehicle to which it is attached and to record the position of the vehicle at regular intervals.The recorded location data can be stored within the tracking unit, or it can be transmitted to a central location database, or internet-connected computer, using a cellular (GPRS or SMS) or satellite modem embedded in the unit.This allows the vehicles location to be displayed against a map backdrop either in real time or when analyzing the track.

1. Auto photograph
2. Auto tracking continuously
3. Auto store the tracking information with SD card
4. Support data upload to monitor platform
5, Geo-fence
6. Real-time tracking online
7. Support free PC platform and web-server
8. SOS panic

Basic Function:
1. Fuel detection alarm when the fuel decrease by 8% in three minutes.
2. Temperature detection alarm. You can set up a temperature to the tracker, once exceeded, it will send SMS alarm to your cell phone. The available temperature range is from -050C to +125C.
3. View photos on cell phone by sending SMS command and then you will get HTTP links to see photo.
4. Alarms in GSM Blind Area. The siren will sound in Non quite mode if DOOR/SHOCK SENSOR/ACC/OIL alarms are triggered
5. Power off alarm when the power be cut off or the voltage is 0V
6. ACC alarm, Door alarm, Shock sensor alarm when at ARM state.
7. Power -cut and restore alarm by SMS
8. Oil-cut and restore alarm by SMS
9. Anti-theft for 24 hours a day
10. SOS panic alarm
11. Voice Surveillance. When the tracker stay in "monitor" mode, you can call the tracker and hear the voice of remote target.
12. Geo-fence alarm. Set up a geo-fence for the tracker to restrict its movements within a district.
13. Movement alarm. (default distance is 200m)
14. Overspeed alarm. To restrict the speed of the tracker and control it well
15. Low battery alarm. It will remind you to charge the unit in time.
16. Single Locating by calling the tracker
17. Auto Track by sending SMS commands
18. Location based service (LBS), when there is no GPS signal, it will be located by LBS.
19. Get accurate street address by sending SMS "address+password".
20. SMS and GPRS two modes switch freely as you like
21. Setting local time of the unit by SMS

Optional Accessories:
Shock sensor;
Alarm siren;
Remote controller
Camera;
Fuel sensor;
RFID

package content :
1 x GPS unit
1 X GPS Antenna
1 X GSM Antenna
1 X MIC
1 x Harness
1 X Relay(12V)
1 X CD
1 X Manual
1 X Package Box

ontent	specifications
DIM.	92*71*26mm
Weight	120g
Network	GSM/GPRS
Band	850/900/1800/1900Mhz
GPS Sensitivity	-159dBm
GPS Accuracy	5m
GPS Start time	Cold status  45s Warm status  35s  Hot status  1s
Voltage of car power system	12 V -24V
Backup battery	Chargeable 3.7V500mAh Polymer Li-Battery
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +65°C
Humidity	5%--95% non-condensing

Warranty:
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.

Applications:
Used widely for vehicle and other moving objects tracking. Real-Time Vehicle Tracking Solutions For Business

1)Live fleet tracking systems: Engineered and tested to meet the most stringent fleet management applications, our GPS locators allow businesses to view company vehicles in real-time while also giving fleet managers lifetime access to historical GPS tracking data! Providing comprehensive reports that break down mileage driven, speeds driven, travel direction, start/stop data and more, users can easily manage a small or large number of company vehicles all through our user-friendly, online mapping system.

2)Boost employee & vehicle efficiency: By utilizing a fleet management plan that calls upon GPS tracking devices, businesses large or small with company vehicles can evaluate employee driving activity, accurately document mileage and eliminate driving behaviors such as excessive vehicle idling that can hurt automotive maintenance, customer service and company profit.

3)Auto theft security: Vehicle locator systems can protect all of your companies mobile assets. Easy to set geo-fences will allow businesses to create safe zones that will send text message notifications if a vehicle moves outside the programmed safety zones. Don't let your business operations be slowed down by theft! With GPS trackers securing your company vehicles, automobile theft will be a thing of the past!
