Product Description

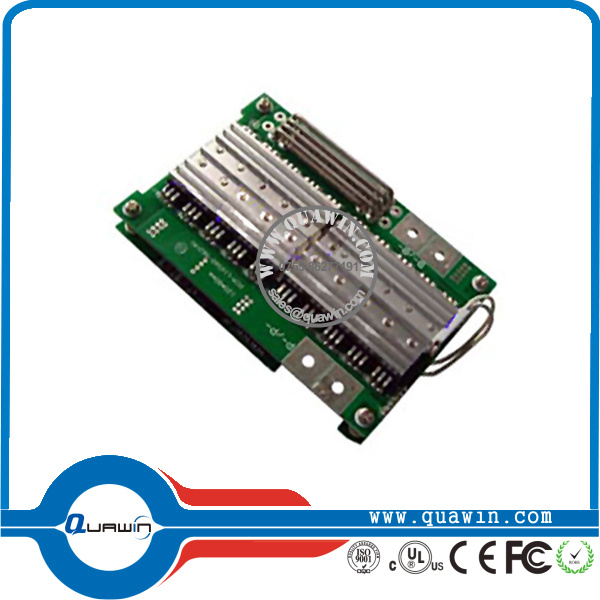

Protection Circuit Module For 16S Li-ion/Li-polymer/LiFePO4 Battery Pack PCM-L16S60-562(16S)| No. | Test item | Criterion |
| 1 | Voltage | Charging voltage |
CC/CV: Li-ion/Li-polymer (4.2V /cell), LiFePO4(3.6V/cell) |
| Balance voltage for single cell | Li-ion: 4.20 V±0.025V, LiFePO4:3.60V±0.025V |
| 2 | Current | Balance current for single cell | 0~100mA |
| Current consumption for single cell | ≤20μA |
| Maximal continuous charging and discharging current | 60A |
| 3 | Over-charge Protection | Over charge detection voltage | 3.8~4.4V(can adjust) |
| Over charge detection delay time | 0.5~2.5S |
| Over charge release voltage | 3.8~4.4V(can adjust) |
| 4 | Over-discharge Protection | Over discharge detection voltage | 1.9~3.1V(can adjust) |
| Over discharge detection delay time | 50~300mS |
| Over discharge release voltage | 1.9~3.1V(can adjust) |
| 5 | Over-Current Protection | Over current detection voltage | 0.6V |
| Over current detection current | 150~1000A |
| Detection delay time | 1~50ms |
| Release condition | Cut load |
| 6 | Short Protection | Detection condition | Exterior short circuit |
| Detection delay time | 200-500us |
| Release condition | Cut load |
| 7 | Resistance | Protection circuitry(B- to P-) | ≤20mΩ |
| 8 | Temperature | Operating temperature range | -40~+85°C |
| Storage temperature range | -40~+125°C |
| 9 | Size | | L120*W80*T25mm |
Product Advantages:1). Green product
2). Long standby time
3). One year warranty
4). Excellent safety performance
5). Excellent storage performance and low self-discharge rate
6). Short circuit testing passed
7). Overcharge testing passed
8). Over discharge testing passed
9). 150C thermal shock test passed
10).1.2m drop testing passed
Spotlight:1).Provide both single cells and battery packs
2).100% inspection before delivery
3).Inspects inner resistance,discharge platform and self-discharge
4). manufacturer of 18650 lithium ion battery,lithium polymer battery etc.
5).tablished quality control systems under ISO9001
6).stomized packs, tags,labels,plugs,connectors,over current protection,
temperature cont8.l protection are available
