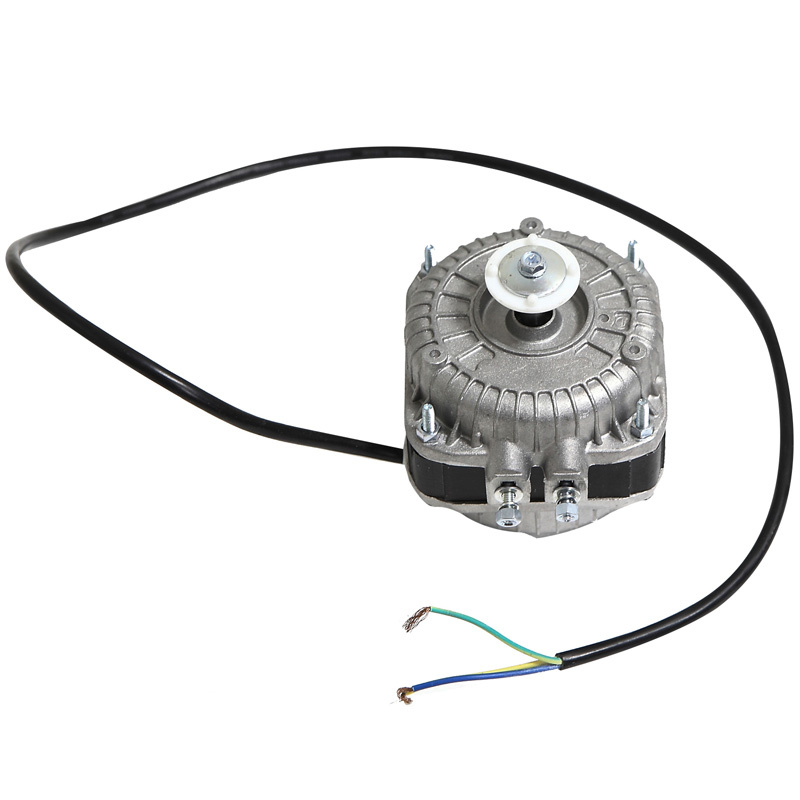

16W Shaded Pole Refrigeration Fan Motor

Name: 16W Shaded Pole Refrigeration Fan Motor
Brand: all-electronics-online.com
SKU: 697329902
Availability: InStock
Rating: 4.8 (128 reviews)

Price:	US $ 5.5/Piece
Trade Terms:	CFR
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	16w
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	220V/110V
Power:	5W,7W,10W,16W,25W,34W
Frequency:	50/60Hz
Certificate:	CE, RoHS, UL
Application:	Household Appliances
Operating Speed:	Low Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Species:	Single Phrase
Brand:	Retekool

Product Description

YJF Series Refrigerator Fan Motors, Shaded Pole Motors
Motor, fan motor, refrigerator motor, refrigeration parts for freezers.

Voltage(v): 110/220
Frequency(Hz): 50/60
Prm: 1300/1550
Rotation: CW/CCW.

MODEL	OUTPUT	FAN SIZE
	(W)	(MM)
YJF203	3W	154
YJF205	5W	170/200
YJF207	7W	200/230
YJF310	10W	250
YJF316	16W	300
YJF318	18W	300
YJF325	25W	300
YJF334	34W	300

YZF series fan motor confrim to CCC ,CE,TUV ,UL,CSA standard ,with high efficiency ,good proformance,energy saving , lowest noise ,high starting torque ,dustproof , anticorrosion ,long service time .
Output power : during 5W to 34W
Fan blade diameter : 150mm ( 6") ,170mm( 7") ,200mm ( 8"),230mm ( 9") ,250mm(10") ,300mm (12") .
Bracket height : 55mm,72mm,84mm,109mm
Direction of rotation : CW or CCW ( view from shaft end )
Bearing : Sleeve bearing (standard) or Ball bearing on request
Life expectancy : over 30000hours
Insulation : Class B . Class E and F on request
Direction of rotation: CW or CCW
Motor protection: Impedance / thermal protected
UL listed, TUV approved and CE certificated
Fan blade , bracket , range of Guards and Shrouds are available
Direction of airflow : Blowing or Sucking
Voltage: 110-120V/60Hz , 220-240V,400v/50hz , 400v
