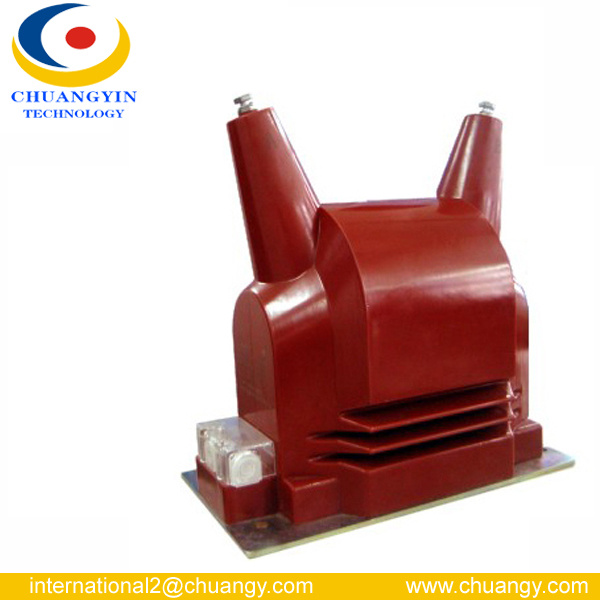

JDZ-17.5(24) Voltage transformer
Description

JDZ-17.5(24) voltage transformer , epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5 kV (Up to 24kV).
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.

Main technical parameter
1. Installation site: indoor
2. Standard accords with IEC 60044-2.2003 .
3. Other technical parameter pls see as follow:

Type	Rated primary voltage(kV)	Rated secondary voltage(kV)	Accuracy class or accuracy classes combination	Rated output (VA)	Thermal limiting current(VA)	Rated insulation level
JDZ-17.5	13.8 15	0.1 0.11	0.2	25	600	17.5/38/95
			0.5	50
			1	150
		0.1/0.1 0.11/0.11	0.2/0.2	15/15	300
JDZ-24	20 22		0.2/0.5	15/30		24/50/12524/65/125
		0.1/0.22 0.11/0.22	0.2/6P(3P)	15/600	600
			0.5/6P(3P)	25/600

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

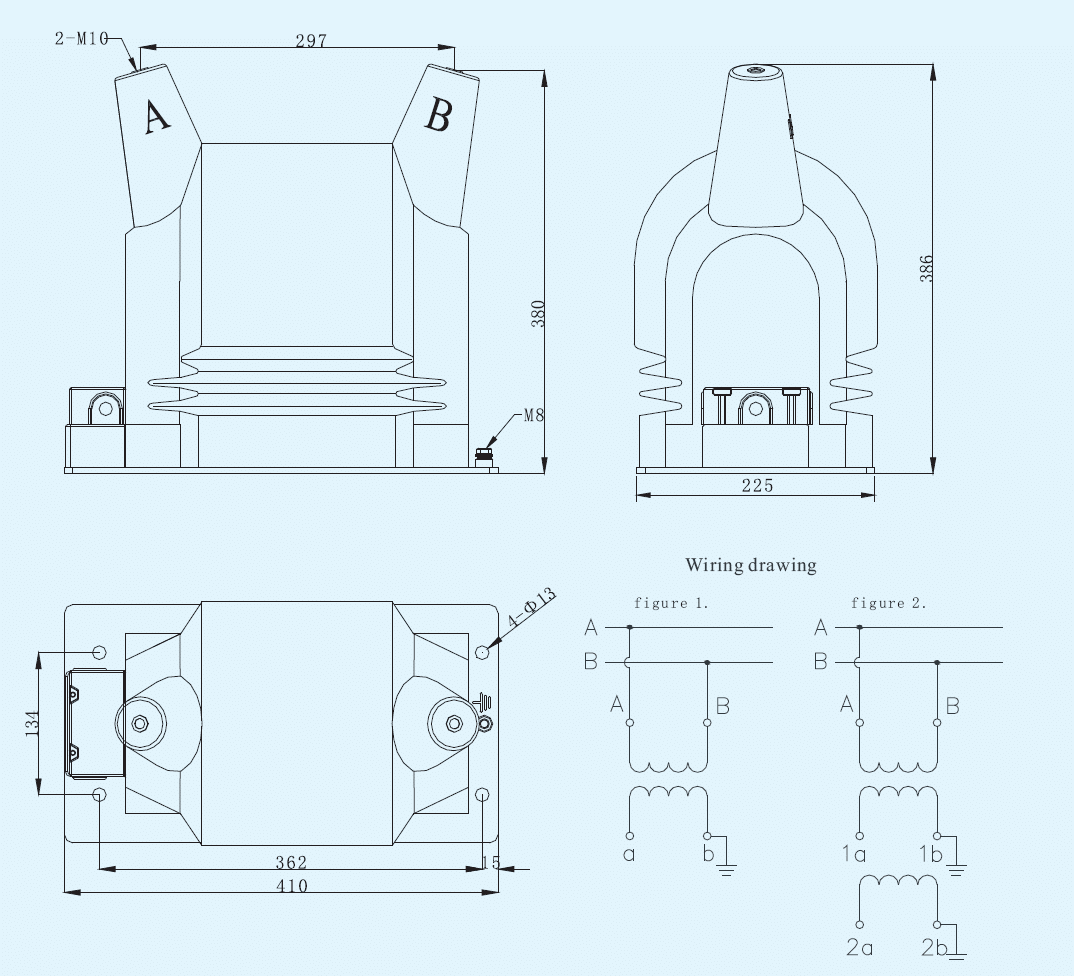

Outline drawing
