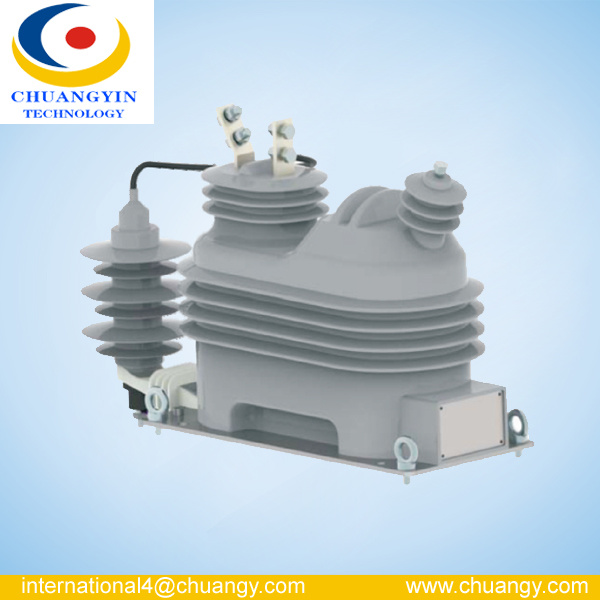

17.5kv Outdoor Combined Transformer Single-Phase Epoxy Resin Type

Name: 17.5kv Outdoor Combined Transformer Single-Phase Epoxy Resin Type
Brand: all-electronics-online.com
SKU: 788652195
Availability: InStock
Rating: 4.3 (64 reviews)

Price:	US $ 420-440/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JLDZXW1-17.5F-002
Current Transformer:	CT
Epoxy Resin:	17.5¬24
24kv:	Outdoor
12kv:	25-20k Hz 45-600Hz
China:	Factory
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

LZZW3-12 CURRENT TRANSFORMER

12kV Outdoor Single-Phase Epoxy Resin Type


Technical Data
1. Rated insulation level:          12/42/75 kV(GB)or 17.5/38/95 (IEC)
2. Rated frequency: 50/60Hz
3. Installation site: Outdoor
4. Technical standard: IEC 61869-1:2007, IEC 61869-3:2011
GB 20840.1-2010, GB 20840.3-2013,

Main technical parameter
Rated frequency: 60Hz:
Rated insulation level: 17.5/38/95kV

Type	Rated Voltage ratio(V)	Accuracy class	Rated output (VA)	Rated current ratio(A)	Accuracy class	Rated output (VA)
JLDZXW1-17.5F	12470/√3/120 12470/√3/110 12470/√3/100	0.5	15	5-10/5	0.5S	12.5
				10-20/5
				15-30/5

				200-400
				300-600
				400-800
				500-1000
				600-1200

Note:Upon request we are glad to offer transformers according to other technical specs.

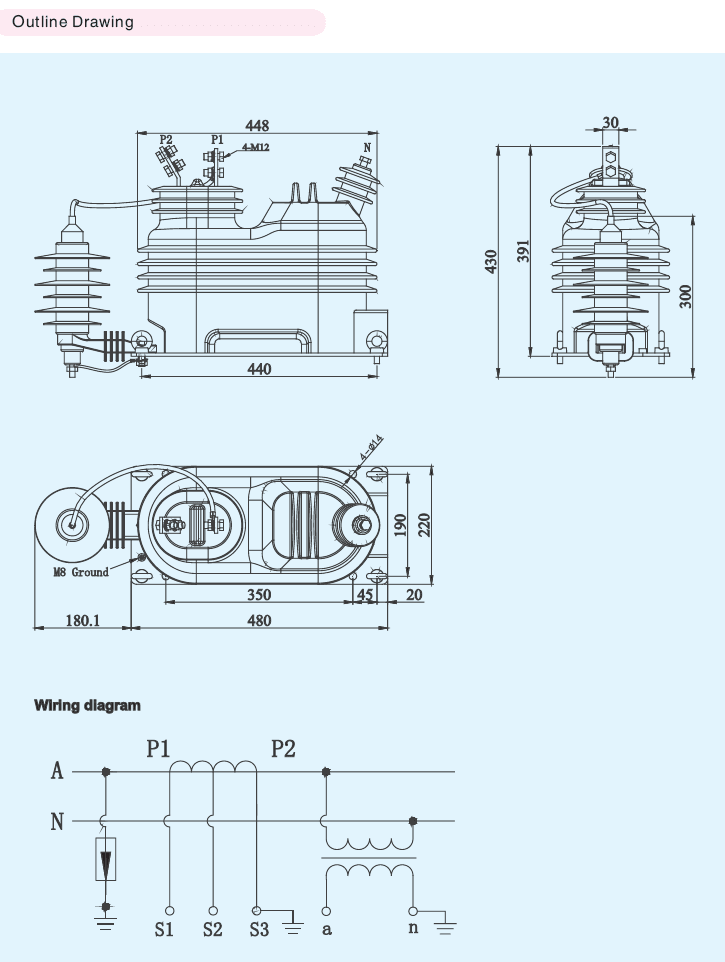

Outline Drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
