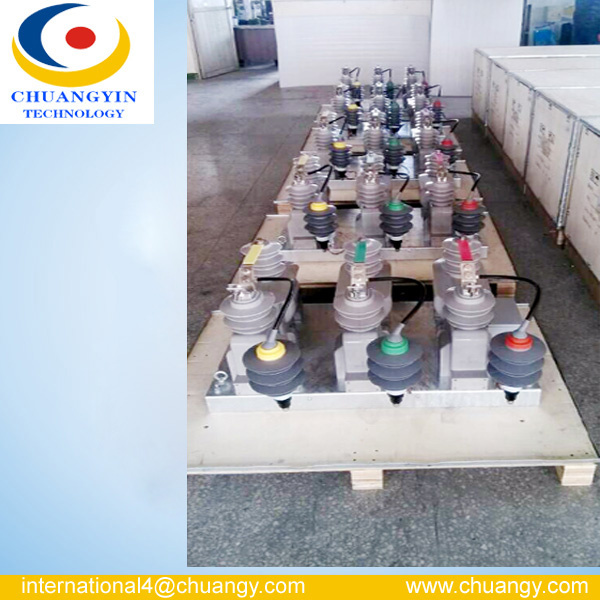

17.5kv Outdoor Combined Transformer Three-Phase Epoxy Resin Type

Name: 17.5kv Outdoor Combined Transformer Three-Phase Epoxy Resin Type
Brand: all-electronics-online.com
SKU: 788651695
Availability: InStock
Rating: 4.8 (102 reviews)

Price:	US $ 1068-1100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JLSZXW5-17.5F-002
Current Transformer:	CT
Epoxy Resin:	17.5¬24
24kv:	Outdoor
12kv:	25-20k Hz 45-600Hz
China:	Factory
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

JLSZXW5-17.5F VOLTAGE TRANSFORMER
17.5kV Outdoor Single-Phase Epoxy Resin Type

Technical Data

1. Installation site                      Outdoor
2. Rated Frequency                    50/60Hz
3. Burden power factor                 CosΦ=0.8(lagging)
4. Technical standard accords with     IEC 61869-1:2007,IEC 61869-2:2012, IEC 61869-3:2011

Specification(Voltage transformer)

Type	Rated primary Voltage(kV)	Rated secondary Voltage(kV)	Accuracy classes combination	Rated output(VA)	Thermal limiting Output (VA)	Rated Insulation level (kV)
JLSZXW5-117.5F	10 11 12.47	0.10 0.11 0.12	0.2	25	800	17.5/38/95(IEC)
			0.5	50
			1	80

Specification(Current transformer)

Rated transformation ratio(A)	Accuracy classes combination	Rated output(VA)
		0.2(S)	0.2	0.5S	0.5
10/5 ... 300/5A	0.2S,0.2,0.5S,0.5	10	10	15	15
400/5A
600/5A
800/5A
1000/5A

Note:Upon request we are glad to offer transformers according to other technical specs.

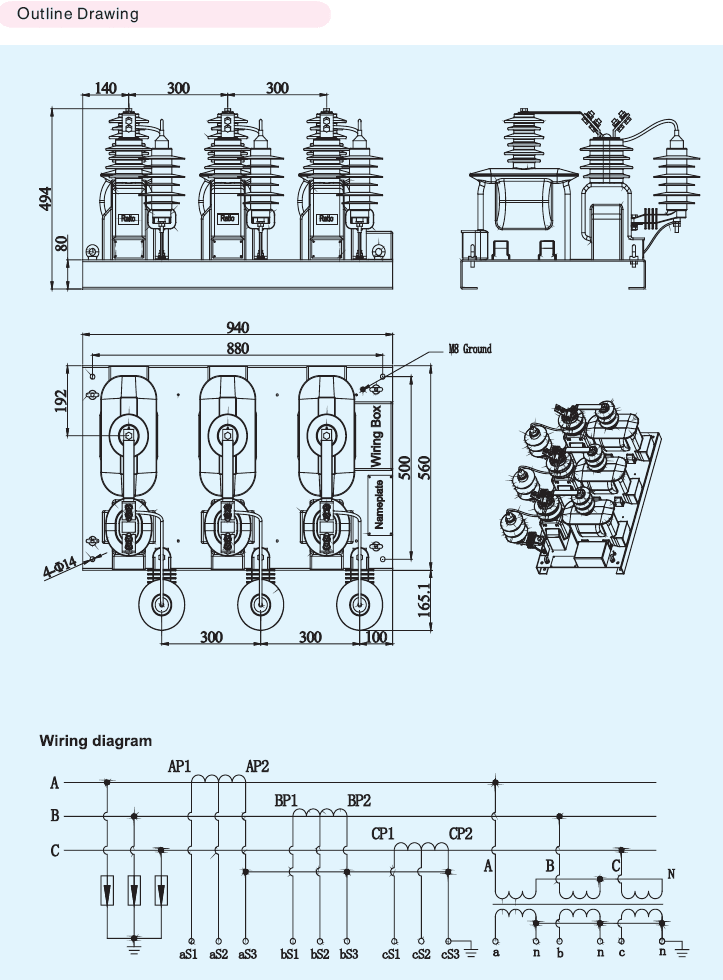

Ouuline Drawing

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.

www.chuangy.com
